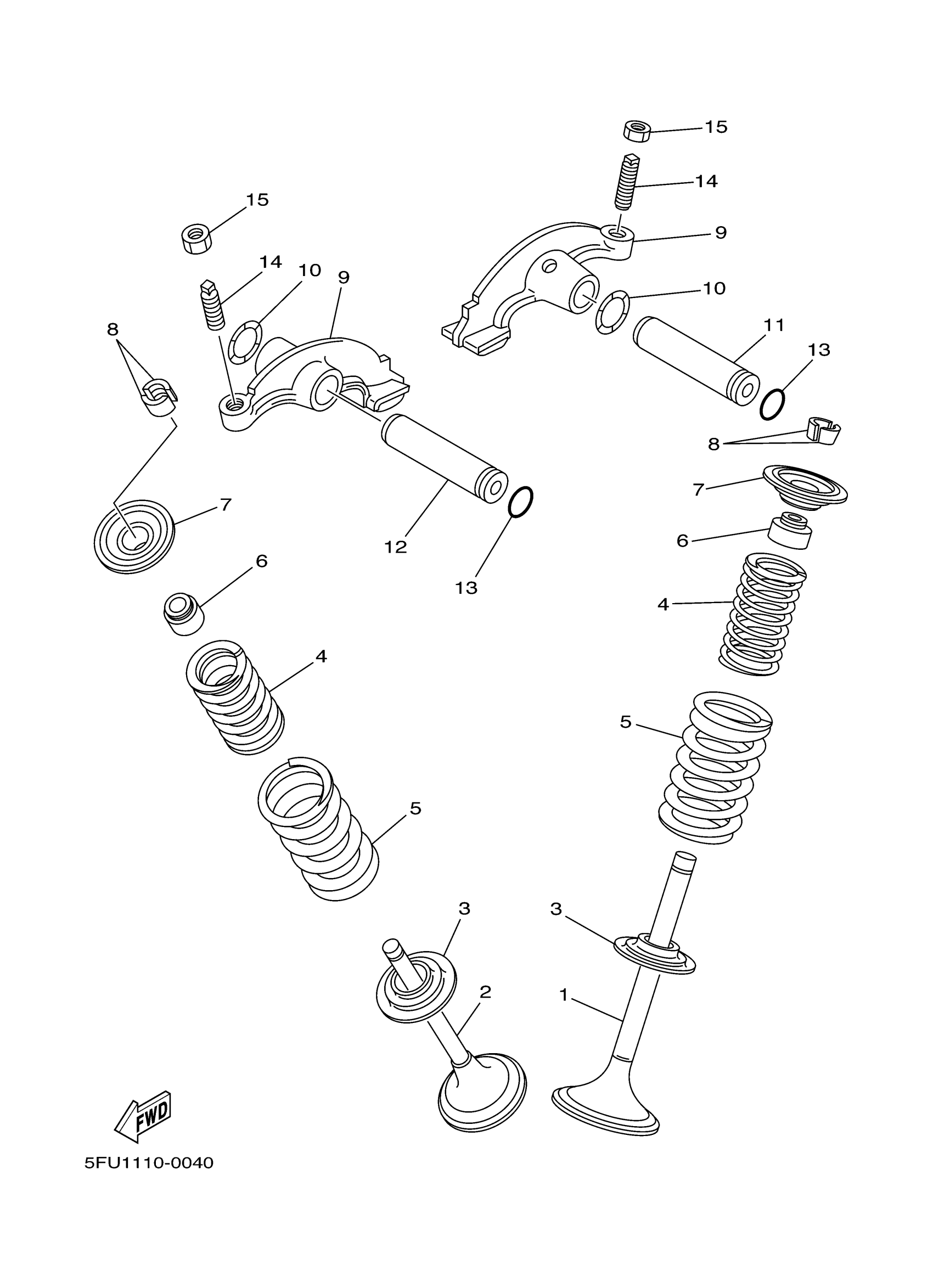

Yamaha YFM400MC (BIG BEAR 2WD) 5GW2 2000 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

1UY-12111-01-00

$65.20

2

VALVE, EXHAUST

1UY-12121-01-00

$76.31

3

SEAT, VALVE SPRING

3Y1-12116-00-00

$13.33

4

SPRING, VALVE INNER

22U-12113-00-00

Unavailable

5

SPRING, VALVE OUTER

1UY-12114-01-00

$20.00

6

SEAL, VALVE STEM 2

M01-12129-00-00

$11.36

7

RETAINER, VALVE SPRING

3Y1-12117-01-00

$14.07

8

LOCK, VALVE SPRING

1J7-12118-00-00

$5.99

9

ARM, VALVE ROCKER(4SHK)

99999-03218-00

$81.64

10

WASHER, WAVE

90206-12001-00

$3.79

11

SHAFT, ROCKER

3Y1-12156-00-00

$59.41

12

SHAFT, ROCKER

3Y1-12156-00-00

$59.41

13

O-RING (1J7)

93210-09350-00

$5.42

14

SCREW, VALVE ADJUSTING

31G-12159-02-00

$7.96

15

NUT, LOCK

31G-12158-00-00

$5.37
