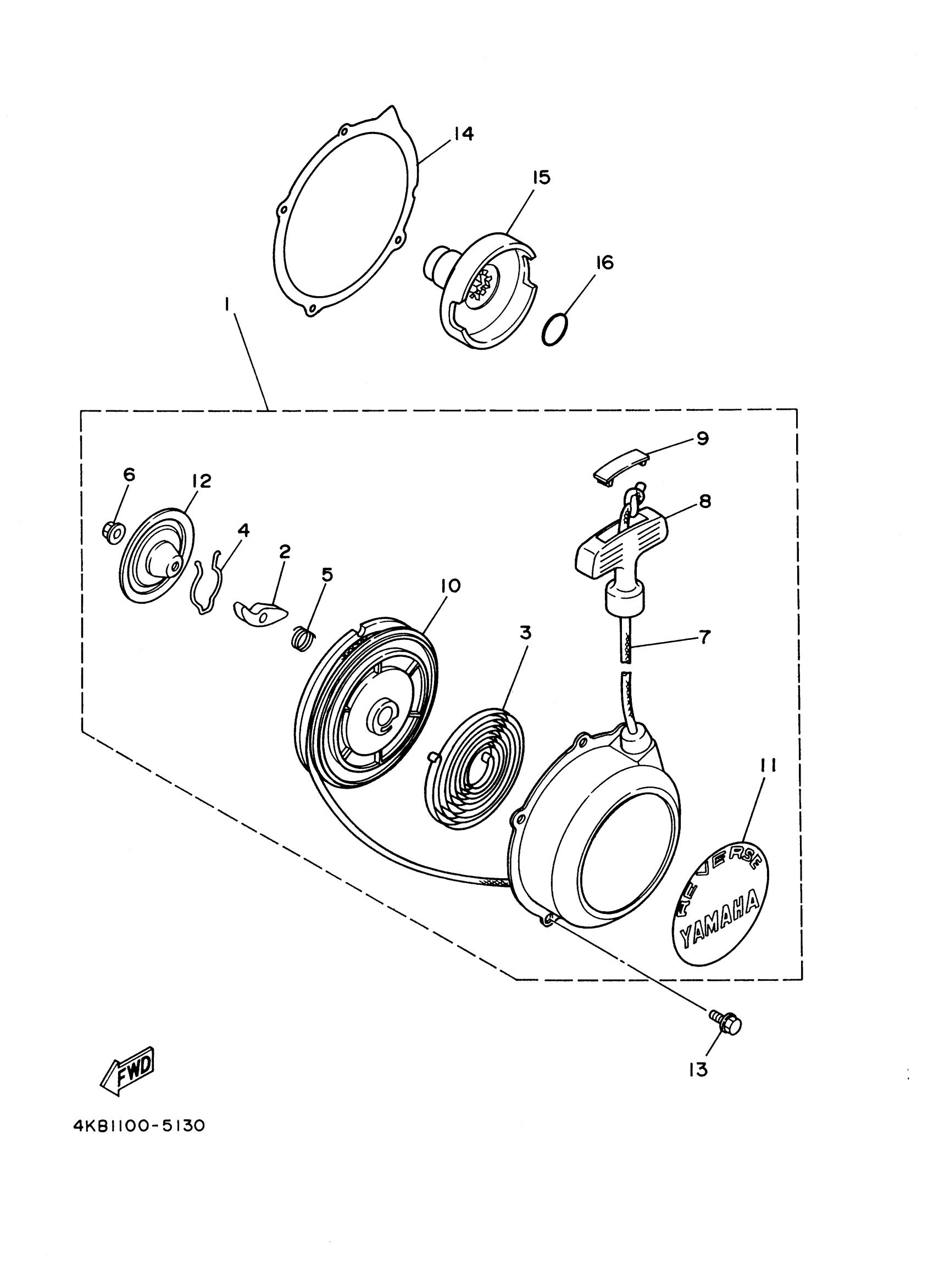

Yamaha YFM400MC (BIG BEAR 2WD) 5GW2 2000 STARTER Diagram

Description

Price

STARTER ASSY

1UY-15710-20-00

Unavailable

PAWL, DRIVE

21V-15741-00-00

$23.99

SPRING, STARTER

21V-15713-00-00

$25.99

SPRING, DRIVE PLATE

21V-15715-00-00

$30.99

SPRING

21V-15767-00-00

$7.99

NUT, FLANGE

95702-06500-00

$2.39

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

HANDLE, STARTER

3X3-15755-00-00

$29.99

CAP, KNOB

21V-15779-00-00

$7.99

DRUM, SHEAVE

24W-15714-00-00

$57.99

EMBLEM

5GH-15443-01-00

Unavailable

PLATE, DRIVE

21V-15716-00-00

$27.99

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

GASKET

3GD-15699-00-00

$25.99

PULLEY, STARTER

1UY-15723-00-00

$126.99

O-RING (538)

93210-16290-00

Unavailable
