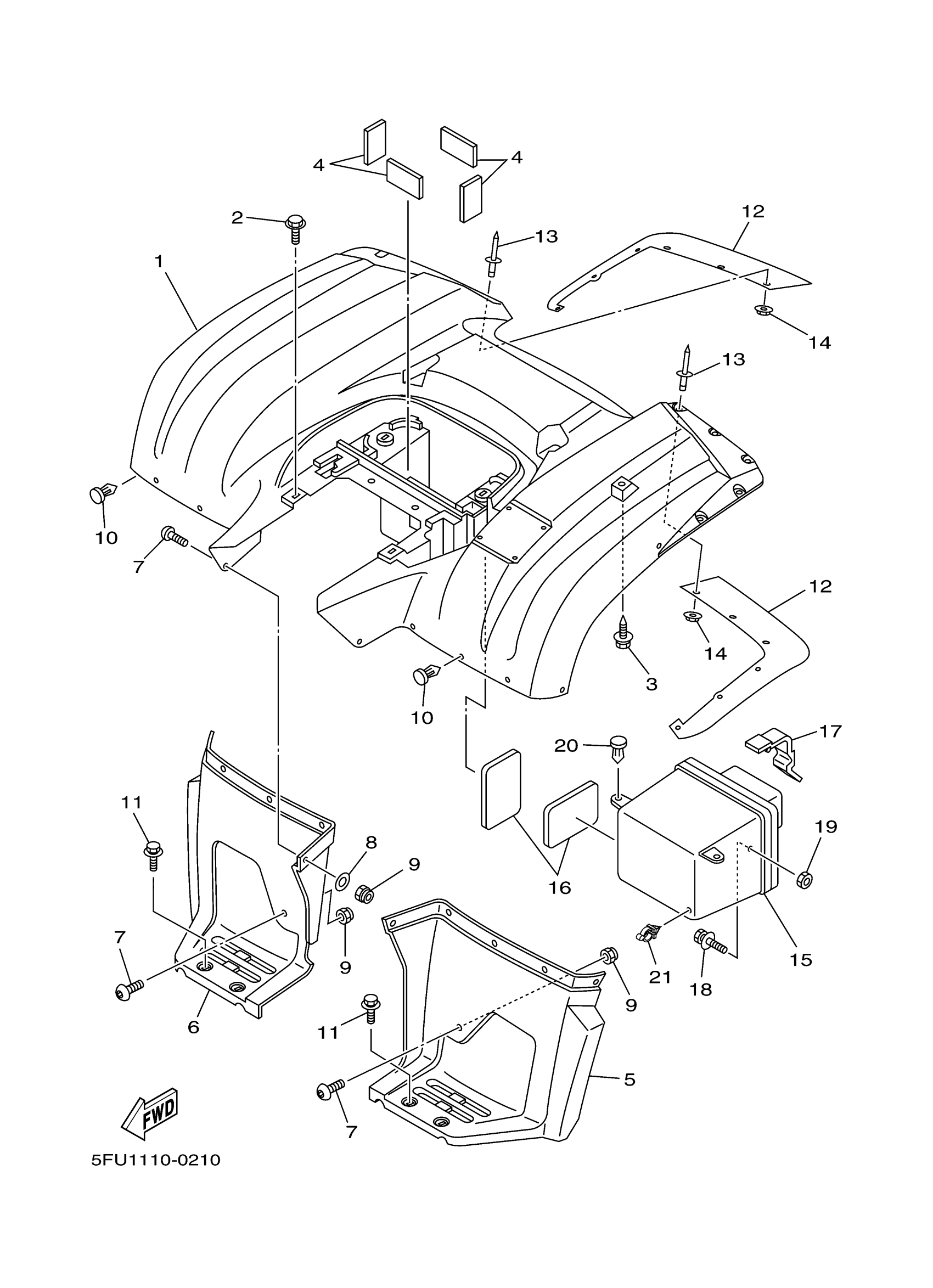

Yamaha YFM400MC (BIG BEAR 2WD) 5GW2 2000 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER (RED)

5FU-F1600-02-00

Unavailable

1

REAR FENDER ASSY.

5FU-F1600-E2-00

Unavailable

1

REAR FENDER ASSY (DNYS1)

5FU-F1600-22-00

Unavailable

2

BOLT, WITH WASHER(81H)

90119-06118-00

$5.75

3

BOLT, WITH WASHER

90119-06226-00

$2.12

4

DAMPER, SIDE COVER

4XE-F4145-00-00

Unavailable

5

FLAP

5FU-F1621-00-00

Unavailable

6

FLAP

5FU-F1691-00-00

Unavailable

7

BOLT,HEX SKT HEAD

90111-06814-00

$1.45

8

WASHER,PLATE

90201-068M4-00

$1.32

9

NUT, SELF-LOCKING

95617-06100-00

$2.17

10

RIVET

90269-08813-00

$0.50

11

BOLT, WITH WASHER

90119-06152-00

$2.56

12

FLAP 3

5FU-F162H-00-00

Unavailable

13

RIVET, BLIND

90267-60840-00

$0.65

14

WASHER,PLATE

90201-068M4-00

$1.32

15

BOX COMP.

4XE-F160A-01-00

Unavailable

16

PROTECTOR

5FU-21652-00-00

Unavailable

17

BAND

59V-21646-00-00

Unavailable

18

BOLT, WITH WASHER

90119-06226-00

$2.12

19

NUT, W/ WASHER

95707-06600-00

Unavailable

20

RIVET

90269-08813-00

$0.50

21

CLAMP

90464-12830-00

Unavailable
