Description

Price

1

COLUMN,STEERING 2

4SH-23813-01-00

Unavailable

2

HOLDER, HANDLE LOWER

2HR-23442-00-98

Unavailable

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

4

BOLT, FLANGE

95817-08050-00

$2.44

5

PLUG, TAPER(2HR)

90336-28053-00

$10.49

6

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

7

OIL SEAL(1UY)

93112-31011-00

$9.49

8

BRACKET, STEERING LOWER

3GD-23868-01-00

Unavailable

9

BOLT, HEXAGON

97017-08060-00

Unavailable

10

WASHER, LOCK 1

1UY-23894-01-00

$7.99

11

COLLAR(85G)

90387-106T4-00

$14.99

12

COLLAR(2GU)

90387-176R6-00

$13.49

13

WASHER, PLATE (3L6)

90201-10774-00

$9.49

14

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

15

PIN, COTTER

91490-20025-00

$1.99

16

ROD, TIE

2HR-23831-01-00

Unavailable

17

JOINT, UNIVERSAL 1

59V-23841-01-00

Unavailable

18

JOINT, UNIVERSAL 2

59V-23845-01-00

Unavailable

19

NUT (3WP1)

95317-10700-00

Unavailable

20

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

21

ROD, TIE

2HR-23831-01-00

Unavailable

22

JOINT, UNIVERSAL 1

59V-23841-01-00

Unavailable

23

JOINT, UNIVERSAL 2

59V-23845-01-00

Unavailable

24

NUT (3WP1)

95317-10700-00

Unavailable

25

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

26

NUT 3532518200

90171-10004-00

Unavailable

27

PIN, COTTER

91490-20025-00

$1.99

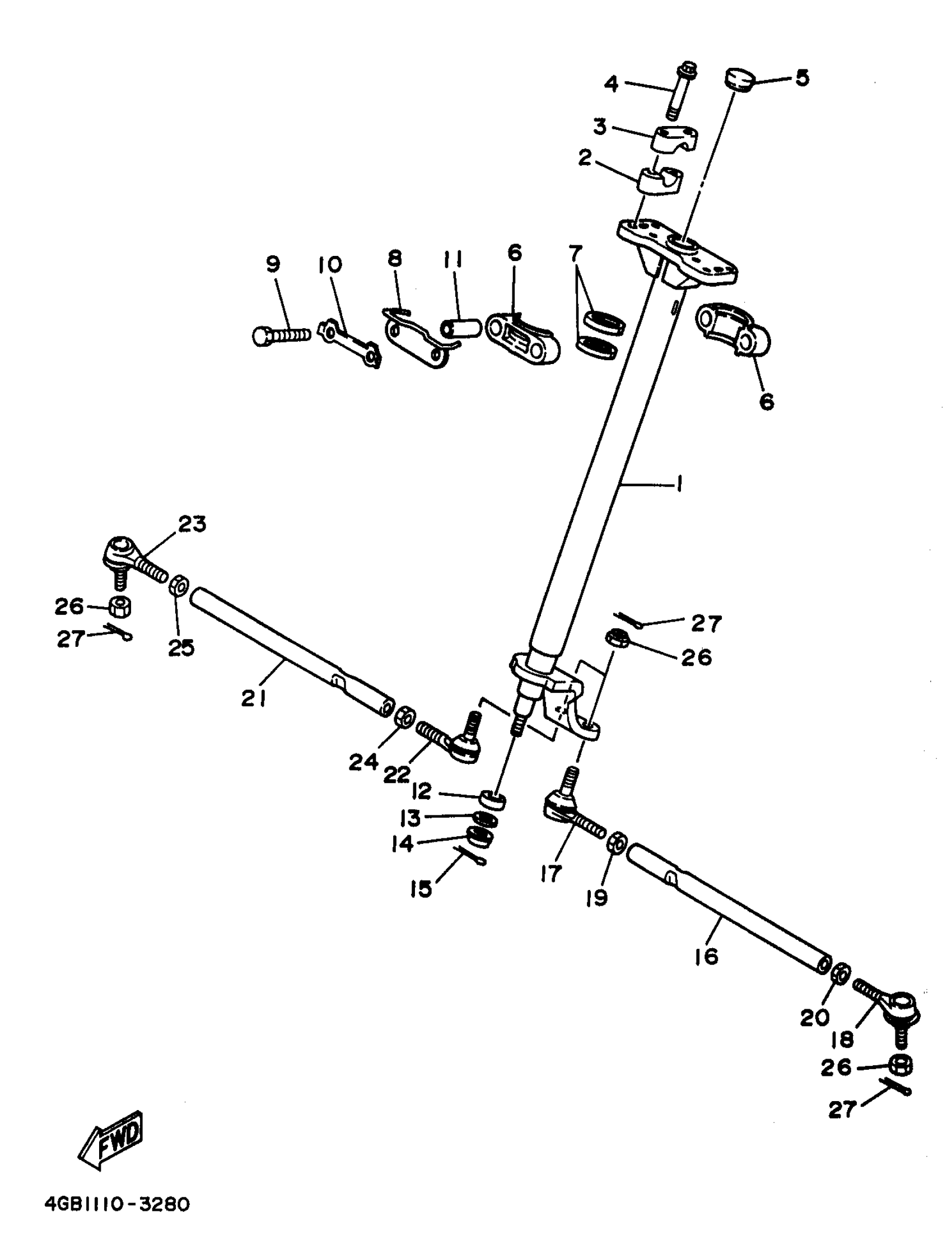

Yamaha YFM400FWK (KODIAK 4WD) 4SHB 1998 STEERING Diagram

COLUMN,STEERING 2

HOLDER, HANDLE LOWER

HOLDER, HANDLE UPPER

BOLT, FLANGE

PLUG, TAPER(2HR)

PLANE BEARING, STEERING

OIL SEAL(1UY)

BRACKET, STEERING LOWER

BOLT, HEXAGON

WASHER, LOCK 1

COLLAR(85G)

COLLAR(2GU)

WASHER, PLATE (3L6)

NUT, SELF-LOCKING (8U7)

PIN, COTTER

ROD, TIE

JOINT, UNIVERSAL 1

JOINT, UNIVERSAL 2

NUT (3WP1)

NUT, HEXAGON (8A5)

ROD, TIE

JOINT, UNIVERSAL 1

JOINT, UNIVERSAL 2

NUT (3WP1)

NUT, HEXAGON (8A5)

NUT 3532518200

PIN, COTTER
