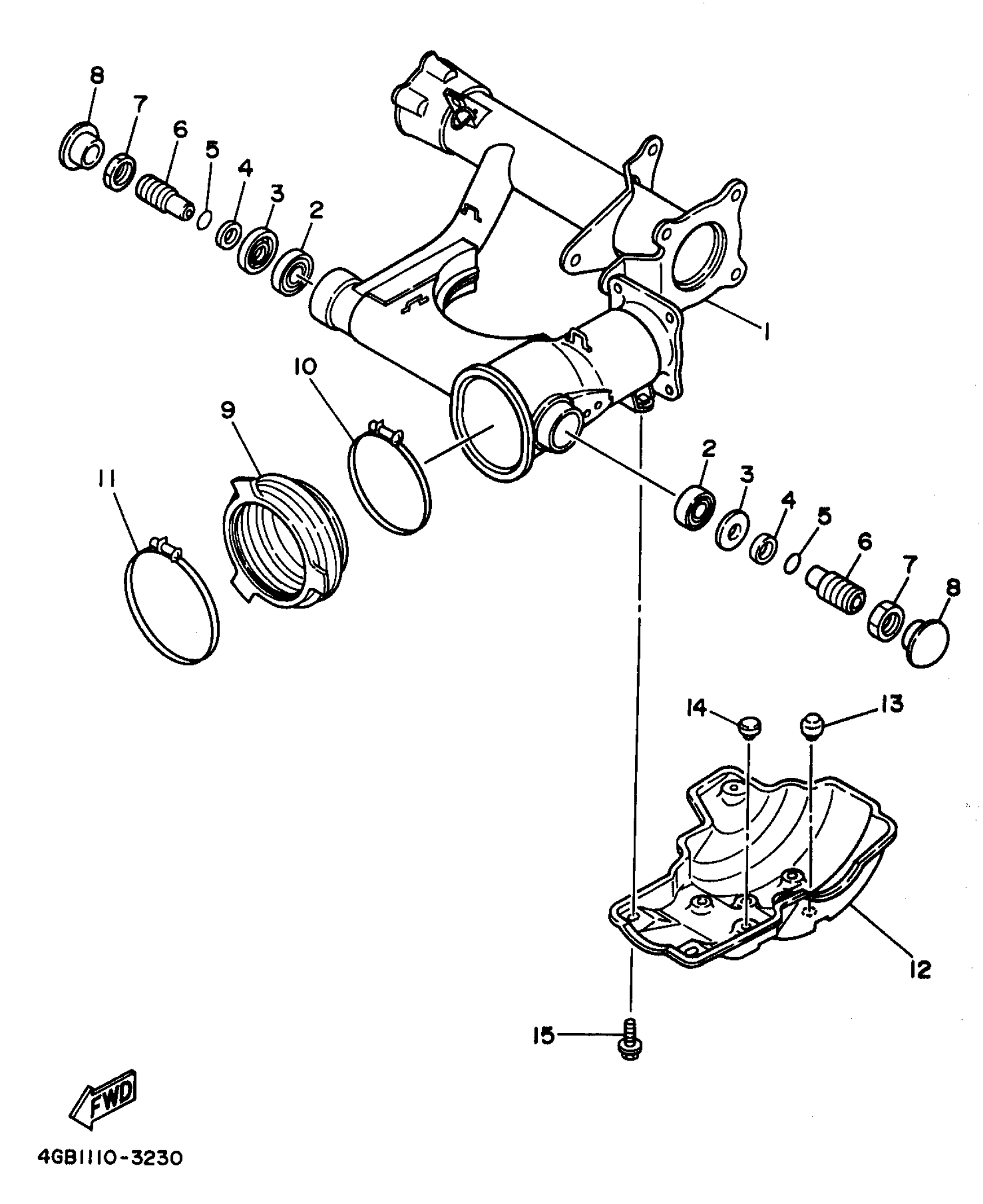

Yamaha YFM400FWK (KODIAK 4WD) 4SHB 1998 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM

4GB-22110-10-00

Unavailable

2

BEARING(4BD)

93332-00080-00

Unavailable

3

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

4

COLLAR(4BD)

90387-1707V-00

$17.99

5

O-RING(53L)

93210-17718-00

$7.49

6

SHAFT, PIVOT

4WV-22141-00-00

$31.99

7

NUT, PIVOT SHAFT

1J7-22143-00-00

$23.99

8

PLUG (1J7)

90338-34069-00

Unavailable

9

BOOT, RUBBER

2HR-22189-00-00

Unavailable

10

CLAMP, HOSE(1YW)

90460-99289-00

$16.99

11

HOSE CLAMP ASSY(2HR)

90450-99013-00

$17.99

12

COVER

2HR-2219X-00-00

Unavailable

13

STOPPER

3Y1-24768-00-00

Unavailable

14

STOPPER

30X-24768-00-00

$5.49

15

BOLT, FLANGE

95817-08012-00

$5.49
