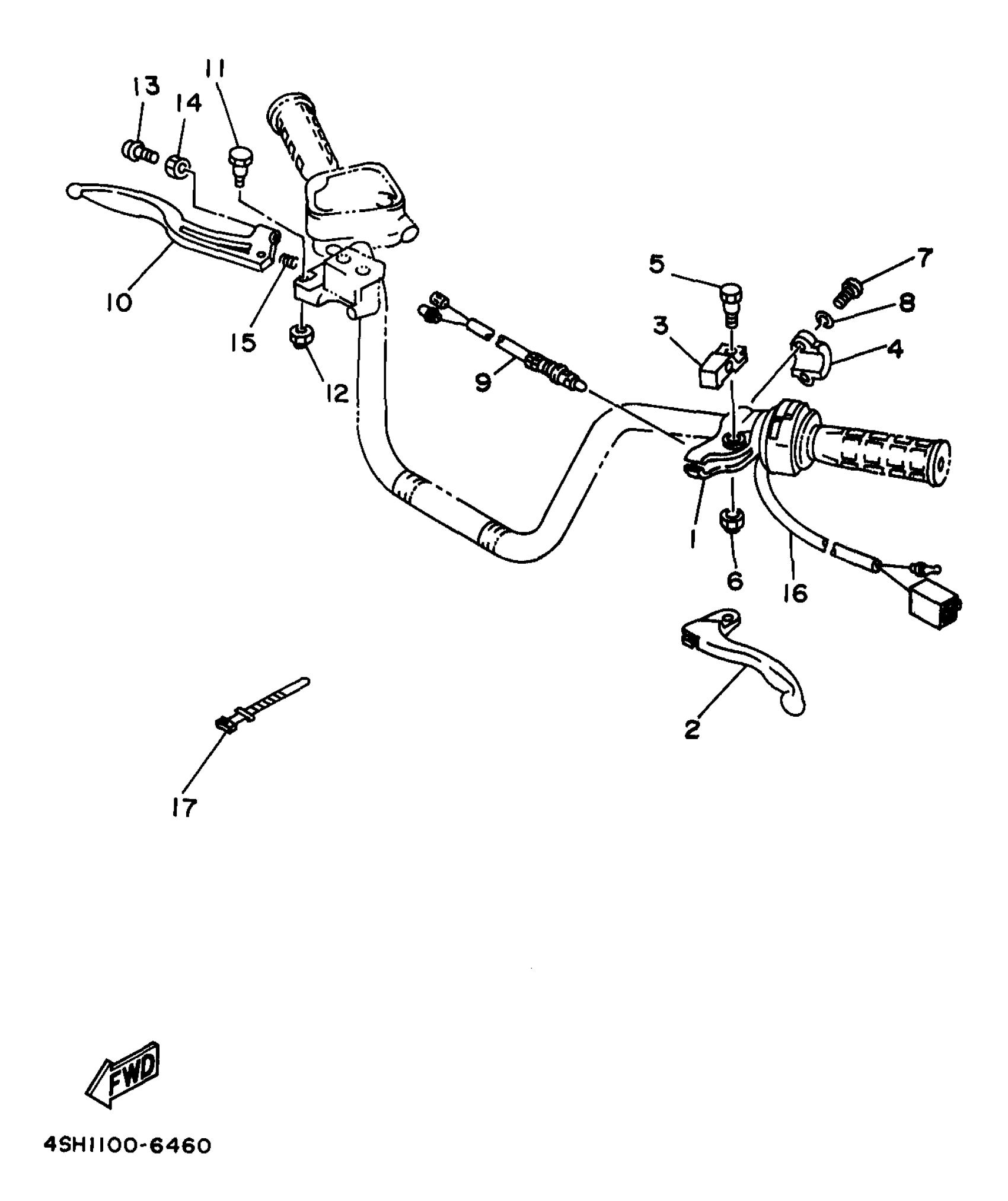

Yamaha YFM400FWK (KODIAK 4WD) 4SHB 1998 HANDLE SWITCH LEVER Diagram

HOLDER, LEVER 1

1YW-82911-02-00

Unavailable

LEVER 1

2HT-83912-01-00

$39.99

LEVER, LOCK

1YW-83965-00-00

Unavailable

HOLDER, LEVER LOWER 1

2XJ-82913-00-00

Unavailable

BOLT 168217380000

90109-06017-00

Unavailable

NUT, SELF-LOCKING

95617-06100-00

$8.49

SCREW, PAN

98517-06020-00

$8.49

WASHER, SPRING

92907-06100-00

$4.25

FRONT STOP SWITCH ASSY

1YW-83980-00-00

$70.99

LEVER 2

38W-83922-01-00

$62.99

BOLT (4L0)

90109-06577-00

$5.60

NUT, SELF-LOCKING

95617-06100-00

$8.49

SCREW (2L0)

90149-06131-00

$8.49

NUT HEXAGON 306839270000

90170-06010-00

$8.49

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

SWITCH, HANDLE 3

4GB-83973-09-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

Unavailable
