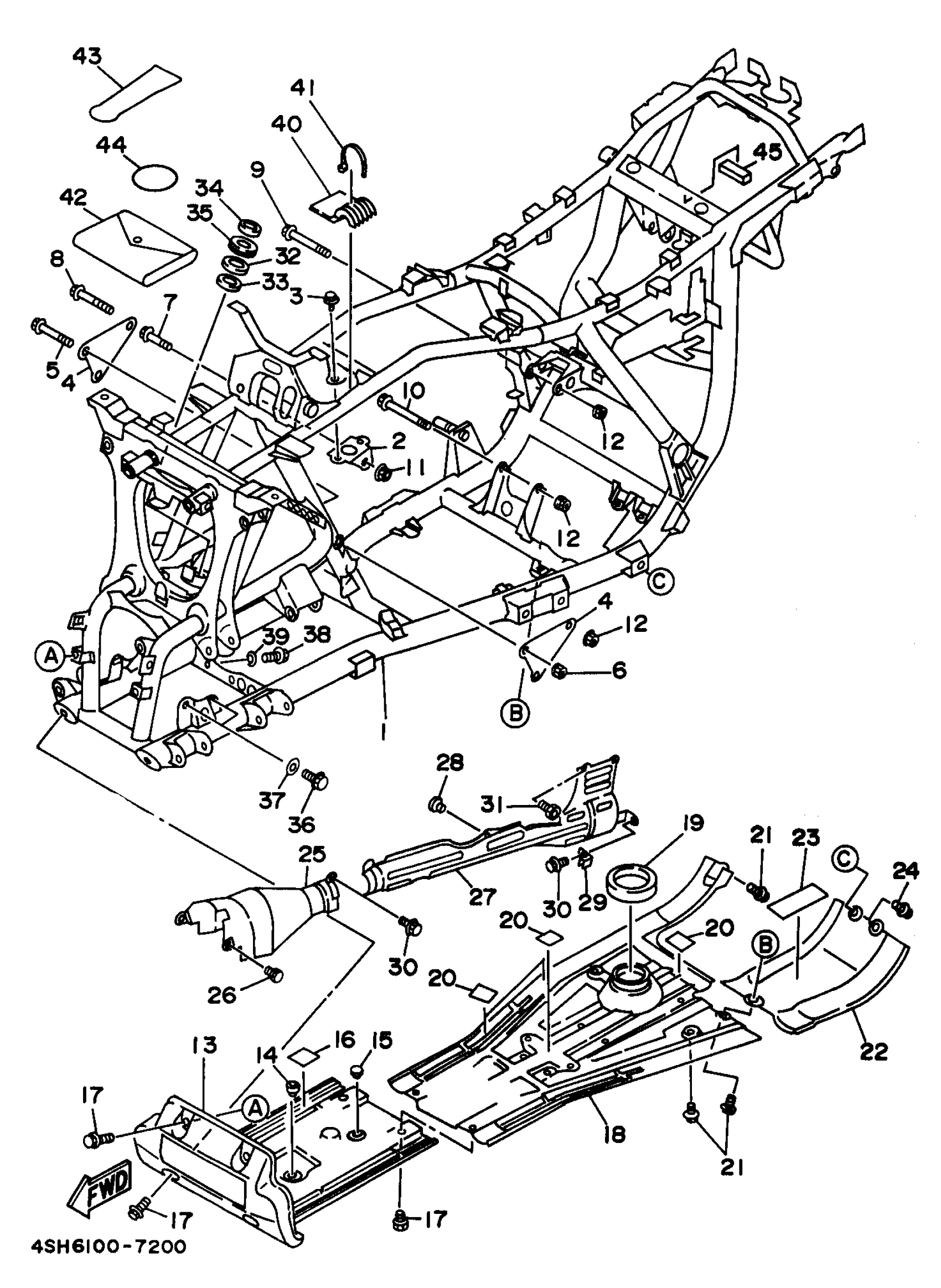

Yamaha YFM400FWK (KODIAK 4WD) 4SHB 1998 FRAME Diagram
#
1
FRAME COMP.
4SH-21110-01-33
Unavailable
2
STAY, ENGINE 2
4GB-21315-00-00
Unavailable
4
STAY,ENGINE 3
3HN-21316-00-00
Unavailable
10
BOLT, WASHER BASED(1KT)
90105-10409-00
Unavailable
13
GUARD, ENGINE 1
2HR-2147A-00-00
Unavailable
16
DAMPER, LOCATING 1
27V-24181-00-00
Unavailable
18
PROTECTOR, ENGINE
3HN-21471-00-00
Unavailable
19
. STOPPER, MAIN STAND
3HN-27114-00-00
Unavailable
20
DAMPER, LOCATING 1
27V-24181-00-00
Unavailable
22
STAY, TRANSFER
2HR-2147H-00-00
Unavailable
23
DAMPER 2
38V-21486-00-00
Unavailable
25
COVER, SHAFT 1
3HN-2147J-10-00
Unavailable
26
BOLT, FLANGE
95817-06012-00
Unavailable
27
COVER, SHAFT 2
3HN-2147K-01-00
Unavailable
28
DAMPER, LOCATING 1
22W-24181-00-00
Unavailable
29
CLAMP
90465-10164-00
Unavailable
30
BOLT, FLANGE
95817-06012-00
Unavailable
31
BOLT,SOCKET
91317-06050-00
Unavailable
32
BEARING
93306-20348-00
Unavailable
33
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
34
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
35
HOLDER, BEARING
2GU-23872-00-00
Unavailable
36
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
37
WASHER PLATE (3L6)
90201-08759-00
Unavailable
38
BOLT(3HN)
97017-08045-00
Unavailable
39
WASHER, PLATE(3XP)
90201-083P5-00
Unavailable
40
DAMPER, LOCATING 1
4WU-24181-00-00
Unavailable
41
BAND
1UA-82591-00-00
Unavailable
42
TOOL KIT (24W-28100-00)
59V-28100-00-00
Unavailable
43
GAUGE, AIR
1NV-2811A-01-00
Unavailable
44
O-RING (102)
93210-41041-00
Unavailable
45
DAMPER
1YW-21638-00-00
Unavailable
