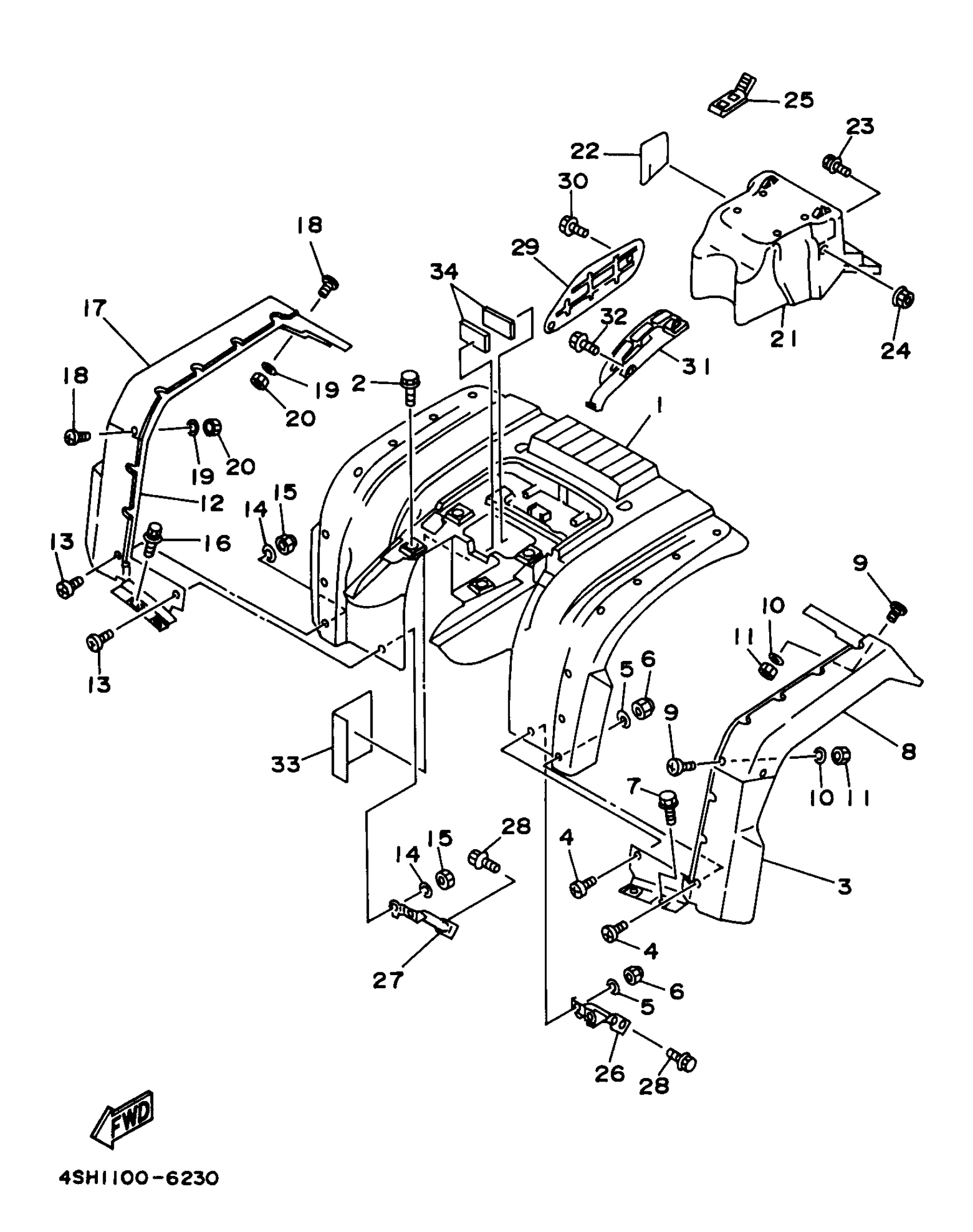

Yamaha YFM400FWJ_MNH (KODIAK 4WD) 4SH6 1997 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER COMP.
4SH-W2161-32-00
Unavailable
1
REAR FENDER COMP.
4SH-W2161-41-00
Unavailable
3
FLAP ASSEMBLY 1
4GB-Y216M-01-00
Unavailable
8
FLAP 3
4GB-2162H-10-00
Unavailable
12
FLAP
4GB-21691-01-00
Unavailable
17
FLAP 4
4GB-2162J-10-00
Unavailable
21
BOX COMP.
1YW-2160A-20-00
Unavailable
22
PROTECTOR
4GB-21652-00-00
Unavailable
23
BOLT, WITH WASHER
90119-06226-00
Unavailable
24
NUT,SELF-LOCKING
95607-06200-00
Unavailable
25
BAND
59V-21646-00-00
Unavailable
26
STAY, FENDER 1
4SH-21613-00-00
Unavailable
27
STAY, FENDER 2
4SH-21614-00-00
Unavailable
28
BOLT, FLANGE
95817-06012-00
Unavailable
29
COVER, REAR FENDER 2
2HR-2163E-00-00
Unavailable
30
BOLT, FLANGE
95817-06010-00
Unavailable
31
COVER, REAR FENDER 3
2HR-2163F-01-00
Unavailable
32
BOLT, FLANGE
95817-06010-00
Unavailable
33
PROTECTOR
4SH-21652-00-00
Unavailable
34
DAMPER
1YW-21638-00-00
Unavailable
