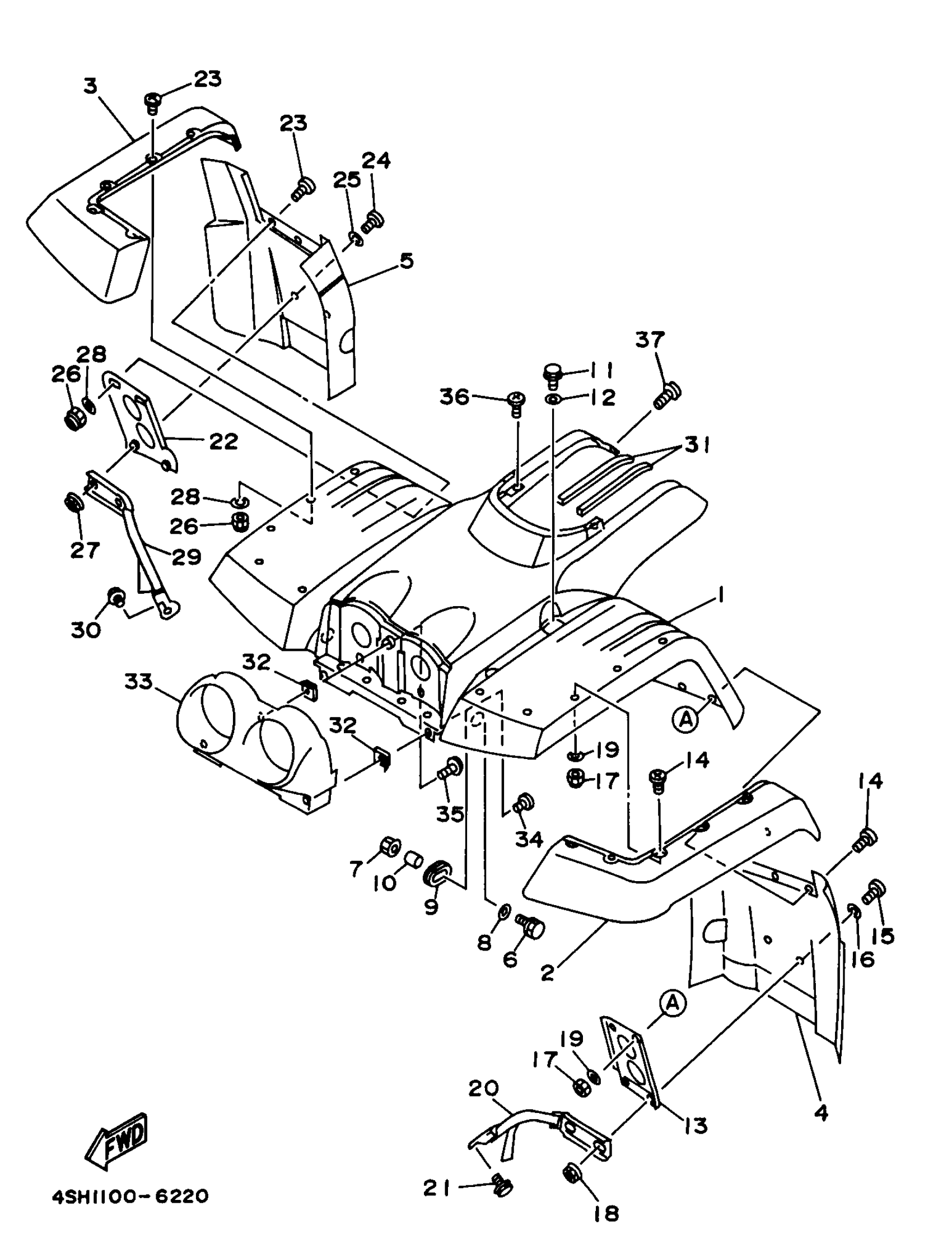

Yamaha YFM400FWJ_MNH (KODIAK 4WD) 4SH6 1997 FRONT FENDER Diagram
#
1
FRONT FENDER COMP.
4SH-W215E-32-00
Unavailable
1
FRONT FENDER COMP.
4SH-W215E-42-00
Unavailable
2
FENDER, OVER
4GB-21551-10-00
Unavailable
3
FENDER, OVER 2
4GB-21555-10-00
Unavailable
4
FENDER, OVER 3
4GB-21559-00-00
Unavailable
5
FENDER, OVER 4
4GB-21560-00-00
Unavailable
15
SCREW, BINDING (8K8)
90154-05006-00
Unavailable
16
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
17
NUT, NYLON
95707-05300-00
Unavailable
18
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
19
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
20
STAY, FENDER 1
4GB-21513-11-00
Unavailable
21
BOLT, FLANGE
95817-06012-00
Unavailable
22
PLATE 2
2HR-21524-00-00
Unavailable
24
SCREW, BINDING (8K8)
90154-05006-00
Unavailable
25
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
26
NUT, NYLON
95707-05300-00
Unavailable
27
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
28
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
29
STAY, FENDER 2
4GB-21514-11-00
Unavailable
30
BOLT, FLANGE
95817-06012-00
Unavailable
31
MOLE, SIDE COVER 1
4WV-2171L-00-00
Unavailable
32
NUT, SPRING(1YT)
90183-05042-00
Unavailable
33
PANEL, FRONT
4SH-23391-00-00
Unavailable
34
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
35
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
36
SCREW(3JM)
90149-06306-00
Unavailable
37
SCREW, W/WASHER (14T)
90159-06059-00
Unavailable
