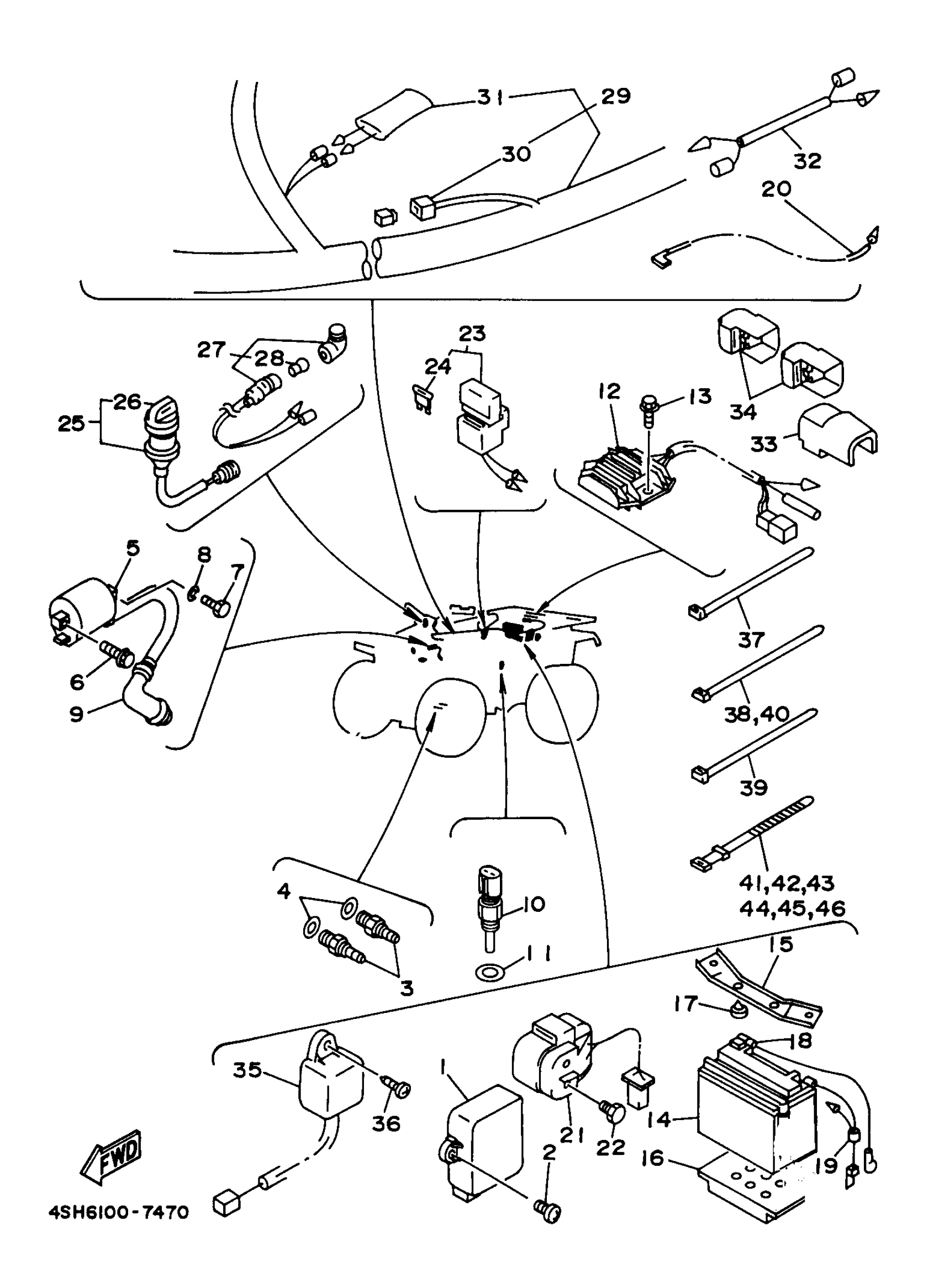

Yamaha YFM400FWJ_MNH (KODIAK 4WD) 4SH6 1997 ELECTRICAL 1 Diagram
#
14
BATTERY ASSY (YUASA YTX20L-BS)
YTX-20LBS-00-00
Unavailable
15
BRACKET, BATTERY
4SH-82128-00-00
Unavailable
16
DAMPER 2
4SH-21639-00-00
Unavailable
17
DAMPER, SEAT
4G0-24723-00-00
Unavailable
18
WIRE, PLUS LEAD
4SH-82115-00-00
Unavailable
19
WIRE, MINUS LEAD
4WV-82116-00-00
Unavailable
20
WIRE, LEAD
3HN-82541-00-00
Unavailable
21
STARTER RELAY ASSY (MS5E-541)
4KB-81940-01-00
Unavailable
22
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
23
FUSE HOLDER ASSY
5EH-82150-00-00
Unavailable
24
FUSE (12V 30A)
1AE-82151-00-00
Unavailable
25
MAIN SWITCH ASSY
4GB-82510-12-00
Unavailable
26
CAP, KEY
3HN-82579-00-00
Unavailable
27
PILOT LIGHT ASSY
2HR-83530-01-00
Unavailable
28
BULB (12V3.4W)
123-83516-21-XX
Unavailable
29
WIRE HARNESS ASSY
4SH-82590-31-00
Unavailable
30
DIODE ASSY
3WP-81980-00-00
Unavailable
31
CIRCUIT BREAKER ASSY
5GT-82180-00-00
Unavailable
32
WIRE, LEAD
59V-82541-00-00
Unavailable
33
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
34
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
35
MOTOR CONTROL UNIT ASSY
4SH-86510-00-00
Unavailable
37
BAND
341-26397-01-00
Unavailable
38
BAND
80L-26397-00-00
Unavailable
39
BAND
1UA-82591-00-00
Unavailable
40
BAND
80L-26397-00-00
Unavailable
41
BAND, SWITCH CORD
437-83936-01-00
Unavailable
42
BAND, SWITCH CORD
437-83936-11-00
Unavailable
43
BAND, SWITCH CORD
437-83936-11-00
Unavailable
44
BAND, SWITCH CORD
437-83936-11-00
Unavailable
45
BAND, SWITCH CORD
437-83936-11-00
Unavailable
46
BAND, SWITCH CORD
437-83936-11-00
Unavailable
47
KEY, BLANK (A-TYPE)
90890-56001-00
Unavailable
48
KEY, BLANK (B-TYPE)
90890-56002-00
Unavailable
