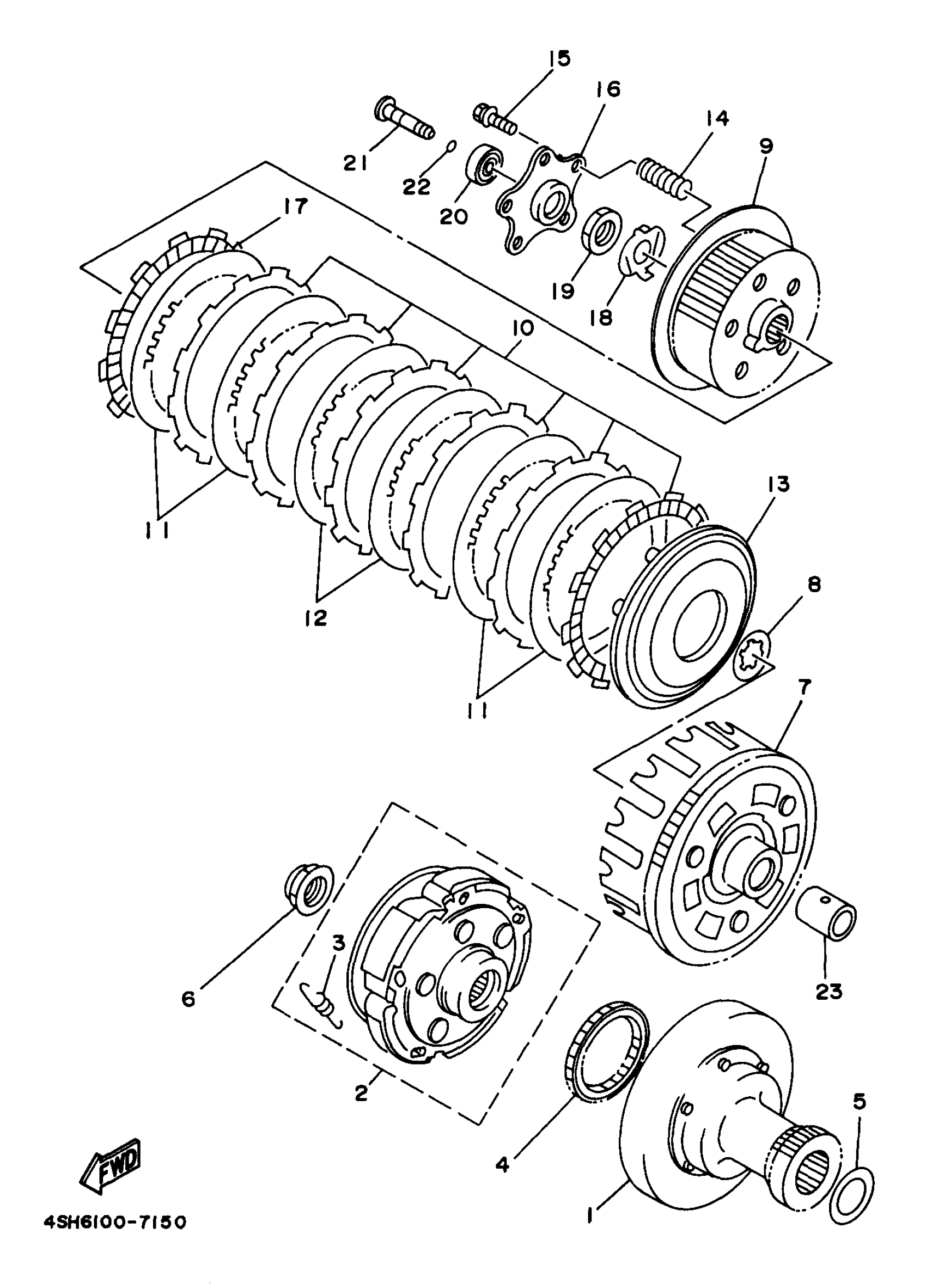

Yamaha YFM400FWJ_MNH (KODIAK 4WD) 4SH6 1997 CLUTCH Diagram

#

Description
Price

1

CLUTCH HOUSING COMP.

4SH-16611-00-00

Unavailable

2

CLUTCH CARRIER ASSY

4SH-16620-01-00

Unavailable

3

. SPRING, CLUTCH WEIGHT 1

4SH-16626-00-00

Unavailable

4

BEARING, ONE WAY

4SH-16664-00-00

$123.47

5

WASHER, PLATE

90201-30008-00

$3.68

6

NUT

90179-22005-00

$21.55

7

PRIMARY DRIVEN GEAR COMP.

2NL-16150-00-00

$301.08

8

PLATE, THRUST 1

30X-16154-00-00

$22.52

9

BOSS, CLUTCH

1UY-16371-02-00

$121.44

10

PLATE, FRICTION

5Y1-16331-01-00

$24.19

11

PLATE, CLUTCH 2

168-16325-10-00

$12.44

12

PLATE, CLUTCH 1

3J2-16324-10-00

$9.79

13

PLATE, PRESSURE 1

1UY-16351-00-00

$103.70

14

SPRING, COMPRESSION (31A)

90501-23763-00

$3.15

15

SCREW, WITH WASHER(1AE)

90159-06123-00

$6.02

16

PLATE, PRESSURE 2

1UY-16352-00-00

Unavailable

17

PLATE, FRICTION

4H7-16321-02-00

Unavailable

18

WASHER, LOCK(1UY)

90215-16258-00

Unavailable

19

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

20

BRG,R-B 6000 26MM 19G KY

93306-00004-00

Unavailable

21

PLATE, PUSH

4GB-16358-00-00

Unavailable

22

O-RING (26H)

93210-06632-00

Unavailable

23

SPACER 1

1YW-16181-00-00

Unavailable
