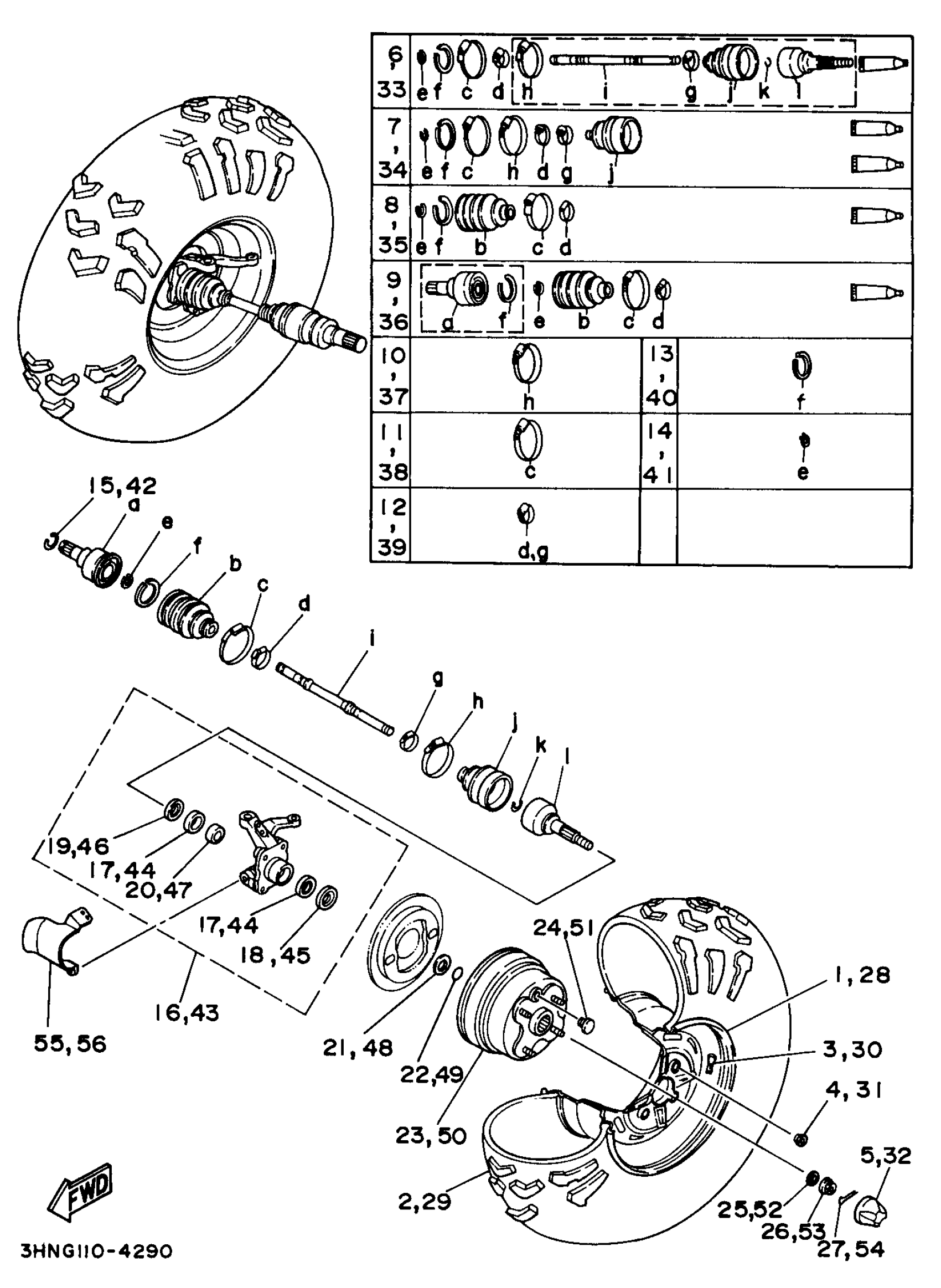

Yamaha YFM400FWH_MNH (KODIAK 4WD) 4SH1 1996 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

3HN-25180-00-MA

Unavailable

2

TIRE (AT25X8-12 KT402)

94108-126Y6-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

NUT(2HR)

90179-10540-00

$5.60

5

CAP, WHEEL

52H-2512A-00-00

$22.99

6

BALL JOINT SET

3HN-2510F-01-00

$446.99

7

BOOT SET (BALL JOINT)

3HN-2510G-00-00

$92.99

8

BOOT SET (DOUBLE OFFSET JOINT)

3HN-2510H-00-00

$90.99

9

DOUBLE 0FF SET JOINT

3HN-2510J-00-00

Unavailable

10

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

11

BOOT BAND (DOUBLE OFFSET JOINT

3HN-2511H-01-00

$20.99

12

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

13

CIRCLIP

2HR-2512H-00-00

Unavailable

14

SNAP RING

2HR-2512J-00-00

$6.99

15

CIRCLIP(2HR)

93450-22119-00

$8.49

16

STEERING,KNUCKLE (L)

3HN-23501-02-00

Unavailable

17

BEARING(2HR)

93306-00612-00

Unavailable

18

OIL SEAL(2HR)

93102-38383-00

Unavailable

19

OIL SEAL(3HN)

93102-38417-00

Unavailable

20

SPACER(2HR)

90560-30325-00

Unavailable

21

COLLAR(3HN)

90387-281V8-00

Unavailable

22

O-RING(22F)

93210-26662-00

Unavailable

23

HUB, FRONT

3HN-25111-02-00

Unavailable

24

CAP

2NL-25335-01-00

Unavailable

25

WASHER, PLATE(3HN)

90201-163M0-00

Unavailable

26

NUT, CASTLE

90171-16001-00

Unavailable

27

PIN, COTTER

91490-30030-00

Unavailable

28

WHEEL COMP.

3HN-25180-00-MA

Unavailable

29

TIRE (AT25X8-12 KT402)

94108-126Y6-00

Unavailable

30

VALVE, RIM(2GH)

93900-00030-00

$16.99

31

NUT(2HR)

90179-10540-00

$5.60

32

CAP, WHEEL

52H-2512A-00-00

$22.99

33

BALL JOINT SET

3HN-2510F-01-00

$446.99

34

BOOT SET (BALL JOINT)

3HN-2510G-00-00

$92.99

35

BOOT SET (DOUBLE OFFSET JOINT)

3HN-2510H-00-00

$90.99

36

DOUBLE 0FF SET JOINT

3HN-2510J-00-00

Unavailable

37

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

$17.49

38

BOOT BAND (DOUBLE OFFSET JOINT

3HN-2511H-01-00

$20.99

39

BOOT BAND (SMALL)

3HN-2512G-01-00

$11.99

40

CIRCLIP

2HR-2512H-00-00

Unavailable

41

SNAP RING

2HR-2512J-00-00

$6.99

42

CIRCLIP(2HR)

93450-22119-00

$8.49

43

STEERING, KNUCKLE ASSY (RIGHT)

3HN-23502-02-00

Unavailable

44

BEARING(2HR)

93306-00612-00

Unavailable

45

OIL SEAL(2HR)

93102-38383-00

Unavailable

46

OIL SEAL(3HN)

93102-38417-00

Unavailable

47

SPACER(2HR)

90560-30325-00

Unavailable

48

COLLAR(3HN)

90387-281V8-00

Unavailable

49

O-RING(22F)

93210-26662-00

Unavailable

50

HUB, FRONT

3HN-25111-02-00

Unavailable

51

CAP

2NL-25335-01-00

Unavailable

52

WASHER, PLATE(3HN)

90201-163M0-00

Unavailable

53

NUT, CASTLE

90171-16001-00

Unavailable

54

PIN, COTTER

91490-30030-00

Unavailable

55

COVER, RING

4GB-2331M-00-00

Unavailable

56

COVER, RING

4GB-2331N-00-00

Unavailable
