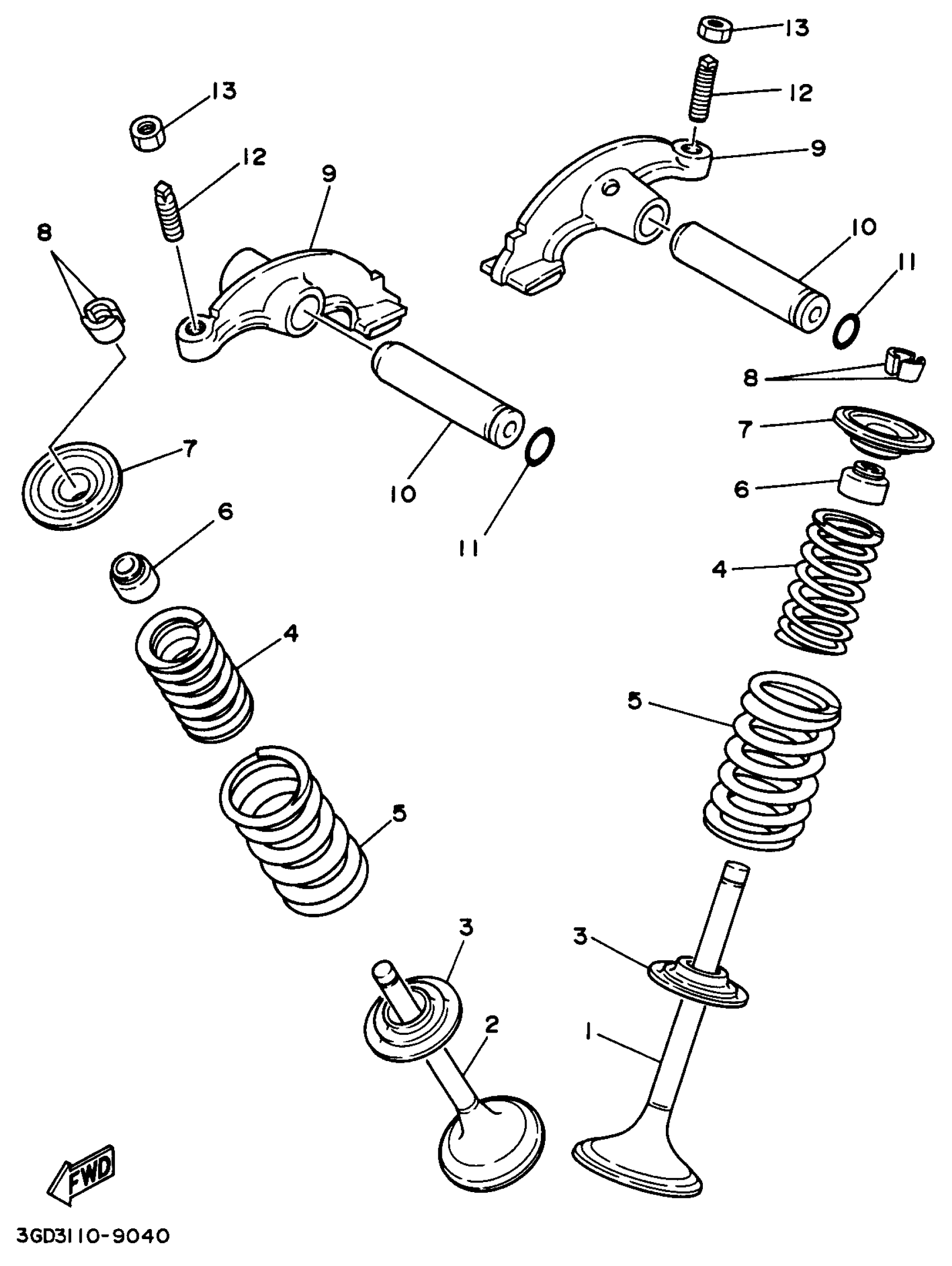

Yamaha YFM400FWH (KODIAK 4WD) 4SH1 1996 VALVE Diagram

VALVE, INTAKE

1UY-12111-01-00

$80.99

VALVE, EXHAUST

1UY-12121-01-00

$94.99

SEAT, VALVE SPRING

3Y1-12116-00-00

$16.49

SPRING, VALVE INNER

22U-12113-00-00

Unavailable

SPRING, VALVE OUTER

1UY-12114-01-00

$27.99

SEAL, VALVE STEM 2

M01-12129-00-00

$13.99

RETAINER, VALVE SPRING

3Y1-12117-01-00

$17.49

LOCK, VALVE SPRING

1J7-12118-00-00

$7.99

ARM, VALVE ROCKER

3GD-12151-00-00

$116.99

SHAFT, ROCKER

3Y1-12156-00-00

$65.99

O-RING (1J7)

93210-09350-00

$7.49

SCREW, VALVE ADJUSTING

31G-12159-02-00

$9.99

NUT, LOCK

31G-12158-00-00

$6.99
