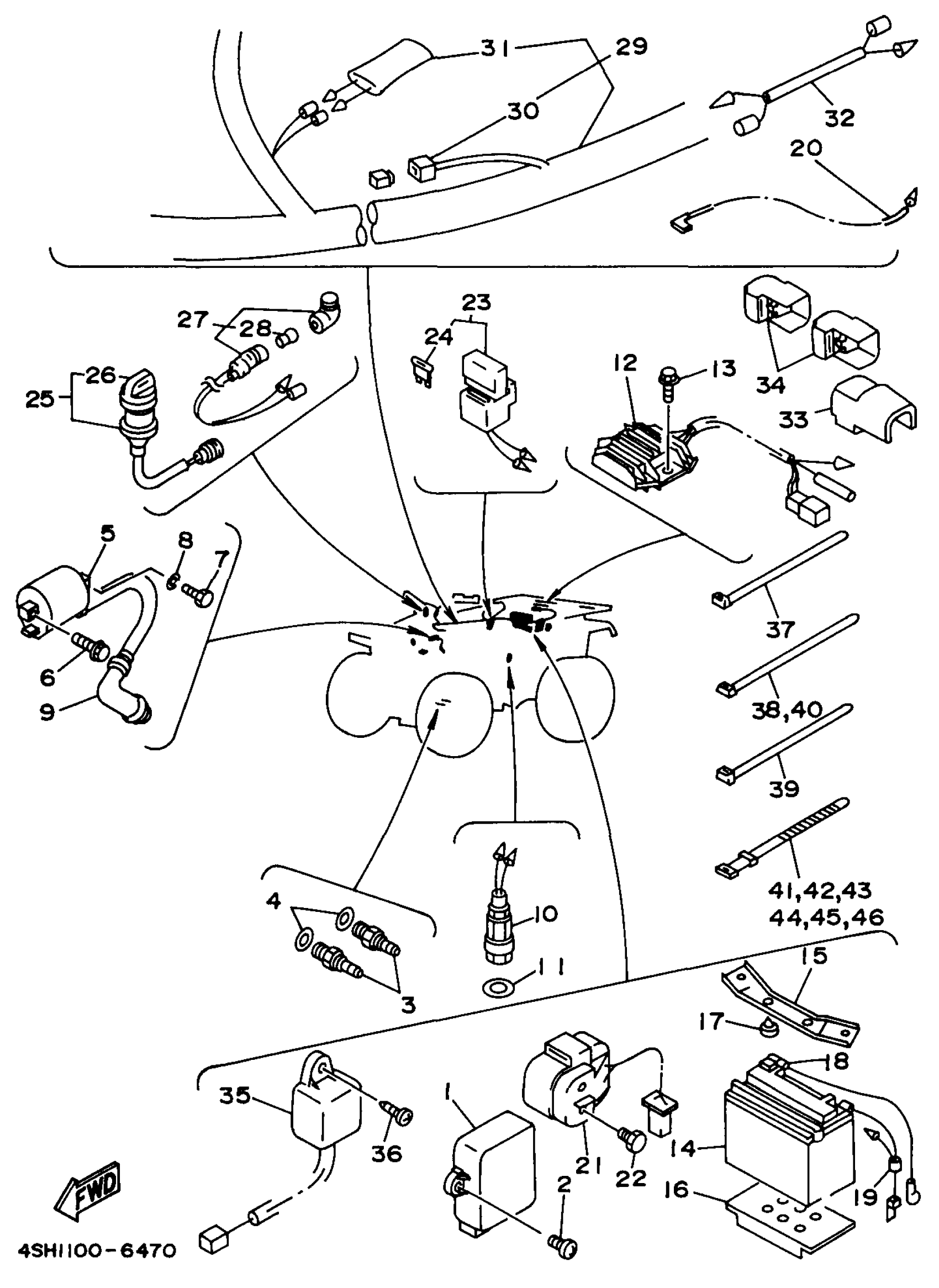

Yamaha YFM400FWH (KODIAK 4WD) 4SH1 1996 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

4KB-85540-30-00

$636.99

2

SCREW, BINDING

98907-06016-00

$9.49

3

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

4

GASKET (5R6)

90430-10171-00

$3.18

5

IGNITION COIL ASSY

3GD-82310-10-00

$153.99

6

BOLT (21V)

90109-06723-00

$8.49

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

WASHER(6TA)

92907-06600-00

$2.72

9

PLUG CAP ASSY

4VW-82370-00-00

$69.99

10

THERMO UNIT

4GB-83591-00-00

Unavailable

11

WASHER, PLATE 3412175700

90201-12172-00

$3.93

12

RECTIFIER & REGULATOR ASSY

4KB-81960-02-00

$287.99

13

BOLT, FLANGE

95817-06020-00

$3.81

14

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

15

BRACKET, BATTERY

4SH-82128-00-00

Unavailable

16

DAMPER 2

4SH-21639-00-00

Unavailable

17

DAMPER, SEAT

4G0-24723-00-00

Unavailable

18

WIRE, PLUS LEAD

4SH-82115-00-00

Unavailable

19

WIRE, MINUS LEAD

4WV-82116-00-00

Unavailable

20

WIRE, LEAD

3HN-82541-00-00

Unavailable

21

STARTER RELAY ASSY (MS5E-541)

4KB-81940-01-00

Unavailable

22

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

23

FUSE HOLDER ASSY

5EH-82150-00-00

Unavailable

24

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

25

MAIN SWITCH ASSY

4GB-82510-12-00

Unavailable

26

CAP, KEY

3HN-82579-00-00

Unavailable

27

PILOT LIGHT ASSY

2HR-83530-01-00

Unavailable

28

BULB (12V3.4W)

123-83516-21-XX

Unavailable

29

WIRE HARNESS ASSY

4SH-82590-21-00

Unavailable

30

DIODE ASSY

3WP-81980-00-00

Unavailable

31

CIRCUIT BREAKER ASSY

5GT-82180-00-00

Unavailable

32

WIRE, LEAD

59V-82541-00-00

Unavailable

33

RELAY ASSY (1UY-92)

1UY-81950-92-00

Unavailable

34

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

35

MOTOR CONTROL UNIT ASSY

4SH-86510-00-00

Unavailable

36

SCREW, BINDING

98907-06016-00

$9.49

37

BAND

341-26397-01-00

Unavailable

38

BAND

80L-26397-00-00

Unavailable

39

BAND

1UA-82591-00-00

Unavailable

40

BAND

80L-26397-00-00

Unavailable

41

BAND, SWITCH CORD

437-83936-01-00

Unavailable

42

BAND, SWITCH CORD

437-83936-11-00

Unavailable

43

BAND, SWITCH CORD

437-83936-11-00

Unavailable

44

BAND, SWITCH CORD

437-83936-11-00

Unavailable

45

BAND, SWITCH CORD

437-83936-11-00

Unavailable

46

BAND, SWITCH CORD

437-83936-11-00

Unavailable

47

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

48

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
