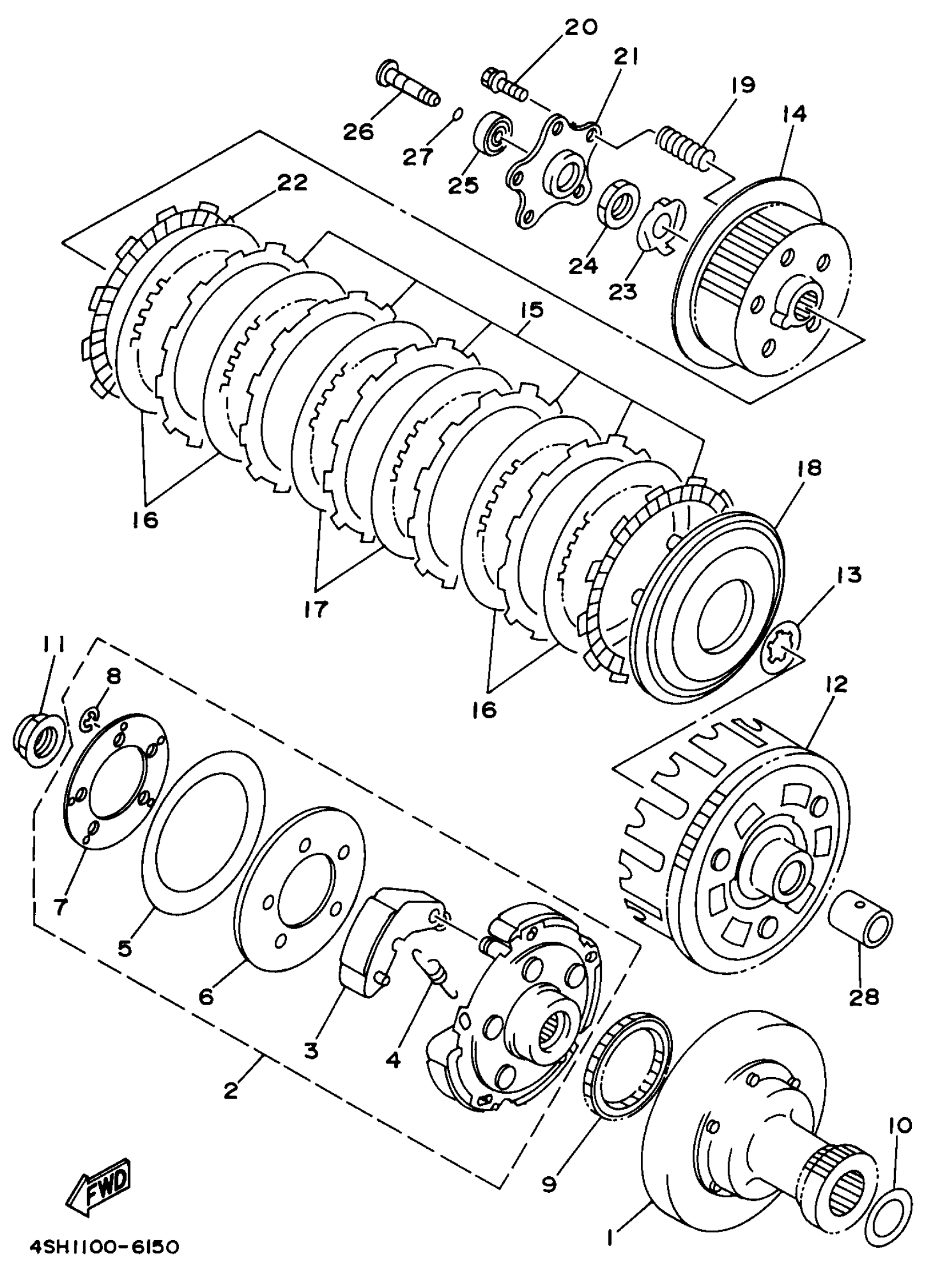

Yamaha YFM400FWH (KODIAK 4WD) 4SH1 1996 CLUTCH Diagram
#
Description
Price
1
CLUTCH HOUSING COMP.
4SH-16611-00-00
Unavailable
2
CLUTCH CARRIER ASSY
4SH-16620-01-00
Unavailable
3
. SHOE, CLUTCH WEIGHT
4SH-16623-00-00
Unavailable
4
. SPRING, CLUTCH WEIGHT 1
4SH-16626-00-00
Unavailable
5
. WASHER, SPRING
4SH-16646-00-00
Unavailable
6
. RING, FRICTION
4SH-16619-00-00
Unavailable
7
. PLATE, WEIGHT THRUST
4SH-16523-00-00
Unavailable
8
CIRCLIP
99080-07600-00
Unavailable
16
PLATE, CLUTCH 2
168-16325-10-00
Unavailable
17
PLATE, CLUTCH 1
3J2-16324-10-00
Unavailable
18
PLATE, PRESSURE 1
1UY-16351-00-00
Unavailable
19
SPRING, COMPRESSION (31A)
90501-23763-00
Unavailable
20
SCREW, WITH WASHER(1AE)
90159-06123-00
Unavailable
21
PLATE, PRESSURE 2
1UY-16352-00-00
Unavailable
22
PLATE, FRICTION
4H7-16321-02-00
Unavailable
23
WASHER, LOCK(1UY)
90215-16258-00
Unavailable
24
NUT, HEXAGON (30X)
90170-16326-00
Unavailable
25
BRG,R-B 6000 26MM 19G KY
93306-00004-00
Unavailable
26
PLATE, PUSH
4GB-16358-00-00
Unavailable
27
O-RING (26H)
93210-06632-00
Unavailable
28
SPACER 1
1YW-16181-00-00
Unavailable
