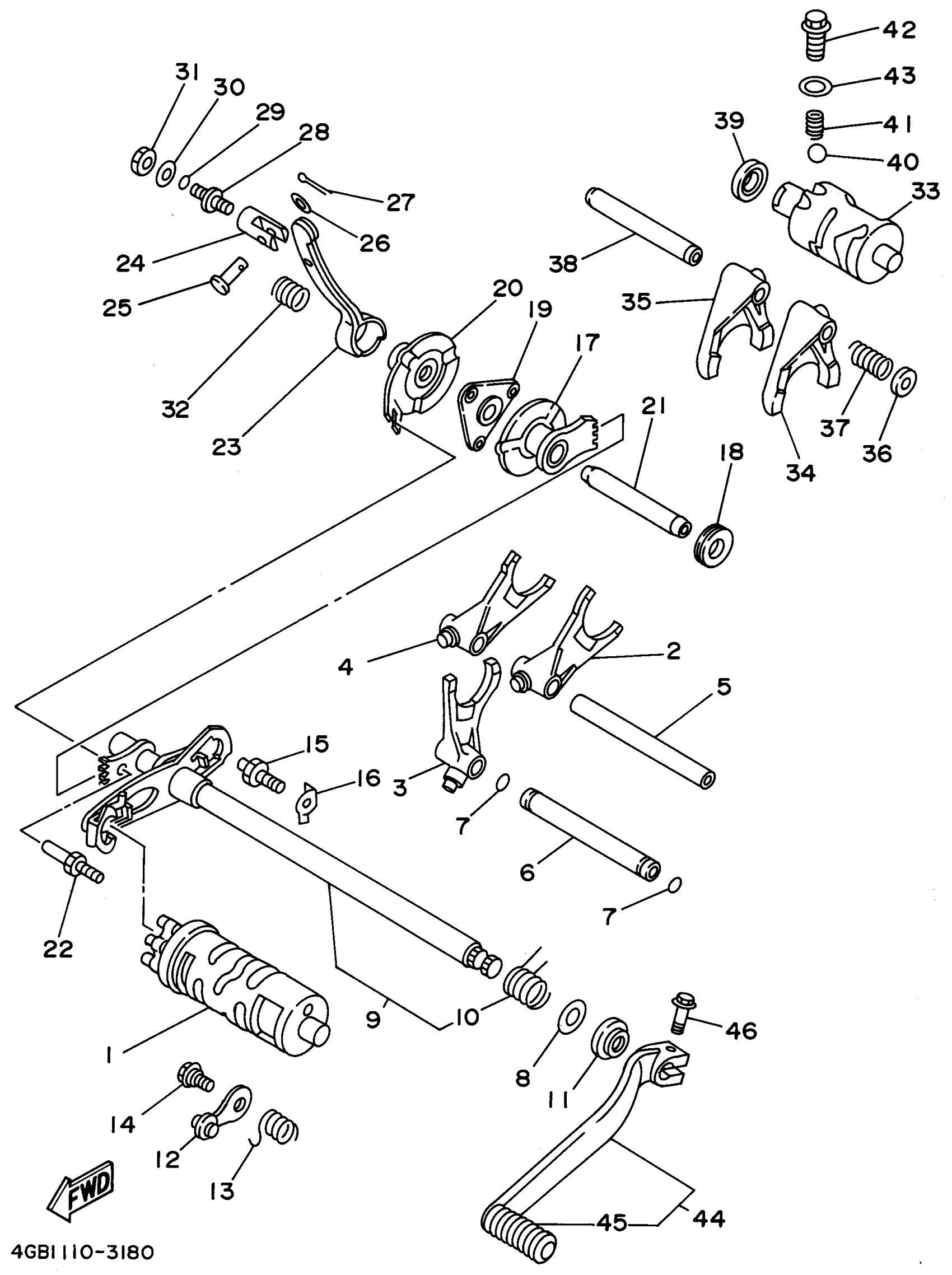

Yamaha YFM400FWG_MNH (KODIAK 4WD) 4SH1 1995 SHIFT CAM SHIFT FORK Diagram
#
1
SHIFT CAM ASSY
4GB-18540-00-00
Unavailable
2
FORK, SHIFT 1
4GB-18511-00-00
Unavailable
3
FORK, SHIFT 2
4GB-18512-00-00
Unavailable
4
FORK, SHIFT 3
4GB-18513-00-00
Unavailable
5
BAR, SHIFT FORK GUIDE 2
4GB-18535-00-00
Unavailable
7
O-RING (21V)
93210-07590-00
Unavailable
9
SHIFT SHAFT ASSY
1YW-18101-02-00
Unavailable
10
SPRING, TORSION(1UY)
90508-32711-00
Unavailable
12
STOPPER LEVER ASSY
1UY-18140-00-00
Unavailable
15
STOPPER, SCREW
5VK-18127-00-00
Unavailable
16
WASHER, LOCK(1UY)
90215-08260-00
Unavailable
17
GUIDE SHIFT COMP. 2
1YW-18106-00-00
Unavailable
18
BEARING
93342-21212-00
Unavailable
19
HOLDER, PAWL
1YW-18181-00-00
Unavailable
20
GUIDE SHIFT COMP.
1YW-18104-00-00
Unavailable
21
SHAFT, SHIFTER
1YW-18318-00-00
Unavailable
22
STOPPER, SCREW
1YW-18127-00-00
Unavailable
23
ARM, SHIFT 3
2VA-1817A-00-00
Unavailable
24
PIN, LEVER
21V-18126-00-00
Unavailable
25
PIN, JOINT
21V-18118-00-00
Unavailable
26
.. WASHER, PLATE
92990-08600-00
Unavailable
27
PIN, COTTER
91490-16020-00
Unavailable
28
STOPPER, SCREW
21V-18127-00-00
Unavailable
29
O-RING (21V)
93210-07590-00
Unavailable
30
WASHER (1T1)
90201-08649-00
Unavailable
31
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
32
SPRING, COMPRESSION(1YW)
90501-162E4-00
Unavailable
33
CAM, SHIFT 2
2HR-18546-06-00
Unavailable
34
FORK, SHIFT 1
2HR-18311-00-00
Unavailable
35
FORK, SHIFT 2
1YW-18312-00-00
Unavailable
36
CAP, SPRING
2HR-18323-00-00
Unavailable
37
SPRING (2HR)
90501-147E8-00
Unavailable
38
BAR, SHIFT FORK GUIDE 2
5Y1-18535-00-00
Unavailable
39
OIL SEAL (3X3)
93102-15212-00
Unavailable
40
BALL
93503-08007-00
Unavailable
41
SPRING, COMPRESSION (465)
90501-10353-00
Unavailable
42
BOLT, WASHER BASED(59V)
90105-14367-00
Unavailable
43
GASKET(59V)
90430-14194-00
Unavailable
44
SHIFT PEDAL ASSY
2HR-18110-01-00
Unavailable
45
COVER, CHANGE PEDAL
132-18113-01-00
Unavailable
46
BOLT, HEXAGON
97017-06020-00
Unavailable
