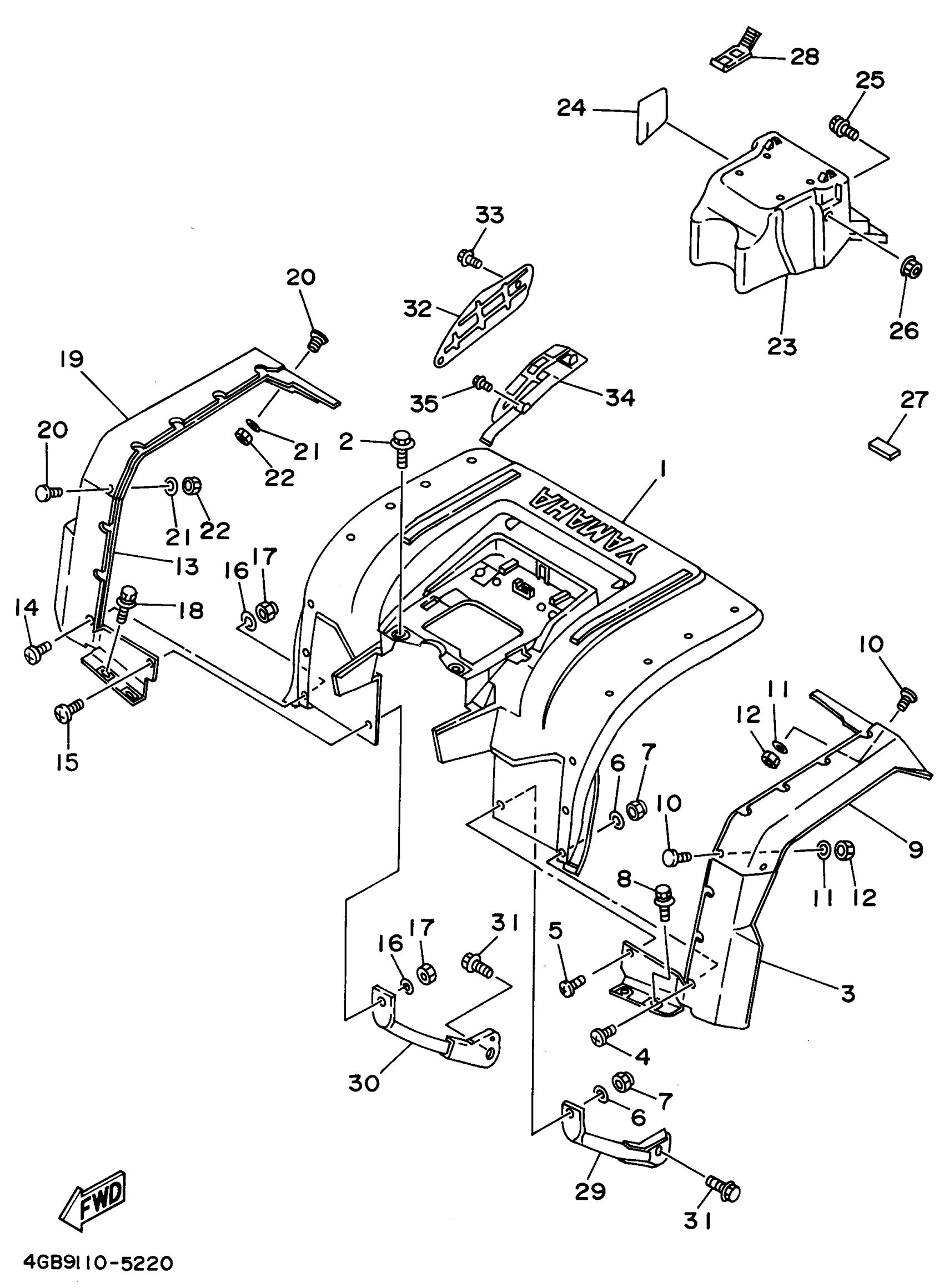

Yamaha YFM400FWG_MNH (KODIAK 4WD) 4SH1 1995 REAR FENDER Diagram
#
Description
Price
1
FENDER, REAR
4UH-21611-D0-00
Unavailable
1
FENDER,REAR
4GB-21611-41-00
Unavailable
3
FLAP
4GB-21621-01-00
Unavailable
5
SCREW, BINDING (8K8)
90154-05006-00
Unavailable
9
FLAP 3
4GB-2162H-10-00
Unavailable
13
FLAP
4GB-21691-01-00
Unavailable
15
SCREW, BINDING (8K8)
90154-05006-00
Unavailable
19
FLAP 4
4GB-2162J-10-00
Unavailable
23
BOX COMP.
1YW-2160A-20-00
Unavailable
24
PROTECTOR
4GB-21652-00-00
Unavailable
25
BOLT, WITH WASHER
90119-06226-00
Unavailable
26
NUT, W/ WASHER
95707-06600-00
Unavailable
27
DAMPER
1YW-21638-00-00
Unavailable
28
BAND
59V-21646-00-00
Unavailable
29
STAY, FENDER 1
2HR-21613-00-00
Unavailable
30
STAY, FENDER 2
2HR-21614-00-00
Unavailable
31
BOLT, FLANGE
95817-06012-00
Unavailable
32
COVER, REAR FENDER 2
2HR-2163E-00-00
Unavailable
33
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
34
COVER, REAR FENDER 3
2HR-2163F-01-00
Unavailable
35
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
