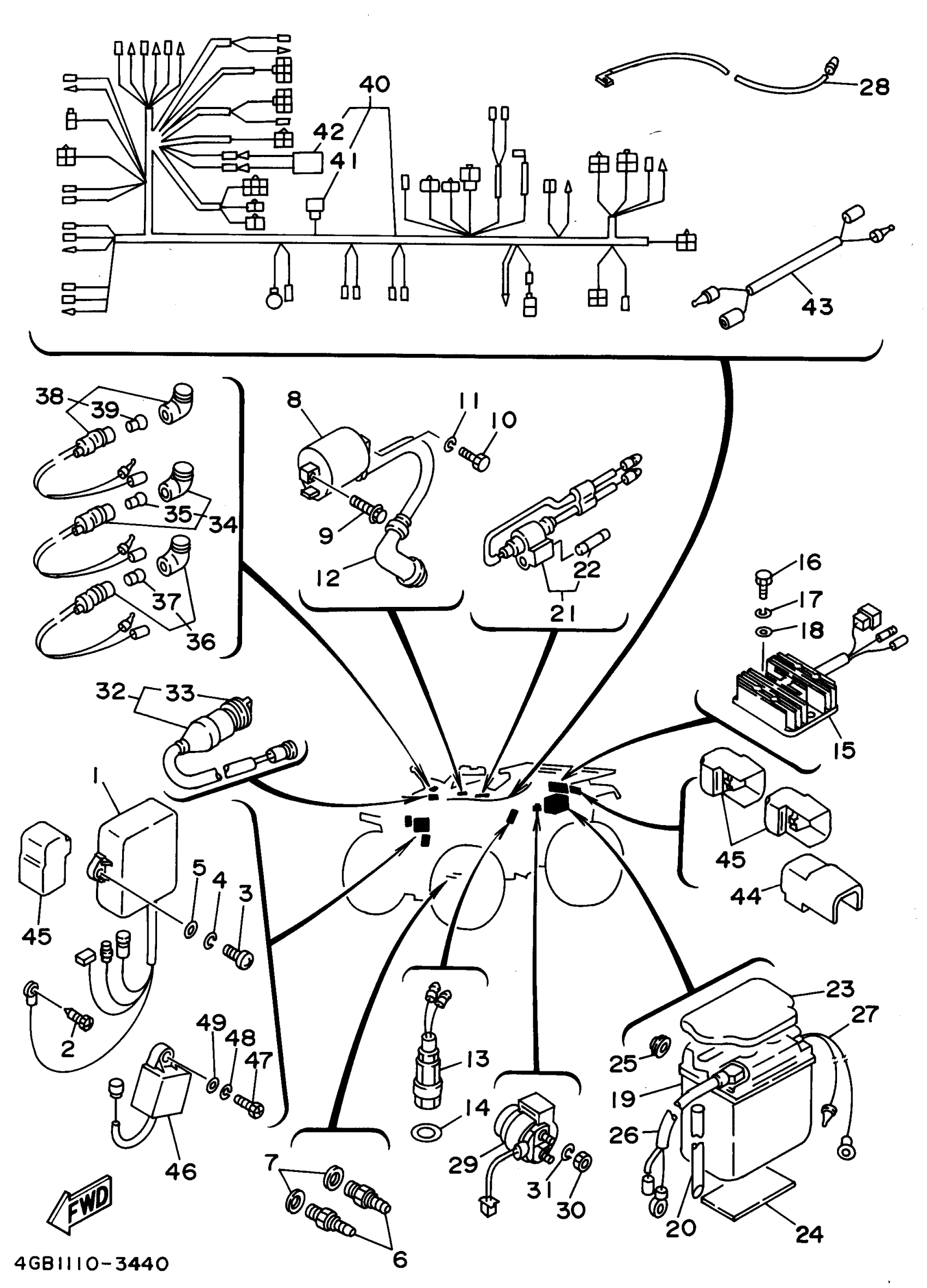

Yamaha YFM400FWG_MNH (KODIAK 4WD) 4SH1 1995 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

4GB-85540-00-00

Unavailable

2

SCREW, HEXAGON (18V)

90153-06044-00

$1.49

3

SCREW, PAN

98517-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER(6TA)

92907-06600-00

$2.72

6

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

7

GASKET (5R6)

90430-10171-00

$3.18

8

IGNITION COIL ASSY

3GD-82310-10-00

$153.99

9

BOLT (21V)

90109-06723-00

$8.49

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

WASHER, SPRING

92907-06100-00

$4.25

12

PLUG CAP ASSY

4VW-82370-00-00

$69.99

13

THERMO UNIT

4GB-83591-00-00

Unavailable

14

WASHER, PLATE 3412175700

90201-12172-00

$3.93

15

RECTIFIER & REGULATOR ASSEMBLY

4GB-81960-00-00

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

CB14-A2 GS BATTERY

CB1-4A200-00-00

Unavailable

20

HOSE (L1500)

90445-084J0-00

Unavailable

21

FUSE HOLDER ASSY

2NL-82150-00-00

Unavailable

22

FUSE (30A)

705-82151-01-00

Unavailable

23

COVER, BATTERY

24W-82129-00-00

Unavailable

24

SEAT, BATTERY

51Y-82122-00-00

Unavailable

25

PAD, BATTERY

371-82121-00-00

Unavailable

26

WIRE, PLUS LEAD

3LD-82115-00-00

Unavailable

27

WIRE, MINUS LEAD

2HR-82116-00-00

Unavailable

28

WIRE, LEAD

3HN-82541-00-00

Unavailable

29

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

30

NUT(JN5)

95317-06700-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

MAIN SWITCH ASSY

4GB-82510-12-00

Unavailable

33

CAP, KEY

3HN-82579-00-00

Unavailable

34

PILOT LIGHT ASSY

24W-83530-10-00

Unavailable

35

BULB (12V-3.4W)

123-83516-21-00

Unavailable

36

PILOT LIGHT ASSY

52G-83530-10-00

Unavailable

37

BULB (12V-3.4W)

123-83516-21-00

Unavailable

38

PILOT LIGHT ASSEMBLY

3FA-83530-10-00

Unavailable

39

BULB (12V-3.4W)

123-83516-21-00

Unavailable

40

WIRE HARNESS ASSEMBLY

4GB-82590-20-00

Unavailable

41

DIODE ASSY

3WP-81980-00-00

Unavailable

42

CIRCUIT BREAKER ASSY

5GT-82180-00-00

Unavailable

43

WIRE, LEAD

59V-82541-00-00

Unavailable

44

RELAY ASSY (1UY-92)

1UY-81950-92-00

Unavailable

45

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

46

MOTOR CONTROL UNIT ASSEMBLY

4GB-86510-00-00

Unavailable

47

SCREW, PAN

98517-06020-00

$8.49

48

WASHER, SPRING

92995-06100-00

Unavailable

49

WASHER(6TA)

92907-06600-00

$2.72

50

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

51

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
