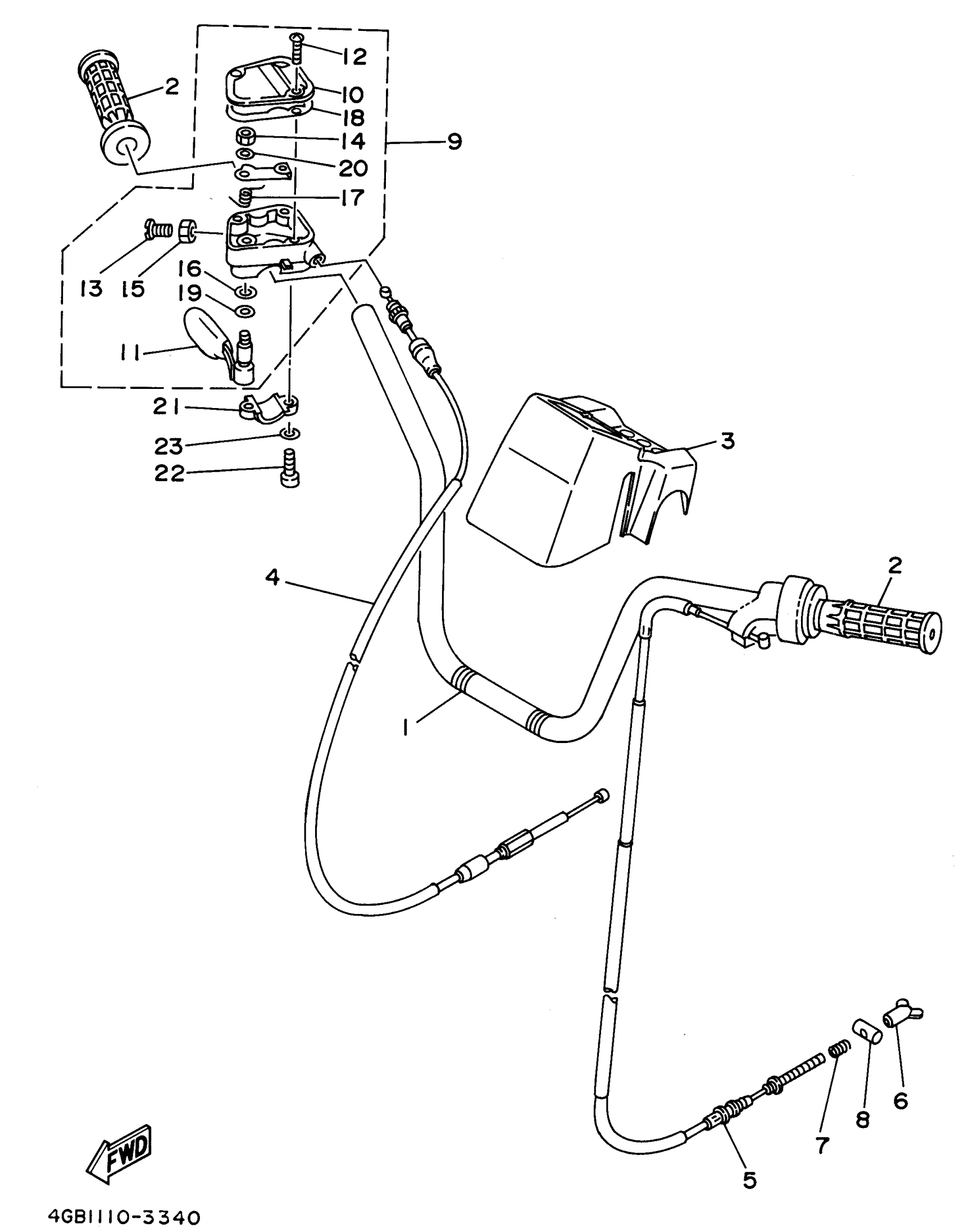

Yamaha YFM400FWG (KODIAK 4WD) 4GB9 1995 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

3HN-26111-00-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR, HANDLEBAR

4GB-26124-00-00

Unavailable

4

CABLE, THROTTLE 1

3HN-26311-10-00

$51.99

5

CABLE, BRAKE

4SH-26341-00-00

$86.99

6

NUT, AJUSTING

20E-26343-00-00

$27.99

7

SPRING, COMPRESSION (29U)

90501-10782-00

$8.49

8

PIN 1562723700

90249-12008-00

$8.49

9

THROTTLE LEVER ASSY

1NV-26250-01-00

Unavailable

10

. CAP, GEAR

1NV-2628F-00-00

Unavailable

11

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

12

SCREW, PAN

98517-05012-00

$4.73

13

SCREW, PAN HEAD

98517-05020-00

$4.25

14

NUT, U

95617-05100-00

$9.49

15

NUT, HEXAGON SMALL

95317-05700-00

$8.49

16

OIL SEAL (9X15X4-256)

93104-09025-00

Unavailable

17

SPRING

1NV-26304-00-00

Unavailable

18

. GASKET

1NV-2628G-00-00

Unavailable

19

WASHER

1NV-26129-00-00

Unavailable

20

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

21

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

22

SCREW, PAN HEAD

98517-05020-00

$4.25

23

WASHER(3SX)

92907-05100-00

Unavailable
