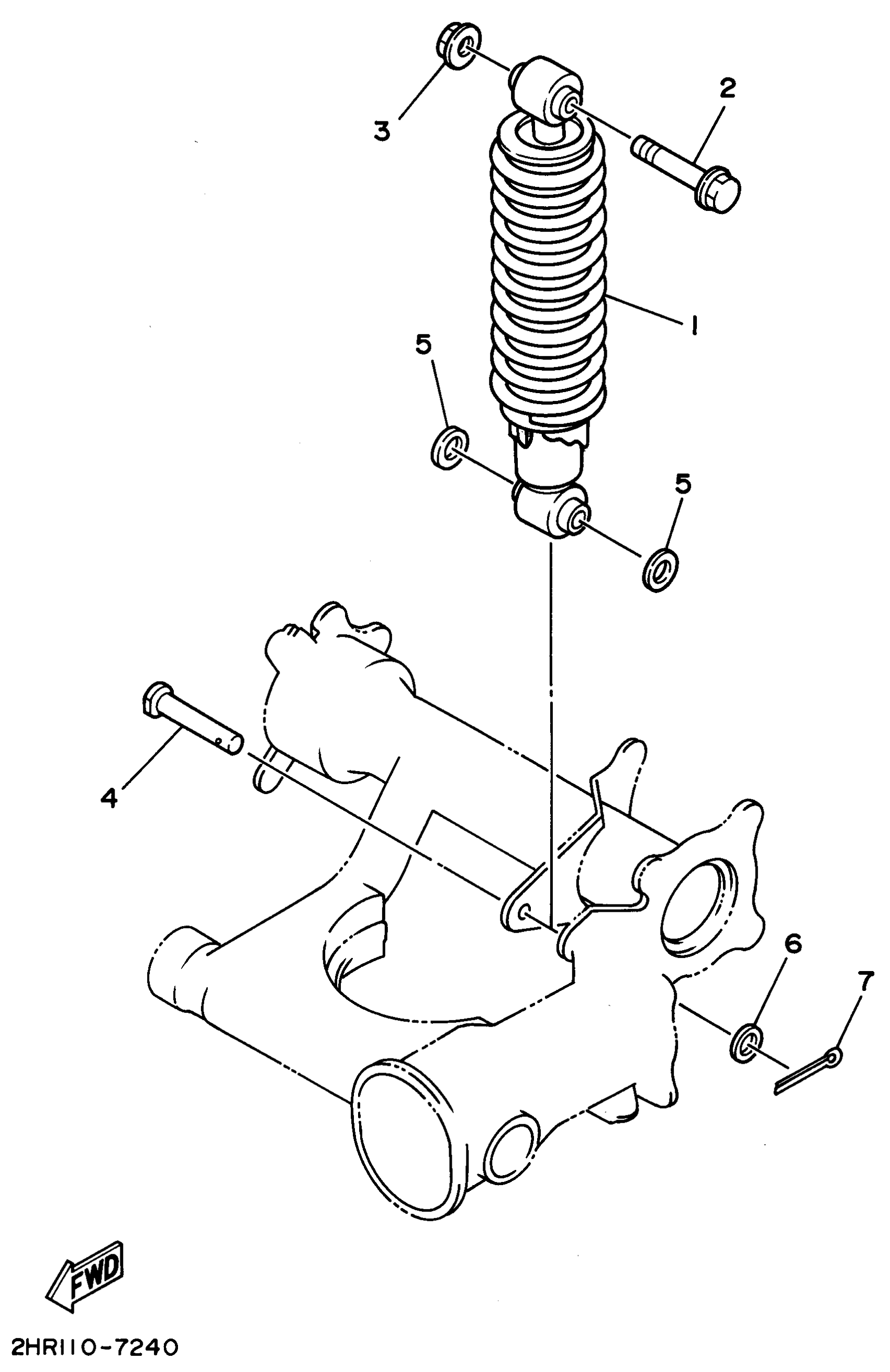

Yamaha YFM400FWG (KODIAK 4WD) 4GB9 1995 REAR SUSPENSION Diagram

#

Description

Price

1

SHK/ABS ASSY,REAR

3HN-22210-30-33

Unavailable

2

BOLT, WASHER BASED(1YW)

90105-12425-00

$8.27

3

NUT, SELF LOCKING (1M1)

90185-12072-00

$7.77

4

PIN, CLEVIS (10V)

90240-12092-00

$7.32

5

COVER, THRUST

1W1-22128-00-00

$16.83

6

WASHER, PLATE(55K)

90201-127J6-00

$5.43

7

PIN, COTTER

91490-30030-00

$6.88
