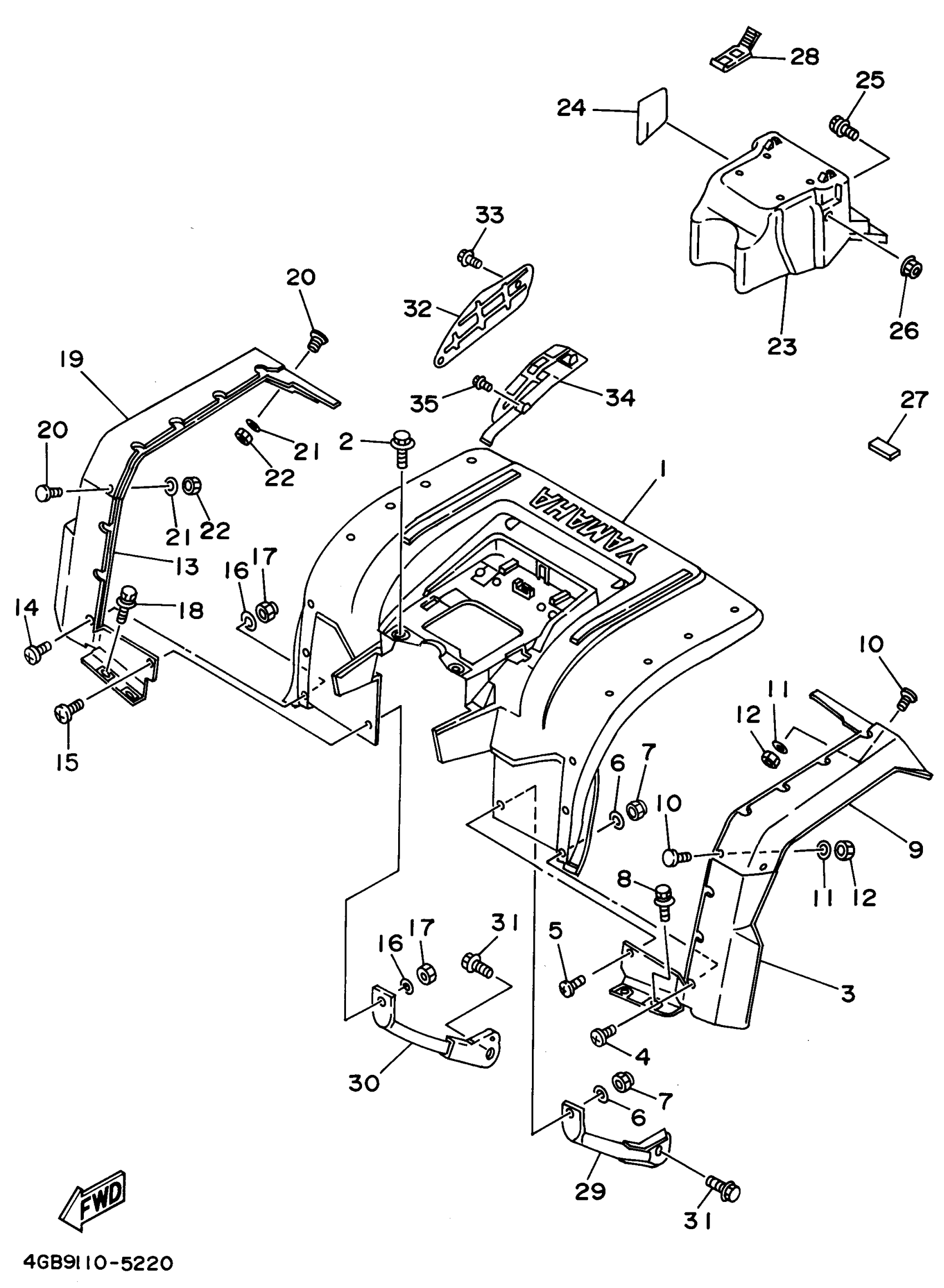

Yamaha YFM400FWG (KODIAK 4WD) 4GB9 1995 REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR

4UH-21611-D0-00

Unavailable

1

FENDER,REAR

4GB-21611-41-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

FLAP

4GB-21621-01-00

Unavailable

4

SCREW, BINDING (8R1)

90154-05011-00

$4.29

5

SCREW, BINDING (8K8)

90154-05006-00

Unavailable

6

WASHER, PLATE 8067717800

90201-05029-00

$8.49

7

NUT, NYLON

95707-05300-00

$4.24

8

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

9

FLAP 3

4GB-2162H-10-00

Unavailable

10

SCREW, BINDING (8R1)

90154-05011-00

$4.29

11

WASHER, PLATE 8067717800

90201-05029-00

$8.49

12

NUT, NYLON

95707-05300-00

$4.24

13

FLAP

4GB-21691-01-00

Unavailable

14

SCREW, BINDING (8R1)

90154-05011-00

$4.29

15

SCREW, BINDING (8K8)

90154-05006-00

Unavailable

16

WASHER, PLATE 8067717800

90201-05029-00

$8.49

17

NUT, NYLON

95707-05300-00

$4.24

18

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

19

FLAP 4

4GB-2162J-10-00

Unavailable

20

SCREW, BINDING (8R1)

90154-05011-00

$4.29

21

WASHER, PLATE 8067717800

90201-05029-00

$8.49

22

NUT, NYLON

95707-05300-00

$4.24

23

BOX COMP.

1YW-2160A-20-00

Unavailable

24

PROTECTOR

4GB-21652-00-00

Unavailable

25

BOLT, WITH WASHER

90119-06226-00

Unavailable

26

NUT, W/ WASHER

95707-06600-00

Unavailable

27

DAMPER

1YW-21638-00-00

Unavailable

28

BAND

59V-21646-00-00

Unavailable

29

STAY, FENDER 1

2HR-21613-00-00

Unavailable

30

STAY, FENDER 2

2HR-21614-00-00

Unavailable

31

BOLT, FLANGE

95817-06012-00

Unavailable

32

COVER, REAR FENDER 2

2HR-2163E-00-00

Unavailable

33

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

34

COVER, REAR FENDER 3

2HR-2163F-01-00

Unavailable

35

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable
