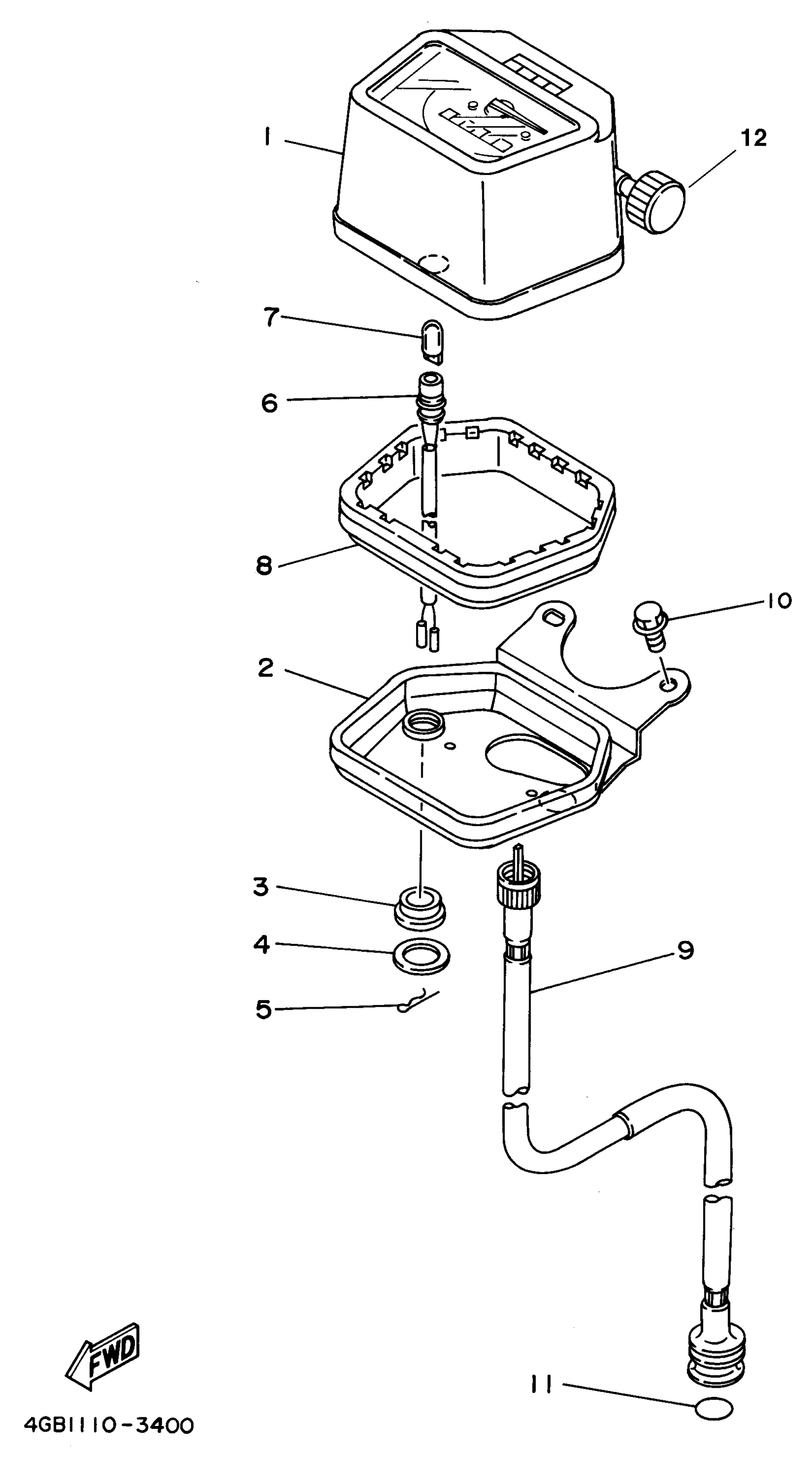

Yamaha YFM400FWG (KODIAK 4WD) 4GB9 1995 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY (MILE)

4GB-83570-00-00

Unavailable

2

BRACKET, METER

4GB-83519-00-00

Unavailable

3

DAMPER 2

1M1-83526-01-00

$3.52

4

WASHER, SPECIAL

4X8-83524-00-00

$6.36

5

CLIP (156-83525-00)

90468-10050-00

$2.16

6

SOCKET CORD ASSY

5E2-83509-20-00

$24.52

7

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.64

8

DAMPER

5Y0-83513-00-00

Unavailable

9

SPEEDOMETER CABLE ASSY

2HR-83550-01-00

Unavailable

10

BOLT, FLANGE

95812-06010-00

$2.71

11

O-RING (26H)

93210-14579-00

$5.05

12

SPEEDOMETER, KNOB

4GB-83570-KN-0B

Unavailable
