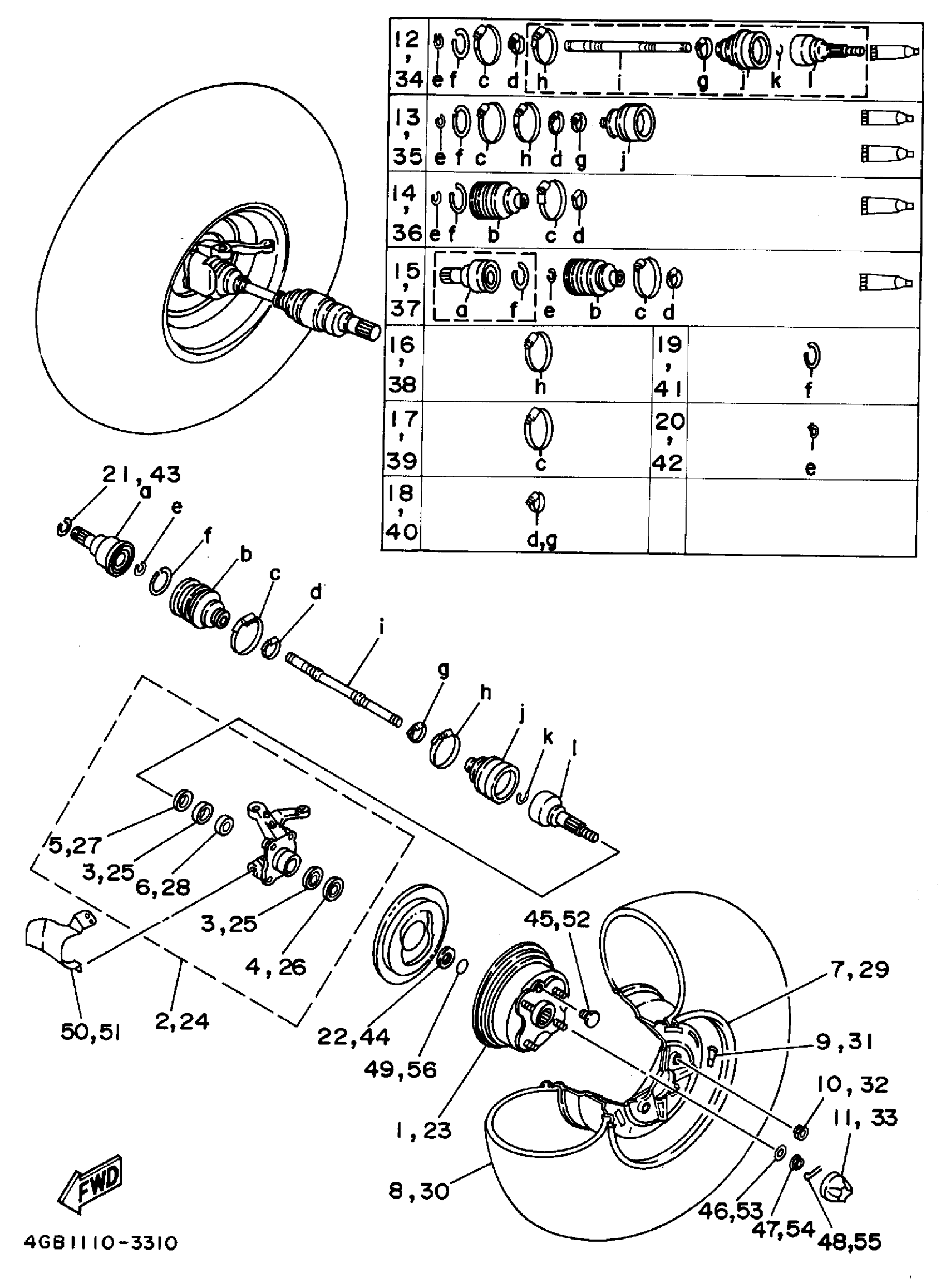

Yamaha YFM400FWF_MNH (KODIAK 4WD) 4GB5 1994 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

3HN-25111-02-00

$246.15

2

STEERING,KNUCKLE (L)

3HN-23501-02-00

Unavailable

3

BEARING(2HR)

93306-00612-00

$40.00

4

OIL SEAL(2HR)

93102-38383-00

$14.22

5

OIL SEAL(3HN)

93102-38417-00

$14.38

6

SPACER(2HR)

90560-30325-00

$10.60

7

FRONT WHEEL COMP.

3HN-25180-00-3H

Unavailable

8

TIRE (AT25X8-12 KT402)

94108-126Y6-00

Unavailable

9

VALVE, RIM(2GH)

93900-00030-00

$13.50

10

NUT(2HR)

90179-10540-00

$3.67

11

CAP, WHEEL

52H-2512A-00-00

$18.52

12

BALL JOINT SET

3HN-2510F-01-00

$569.99

13

BOOT SET (BALL JOINT)

3HN-2510G-00-00

$74.83

14

BOOT SET (DOUBLE OFFSET JOINT)

3HN-2510H-00-00

$76.17

15

DOUBLE 0FF SET JOINT

3HN-2510J-00-00

Unavailable

16

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

Unavailable

17

. BOOT BAND(DOUBLE OFFSETJOINT)

3HN-2511H-00-00

Unavailable

18

BOOT BAND (SMALL)

3HN-2512G-01-00

Unavailable

19

CIRCLIP

2HR-2512H-00-00

Unavailable

20

SNAP RING

2HR-2512J-00-00

Unavailable

21

CIRCLIP(2HR)

93450-22119-00

Unavailable

22

COLLAR(3HN)

90387-281V8-00

Unavailable

23

HUB, FRONT

3HN-25111-02-00

$246.15

24

STEERING, KNUCKLE ASSY (RIGHT)

3HN-23502-02-00

Unavailable

25

BEARING(2HR)

93306-00612-00

$40.00

26

OIL SEAL(2HR)

93102-38383-00

$14.22

27

OIL SEAL(3HN)

93102-38417-00

$14.38

28

SPACER(2HR)

90560-30325-00

$10.60

29

FRONT WHEEL COMP.

3HN-25180-00-3H

Unavailable

30

TIRE (AT25X8-12 KT402)

94108-126Y6-00

Unavailable

31

VALVE, RIM(2GH)

93900-00030-00

$13.50

32

NUT(2HR)

90179-10540-00

$3.67

33

CAP, WHEEL

52H-2512A-00-00

$18.52

34

BALL JOINT SET

3HN-2510F-01-00

$569.99

35

BOOT SET (BALL JOINT)

3HN-2510G-00-00

$74.83

36

BOOT SET (DOUBLE OFFSET JOINT)

3HN-2510H-00-00

$76.17

37

DOUBLE 0FF SET JOINT

3HN-2510J-00-00

Unavailable

38

BOOT BAND (BALL JOINT)

3HN-2511G-01-00

Unavailable

39

. BOOT BAND(DOUBLE OFFSETJOINT)

3HN-2511H-00-00

Unavailable

40

BOOT BAND (SMALL)

3HN-2512G-01-00

Unavailable

41

CIRCLIP

2HR-2512H-00-00

Unavailable

42

SNAP RING

2HR-2512J-00-00

Unavailable

43

CIRCLIP(2HR)

93450-22119-00

Unavailable

44

COLLAR(3HN)

90387-281V8-00

Unavailable

45

CAP

2NL-25335-01-00

Unavailable

46

WASHER, PLATE(3HN)

90201-163M0-00

Unavailable

47

NUT, CASTLE

90171-16001-00

Unavailable

48

PIN, COTTER

91490-30030-00

Unavailable

49

O-RING(22F)

93210-26662-00

Unavailable

50

COVER, RING

4GB-2331M-00-00

Unavailable

51

COVER, RING

4GB-2331N-00-00

Unavailable

52

CAP

2NL-25335-01-00

Unavailable

53

WASHER, PLATE(3HN)

90201-163M0-00

Unavailable

54

NUT, CASTLE

90171-16001-00

Unavailable

55

PIN, COTTER

91490-30030-00

Unavailable

56

O-RING(22F)

93210-26662-00

Unavailable
