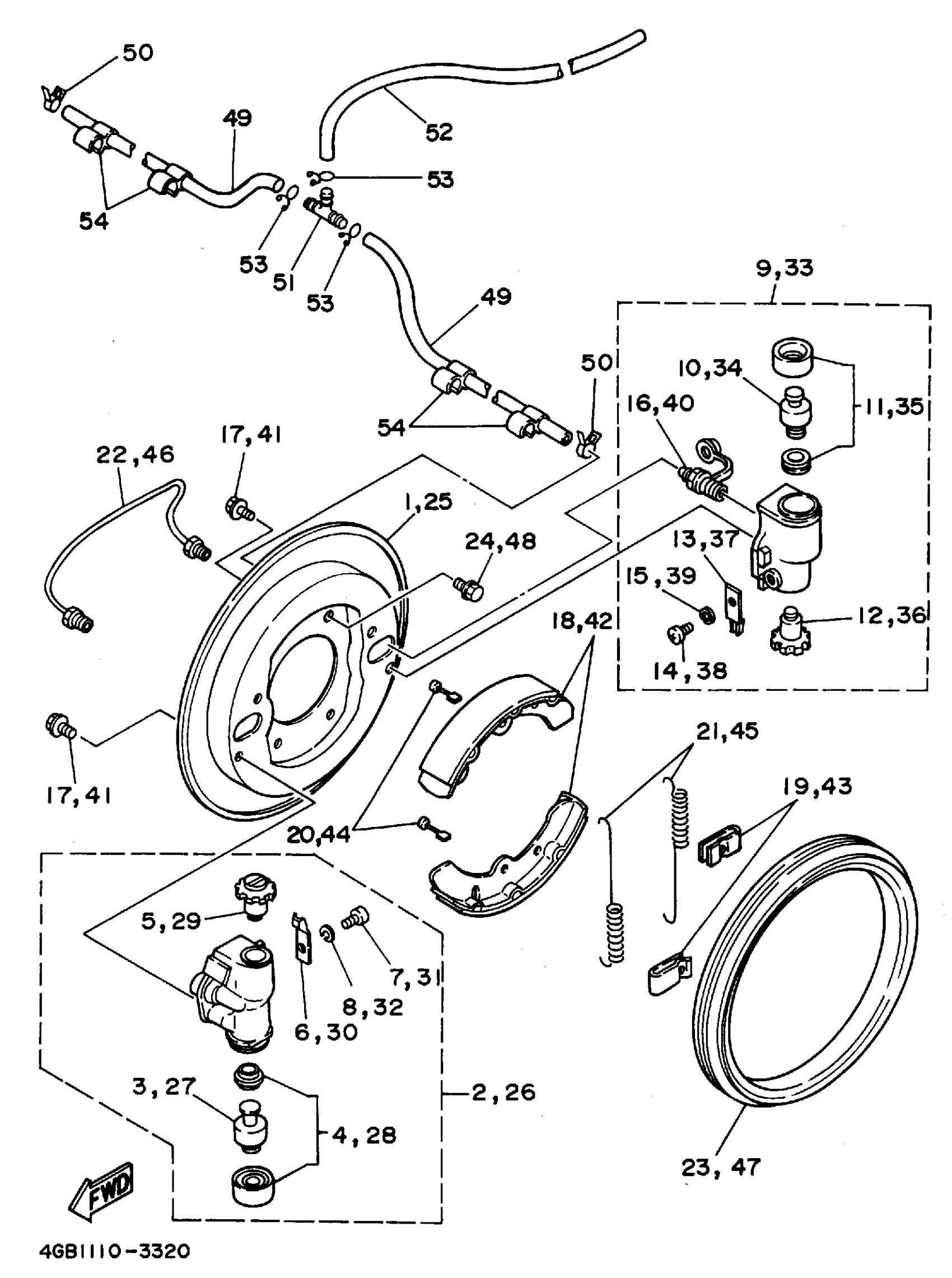

Yamaha YFM400FWF_MNH (KODIAK 4WD) 4GB5 1994 FRONT BRAKE Diagram

#

Description
Price

1

BACKING PLATE SUB ASSEMBLY (L/H)

3HN-27208-10-00

Unavailable

2

WHEEL CYLINDER 1 (L/H)

3HN-25950-00-00

$121.70

3

PISTON

2HR-25814-00-00

$18.45

4

CUP SET

2HR-W0069-00-00

$19.26

5

NUT BOLT COMP.

2HR-25738-00-00

$29.95

6

. LOCK SPRING

2HR-25952-00-00

$4.99

7

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

9

WHEEL CYLINDER 2 (L/H)

3HN-25960-00-00

$121.70

10

PISTON

2HR-25814-00-00

$18.45

11

CUP SET

2HR-W0069-00-00

$19.26

12

NUT BOLT COMP.

2HR-25738-00-00

$29.95

13

. LOCK SPRING

2HR-25952-00-00

$4.99

14

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

15

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

16

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

BRAKE SHOE SET

3HN-W2535-10-00

Unavailable

19

SPRING, SHOE CLAMP

J10-27281-00-00

$2.11

20

PIN, SHOE HOLD DOWN

3HN-27282-00-00

Unavailable

21

SPRING, RETURN

2HR-25133-00-00

Unavailable

22

PIPE, BRAKE 3

3HN-25883-00-00

Unavailable

23

SEAL, PLATE DUST

3GH-25129-10-00

Unavailable

24

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

25

BACKING PLATE SUB ASSEMBLY (R/H)

3HN-27208-00-00

Unavailable

26

WHEEL CYLINDER 1 (R/H)

3HN-25980-00-00

Unavailable

27

PISTON

2HR-25814-00-00

$18.45

28

CUP SET

2HR-W0069-00-00

$19.26

29

NUT BOLT COMP.

2HR-25748-00-00

Unavailable

30

. LOCK SPRING

2HR-25952-00-00

$4.99

31

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

32

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

33

WHEEL CYLINDER 2 (R/H)

3HN-25990-00-00

Unavailable

34

PISTON

2HR-25814-00-00

$18.45

35

CUP SET

2HR-W0069-00-00

$19.26

36

NUT BOLT COMP.

2HR-25748-00-00

Unavailable

37

. LOCK SPRING

2HR-25952-00-00

$4.99

38

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

39

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

40

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

41

BOLT, FLANGE

95817-06012-00

Unavailable

42

BRAKE SHOE SET

3HN-W2535-10-00

Unavailable

43

SPRING, SHOE CLAMP

J10-27281-00-00

$2.11

44

PIN, SHOE HOLD DOWN

3HN-27282-00-00

Unavailable

45

SPRING, RETURN

2HR-25133-00-00

Unavailable

46

PIPE, BRAKE 3

3HN-25883-00-00

Unavailable

47

SEAL, PLATE DUST

3GH-25129-10-00

Unavailable

48

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

49

HOSE (L1050)

90445-072G8-00

Unavailable

50

CLIP(42X)

90467-07093-00

Unavailable

51

WAY 3(33M)

90413-05014-00

Unavailable

52

HOSE (L1050)

90445-072G8-00

Unavailable

53

CLIP (16G)

90467-08021-00

Unavailable

54

CLIP

90467-06043-00

Unavailable
