Description

Price

1

PIPE, EXHAUST 1

4GB-14611-04-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

1YW-14628-00-00

Unavailable

3

MUFFLER 1

2HR-14711-03-00

$298.99

4

GASKET, MUFFLER

3YF-14714-00-00

$36.99

5

BOLT, HEXAGON

97017-08025-00

$10.49

6

PIPE, OUTLET

59V-14752-00-00

$153.99

7

BOLT,HEXAGON

97017-06008-00

$3.55

8

WASHER(6TA)

92907-06600-00

$2.72

9

BOLT (11T)

90101-06576-00

$8.49

10

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

11

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

12

WASHER, WAVE(3RW)

90206-06090-00

$8.49

13

WASHER, PLATE(47X)

90201-086J0-00

$9.49

14

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

15

NUT (1AE)

90179-06500-00

$7.49

16

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

17

WASHER (853)

90201-08326-00

Unavailable

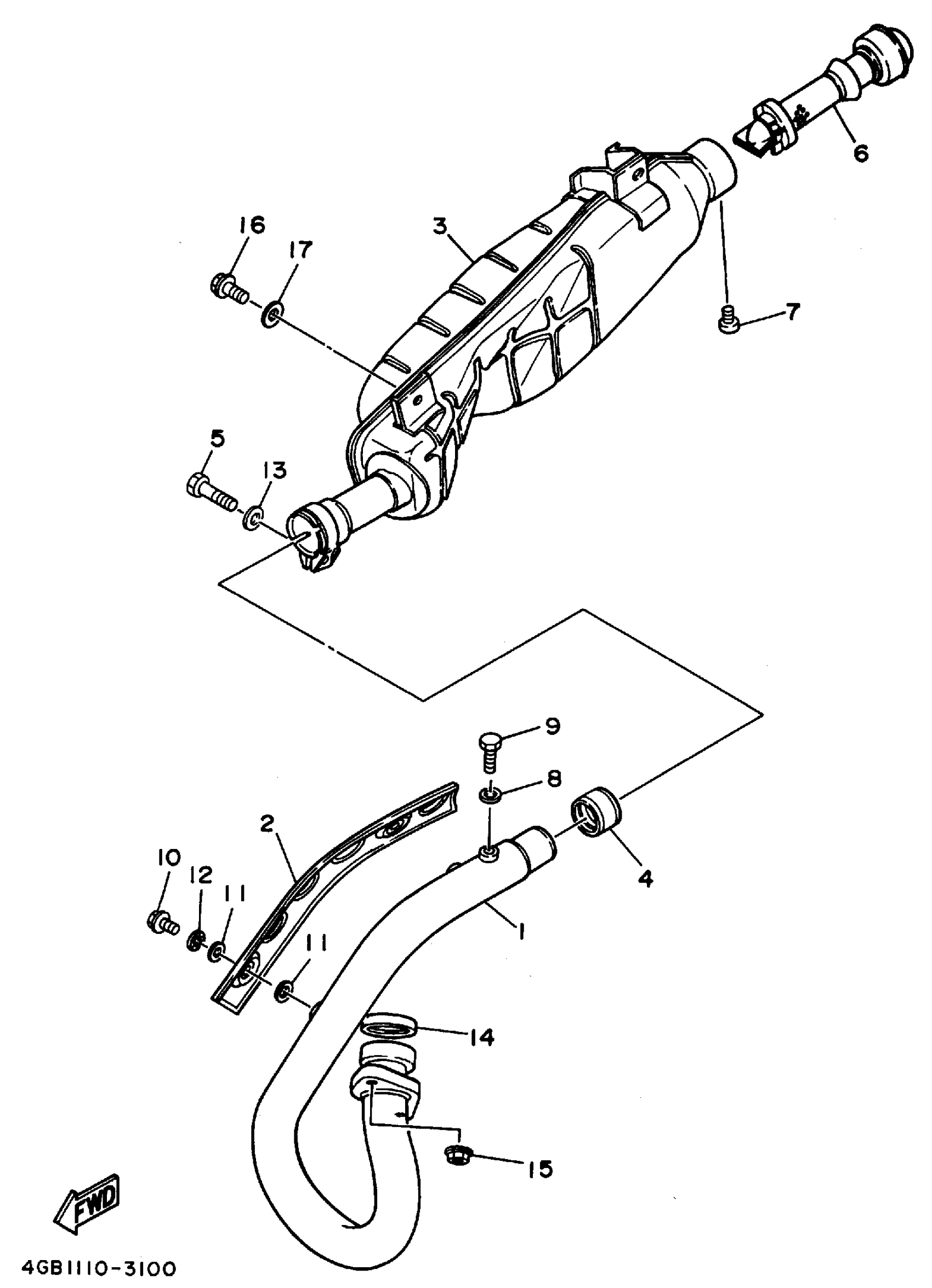

Yamaha YFM400FWF_MNH (KODIAK 4WD) 4GB5 1994 EXHAUST Diagram

PIPE, EXHAUST 1

PROTECTOR, EXHAUST PIPE

MUFFLER 1

GASKET, MUFFLER

BOLT, HEXAGON

PIPE, OUTLET

BOLT,HEXAGON

WASHER(6TA)

BOLT (11T)

BOLT, FLANGE(4MY)

WASHER, PROTECTOR

WASHER, WAVE(3RW)

WASHER, PLATE(47X)

GASKET, EXHAUST PIPE

NUT (1AE)

BOLT, FLANGE(JN5)

WASHER (853)
