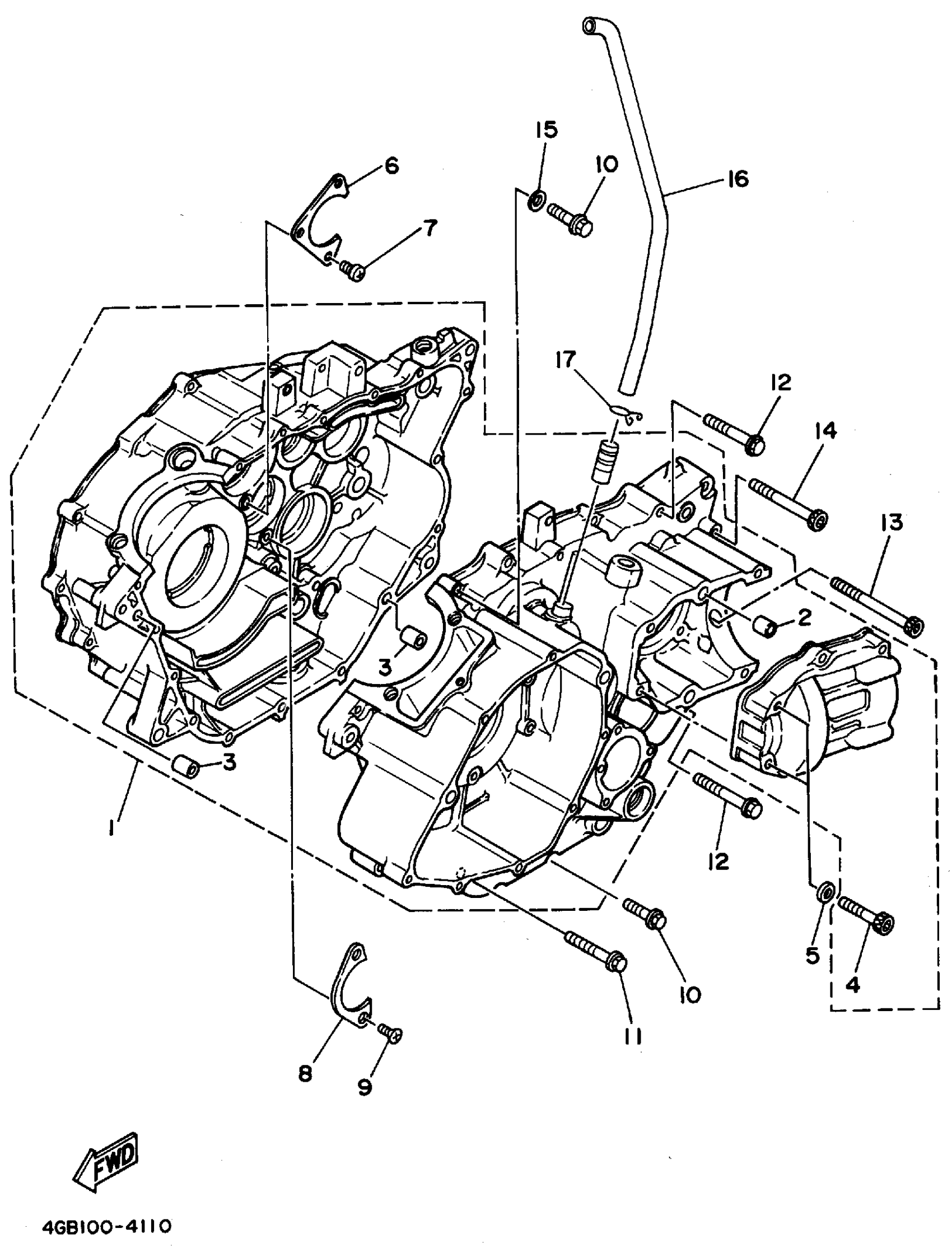

Yamaha YFM400FWF_MNH (KODIAK 4WD) 4GB5 1994 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

1YW-15100-07-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT, SOCKET

91314-06040-00

$8.49

5

GASKET 256113960000

90430-06014-00

Unavailable

6

PLATE, BEARING COVER

3R4-15381-00-00

$4.68

7

SCREW, PAN

98517-06012-00

$3.78

8

PLATE, BEARING COVER

1UY-15383-00-00

Unavailable

9

SCREW, FLAT

98704-06016-00

Unavailable

10

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

11

BOLT, SMALL FLANGE

95027-06050-00

$2.55

12

BOLT, SMALL FLANGE

95027-06060-00

$2.87

13

BOLT, SOCKET

91314-06090-00

$8.49

14

BOLT, SOCKET

91314-06070-00

$8.49

15

GASKET 256113960000

90430-06014-00

Unavailable

16

PIPE, BREATHER 1

2HR-11166-00-00

Unavailable

17

CLIP (371)

90467-14015-00

Unavailable
