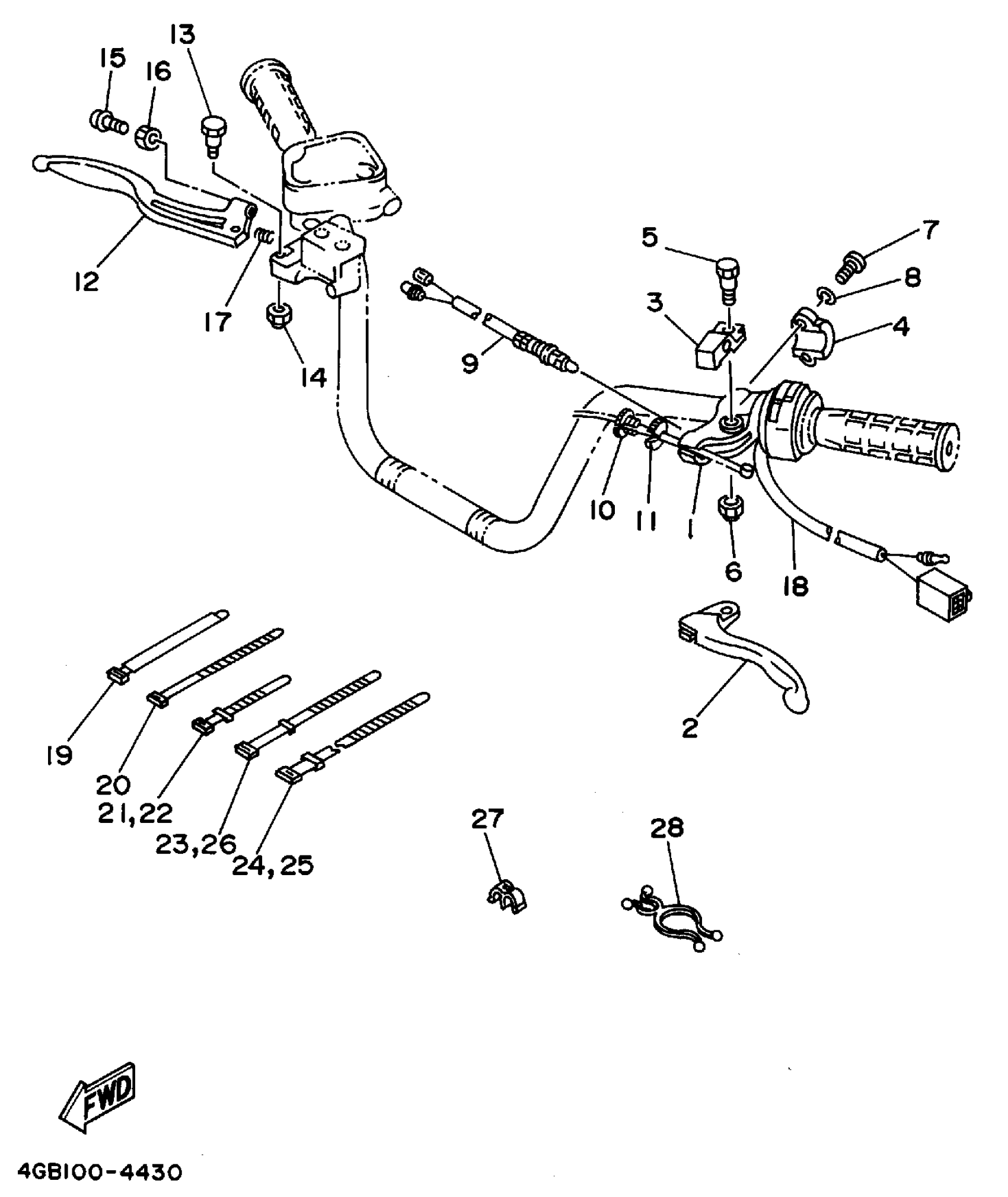

Yamaha YFM400FWF (KODIAK 4WD) 4GB5 1994 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

HOLDER SET, LEVER 1

99999-03034-00

$84.76

2

LEVER 1

2HT-83912-01-00

$32.59

3

LEVER, LOCK

1YW-83965-00-00

Unavailable

4

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

5

BOLT(3GB)

90109-061F3-00

$4.51

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

SCREW, PAN HEAD

98517-05020-00

$1.26

8

WASHER(3SX)

92907-05100-00

$5.76

9

FRONT STOP SWITCH ASSY

1YW-83980-00-00

$58.58

10

BOLT

90123-08002-00

$8.57

11

NUT

90179-08030-00

$3.63

12

LEVER 2

38W-83922-01-00

$53.09

13

BOLT (4L0)

90109-06577-00

$5.03

14

NUT, SELF-LOCKING

95617-06100-00

$2.17

15

SCREW (2L0)

90149-06131-00

$5.75

16

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

17

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

18

SWITCH, HANDLE 3

4GB-83973-09-00

Unavailable

19

BAND

341-26397-01-00

Unavailable

20

CLAMP

1UY-82591-00-00

Unavailable

21

BAND, SWITCH CORD

437-83936-01-00

Unavailable

22

BAND, SWITCH CORD

437-83936-01-00

Unavailable

23

BAND, SWITCH CORD

437-83936-11-00

Unavailable

24

BAND, SWITCH CORD

437-83936-11-00

Unavailable

25

BAND, SWITCH CORD

437-83936-11-00

Unavailable

26

BAND, SWITCH CORD

437-83936-11-00

Unavailable

27

CLIP(33M)

90468-15139-00

Unavailable

28

CLAMP(J38)

90464-26114-00

Unavailable
