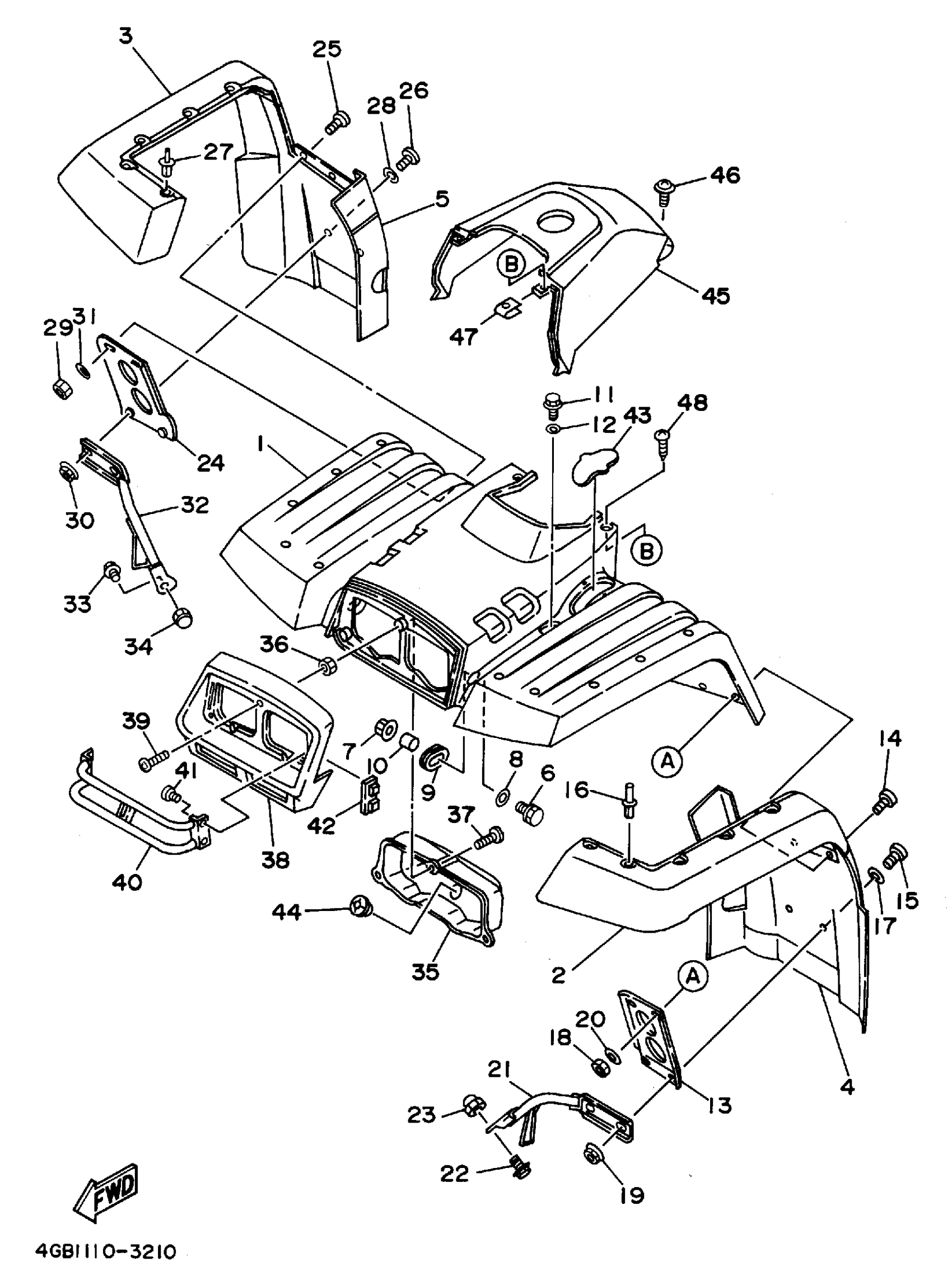

Yamaha YFM400FWF (KODIAK 4WD) 4GB5 1994 FRONT FENDER Diagram
#
1
FENDER, FRONT
4GB-21511-20-00
Unavailable
1
FENDER, FRONT
3HN-21511-61-00
Unavailable
2
FENDER, OVER
4GB-21551-10-00
Unavailable
3
FENDER, OVER 2
4GB-21555-10-00
Unavailable
4
FENDER, OVER 3
4GB-21559-00-00
Unavailable
5
FENDER, OVER 4
4GB-21560-00-00
Unavailable
15
SCREW, BINDING (8K8)
90154-05006-00
Unavailable
16
RIVET (739 BRAKE PEDAL)
90267-63047-00
Unavailable
17
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
18
NUT, NYLON
95707-05300-00
Unavailable
19
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
20
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
21
STAY, FENDER 1
4GB-21513-00-00
Unavailable
22
BOLT, BUTTON HEAD
92017-08012-00
Unavailable
23
NUT(6L2)
95333-08600-00
Unavailable
24
PLATE 2
2HR-21524-00-00
Unavailable
26
SCREW, BINDING (8K8)
90154-05006-00
Unavailable
27
RIVET (739 BRAKE PEDAL)
90267-63047-00
Unavailable
28
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
29
NUT, NYLON
95707-05300-00
Unavailable
30
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
31
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
32
STAY, FENDER 2
4GB-21514-00-00
Unavailable
33
BOLT, BUTTON HEAD
92017-08012-00
Unavailable
34
NUT(6L2)
95333-08600-00
Unavailable
35
BODY, HEADLIGHT
2HR-84111-00-00
Unavailable
36
NUT
90170-05362-00
Unavailable
37
SCREW, BINDING
98907-05014-00
Unavailable
38
PANEL, FRONT
2HR-23391-00-00
Unavailable
39
SCREW, BINDING (10V)
90154-05013-00
Unavailable
40
GUARD, HEADLIGHT
2HR-84169-00-00
Unavailable
41
SCREW, BINDING
98907-06012-00
Unavailable
42
PLATE, STAY FITTING 1
2HR-21526-00-00
Unavailable
43
DAMPER 1
4GB-21541-40-00
Unavailable
43
DAMPER 1
4GB-21541-50-00
Unavailable
44
. GROMMET
90480-25461-00
Unavailable
45
TOP COVER ASSEMBLY (3HN-W217A-10-00)
3HN-2171A-10-00
Unavailable
45
COVER, TOP
3HN-2171A-80-00
Unavailable
46
SCREW, PANHEAD W/WASHER (22F)
90159-06082-00
Unavailable
47
NUT, SPRING
90183-051A0-00
Unavailable
48
SCREW, BINDING(1UY)
90154-05041-00
Unavailable
