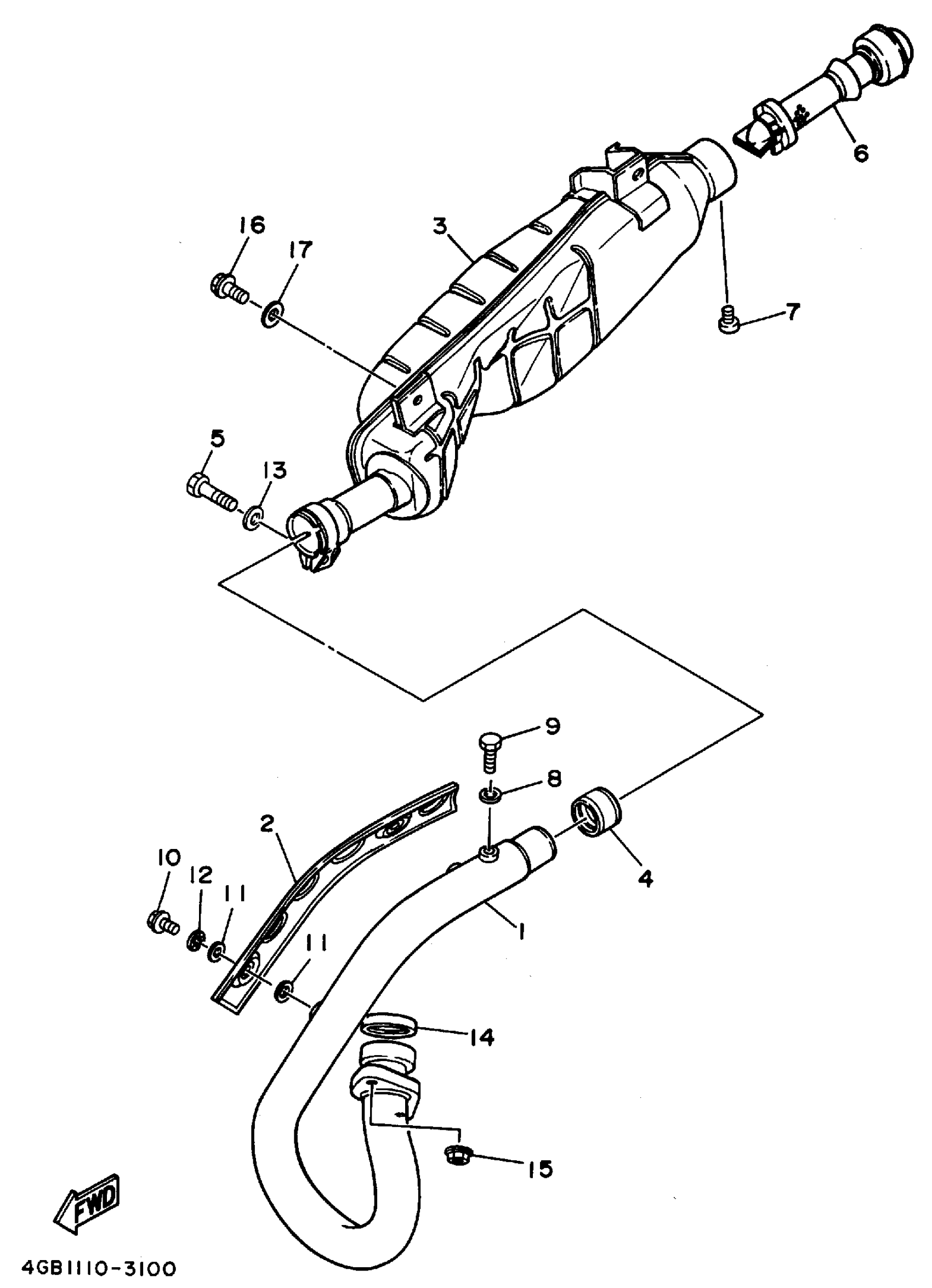

Yamaha YFM400FWF (KODIAK 4WD) 4GB5 1994 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

4GB-14611-04-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

1YW-14628-00-00

Unavailable

3

MUFFLER 1

2HR-14711-03-00

$247.10

4

GASKET, MUFFLER

3YF-14714-00-00

$27.78

5

BOLT, HEXAGON

97017-08025-00

$6.95

6

PIPE, OUTLET

59V-14752-00-00

$145.48

7

BOLT,HEXAGON

97017-06008-00

$2.52

8

WASHER(6TA)

92907-06600-00

$0.73

9

BOLT (11T)

90101-06576-00

$6.03

10

BOLT, FLANGE(4MY)

95027-06010-00

$2.31

11

WASHER, PROTECTOR

4BD-14766-00-00

$5.12

12

WASHER, WAVE(3RW)

90206-06090-00

$4.89

13

WASHER, PLATE(47X)

90201-086J0-00

$6.15

14

GASKET, EXHAUST PIPE

3GD-14613-00-00

$11.56

15

NUT (1AE)

90179-06500-00

$4.15

16

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

17

WASHER (853)

90201-08326-00

Unavailable
