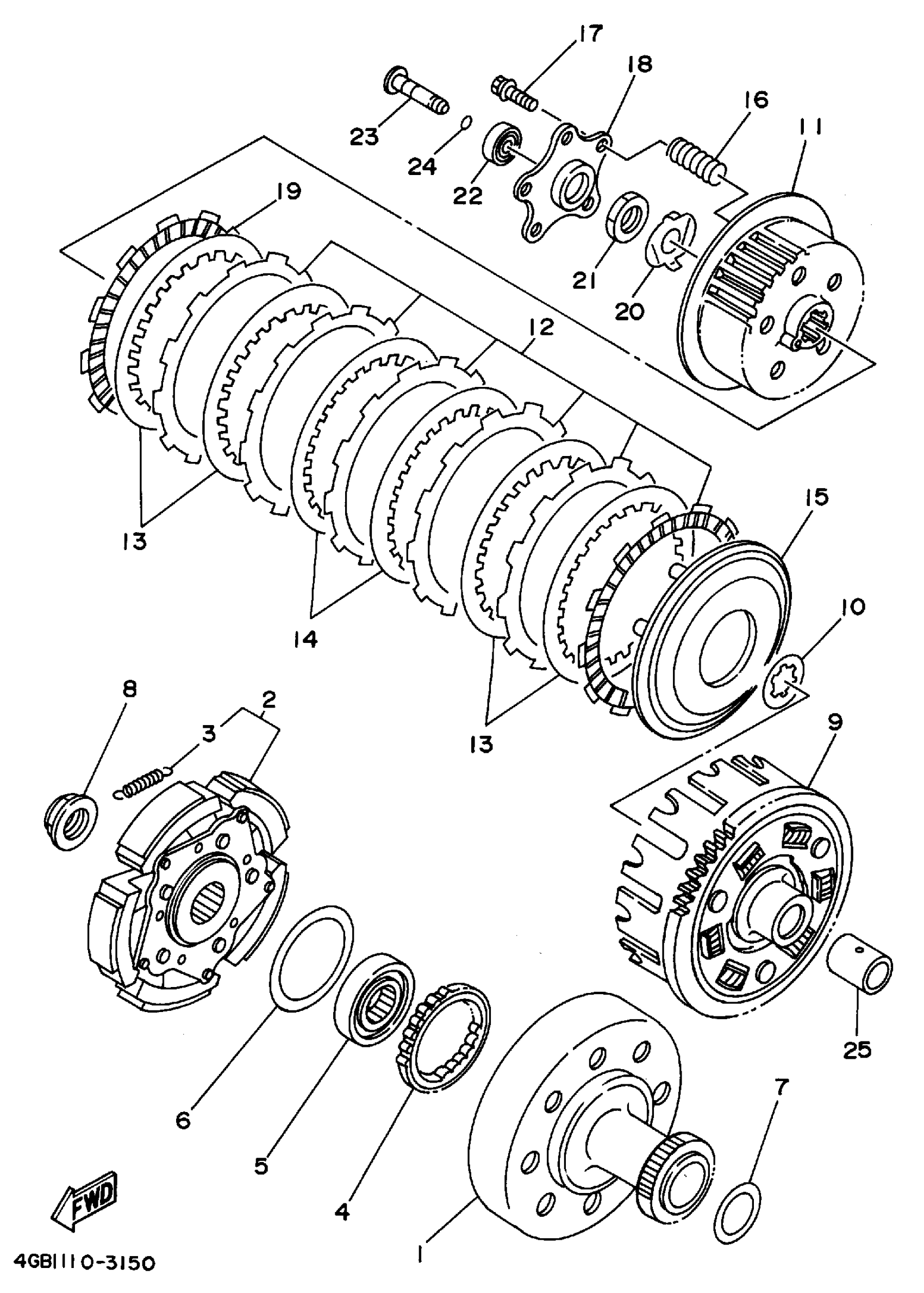

Yamaha YFM400FWF (KODIAK 4WD) 4GB5 1994 CLUTCH Diagram

#

Description
Price

1

HOUSING,CLUTCH

4GB-16611-01-00

Unavailable

2

CLUTCH CARRIER ASSY

4GB-16620-02-00

Unavailable

3

SPRING, CLUTCH WEIGHT 1

4GB-16626-01-00

Unavailable

4

BEARING, ONE WAY

1YW-16664-00-00

Unavailable

5

RETAINER, BEARING

4KB-16665-00-00

Unavailable

6

WASHER, PLATE(1YW)

90201-574L1-00

$11.49

7

WASHER, PLATE

90201-30008-00

$4.82

8

NUT

90179-22005-00

$28.99

9

PRIMARY DRIVEN GEAR COMP.

2NL-16150-00-00

$307.99

10

PLATE, THRUST 1

30X-16154-00-00

$25.99

11

BOSS, CLUTCH

1UY-16371-02-00

$129.99

12

PLATE, FRICTION

5Y1-16331-01-00

$29.99

13

PLATE, CLUTCH 2

168-16325-10-00

$14.49

14

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

15

PLATE, PRESSURE 1

1UY-16351-00-00

$113.99

16

SPRING, COMPRESSION (31A)

90501-23763-00

Unavailable

17

SCREW, WITH WASHER(1AE)

90159-06123-00

Unavailable

18

PLATE, PRESSURE 2

1UY-16352-00-00

Unavailable

19

PLATE, FRICTION

4H7-16321-02-00

Unavailable

20

WASHER, LOCK(1UY)

90215-16258-00

Unavailable

21

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

22

BRG,R-B 6000 26MM 19G KY

93306-00004-00

Unavailable

23

PLATE, PUSH

4GB-16358-00-00

Unavailable

24

O-RING (26H)

93210-06632-00

Unavailable

25

SPACER 1

1YW-16181-00-00

Unavailable
