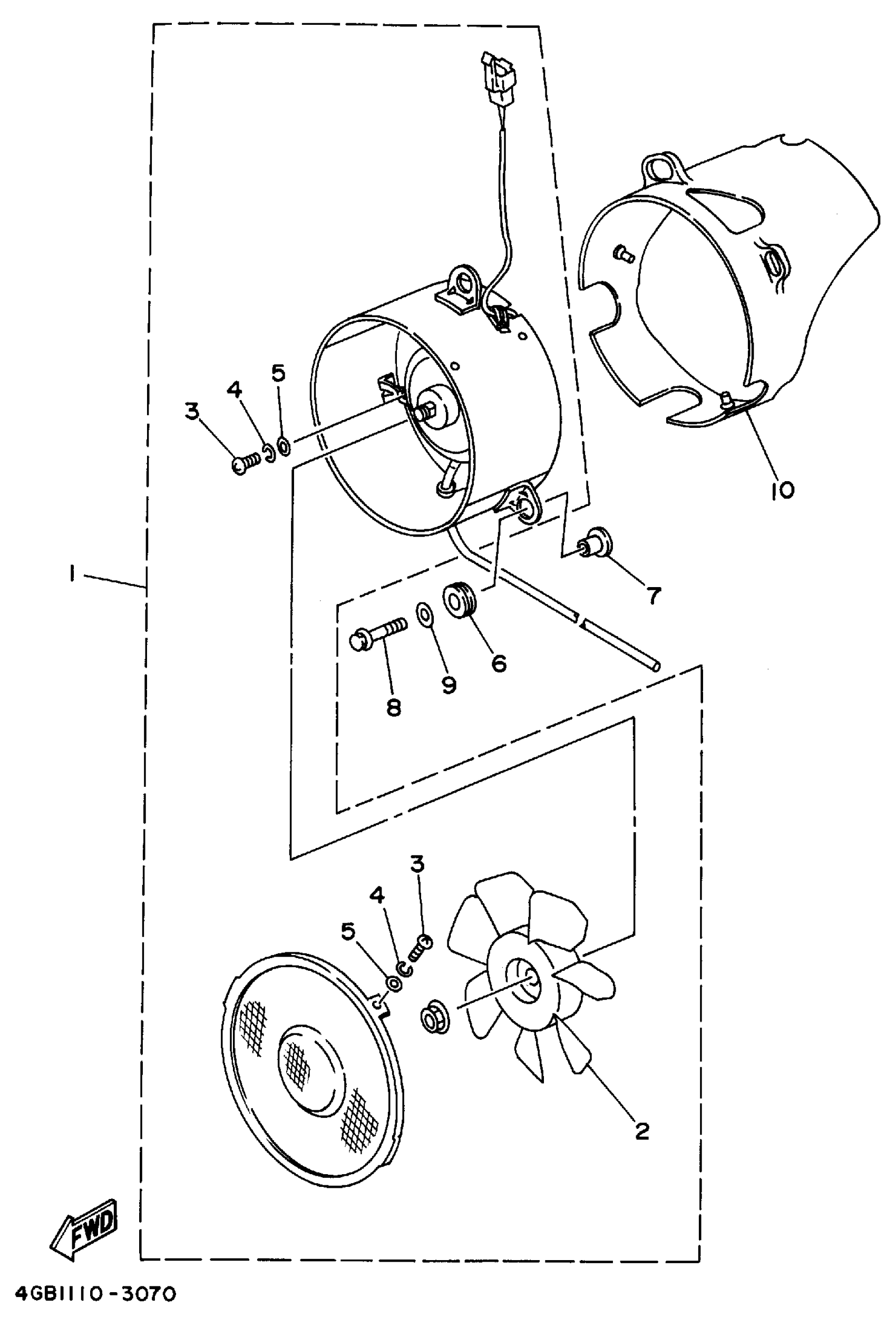

Yamaha YFM400FWF (KODIAK 4WD) 4GB5 1994 BLOWER Diagram

#

Description
Price

1

BLOWER ASSEMBLY

4GB-12405-00-00

Unavailable

2

. FAN

4GB-12611-00-00

Unavailable

3

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.29

4

WASHER(3SX)

92907-05100-00

$5.76

5

WASHER(1RW)

92907-05600-00

$0.77

6

GROMET (3X3)

90480-14229-00

$5.75

7

COLLAR 437216330000

90387-07391-00

Unavailable

8

BOLT, FLANGE

95817-06025-00

Unavailable

9

WASHER, PLATE

90201-06380-00

$0.54

10

COVER 1

4GB-1246A-01-00

Unavailable
