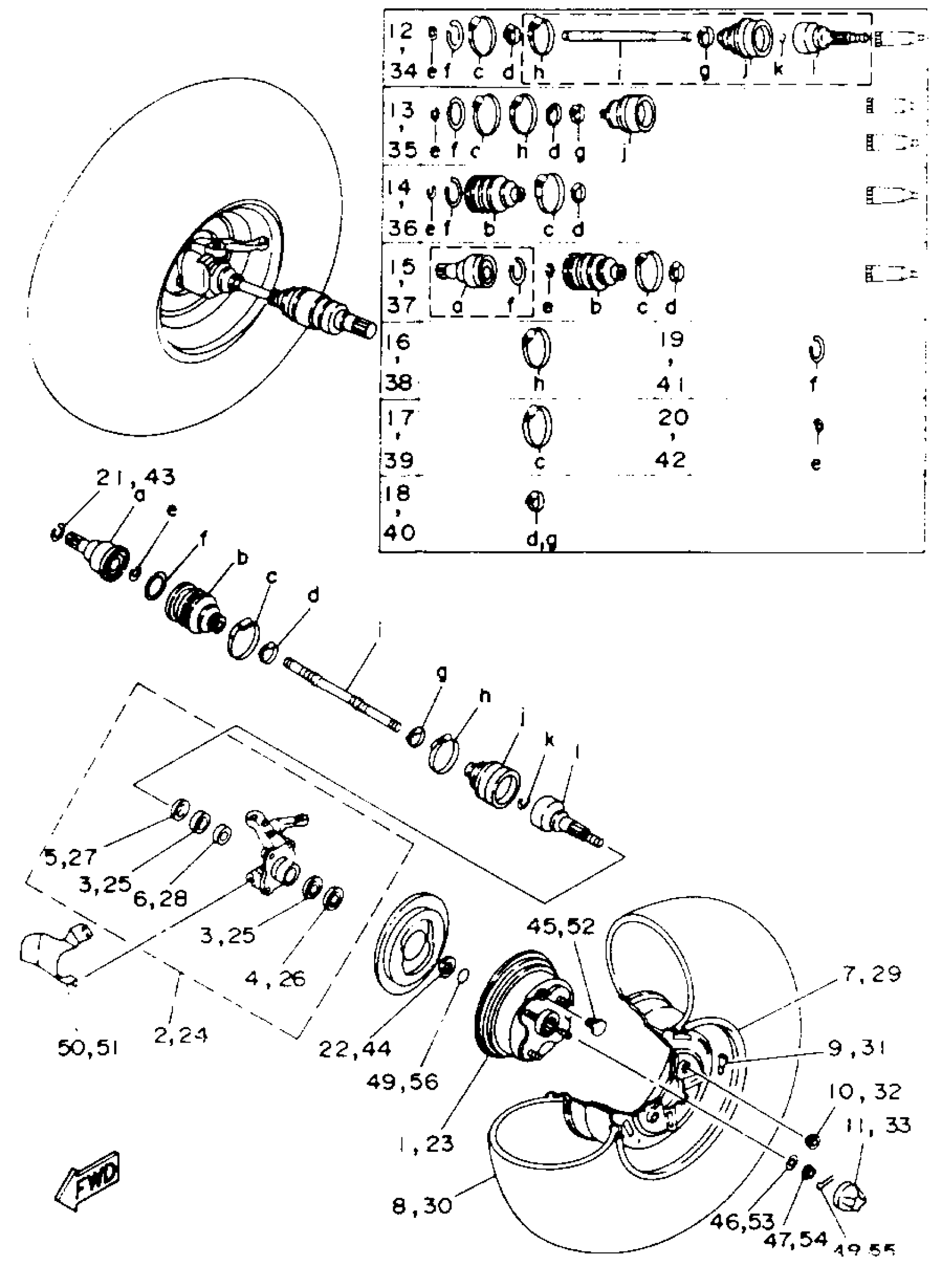

Yamaha YFM400FWE_MNH (KODIAK 4WD) 4GB1 1993 FRONT WHEEL Diagram
#
2
STEERING,KNUCKLE (L)
3HN-23501-02-00
Unavailable
7
FRONT WHEEL COMP.
3HN-25180-00-3H
Unavailable
8
TIRE (AT25X8-12 KT402)
94108-126Y6-00
Unavailable
15
DOUBLE 0FF SET JOINT
3HN-2510J-00-00
Unavailable
16
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
Unavailable
17
. BOOT BAND(DOUBLE OFFSETJOINT)
3HN-2511H-00-00
Unavailable
18
BOOT BAND (SMALL)
3HN-2512G-01-00
Unavailable
19
CIRCLIP
2HR-2512H-00-00
Unavailable
20
SNAP RING
2HR-2512J-00-00
Unavailable
21
CIRCLIP(2HR)
93450-22119-00
Unavailable
22
COLLAR(3HN)
90387-281V8-00
Unavailable
24
STEERING, KNUCKLE ASSY (RIGHT)
3HN-23502-02-00
Unavailable
29
FRONT WHEEL COMP.
3HN-25180-00-3H
Unavailable
30
TIRE (AT25X8-12 KT402)
94108-126Y6-00
Unavailable
37
DOUBLE 0FF SET JOINT
3HN-2510J-00-00
Unavailable
38
BOOT BAND (BALL JOINT)
3HN-2511G-01-00
Unavailable
39
. BOOT BAND(DOUBLE OFFSETJOINT)
3HN-2511H-00-00
Unavailable
40
BOOT BAND (SMALL)
3HN-2512G-01-00
Unavailable
41
CIRCLIP
2HR-2512H-00-00
Unavailable
42
SNAP RING
2HR-2512J-00-00
Unavailable
43
CIRCLIP(2HR)
93450-22119-00
Unavailable
44
COLLAR(3HN)
90387-281V8-00
Unavailable
45
CAP
2NL-25335-01-00
Unavailable
46
WASHER, PLATE(3HN)
90201-163M0-00
Unavailable
47
NUT, CASTLE
90171-16001-00
Unavailable
48
PIN, COTTER
91490-30030-00
Unavailable
49
O-RING(22F)
93210-26662-00
Unavailable
50
COVER, RING
4GB-2331M-00-00
Unavailable
51
COVER, RING
4GB-2331N-00-00
Unavailable
52
CAP
2NL-25335-01-00
Unavailable
53
WASHER, PLATE(3HN)
90201-163M0-00
Unavailable
54
NUT, CASTLE
90171-16001-00
Unavailable
55
PIN, COTTER
91490-30030-00
Unavailable
56
O-RING(22F)
93210-26662-00
Unavailable
