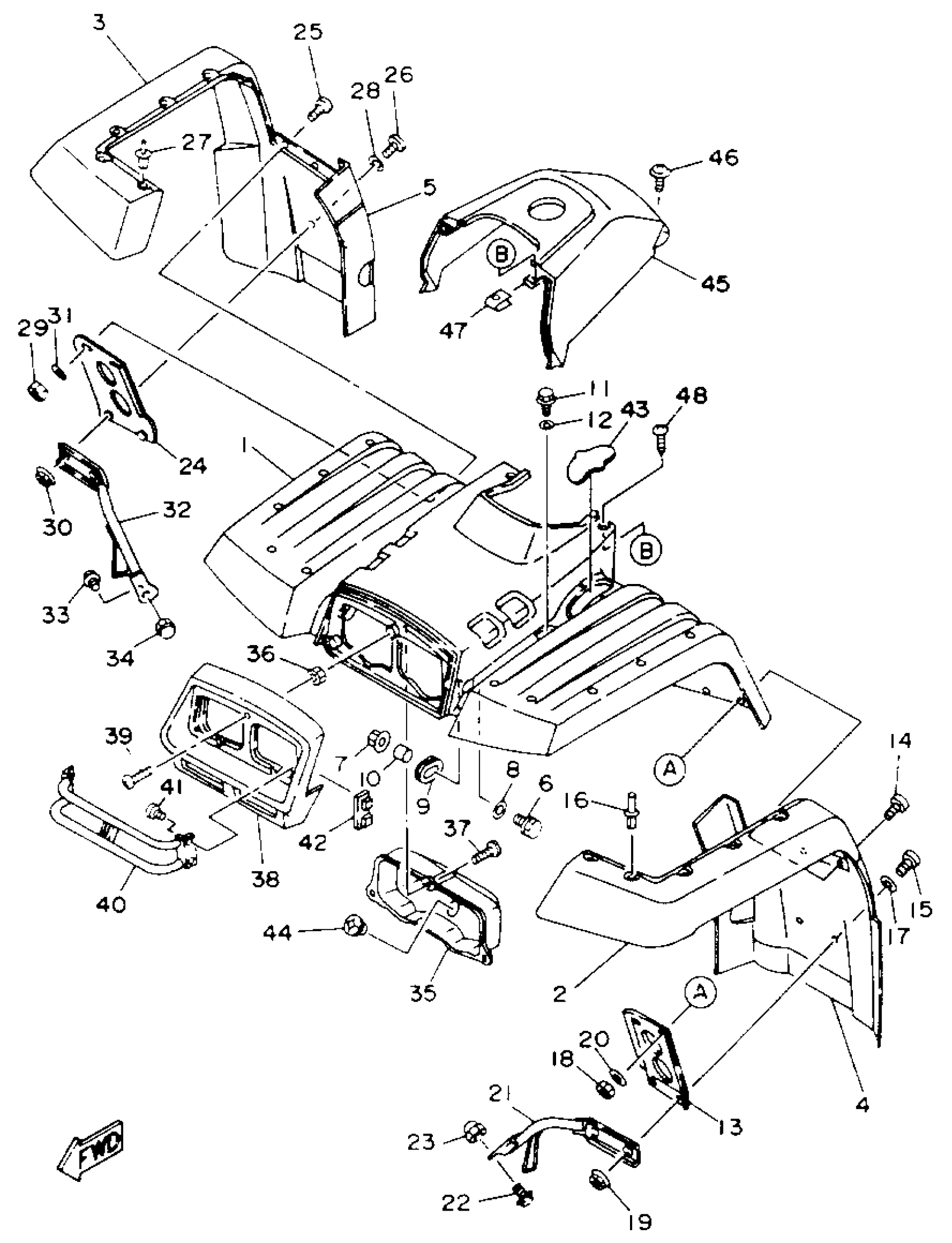

Yamaha YFM400FWE_MNH (KODIAK 4WD) 4GB1 1993 FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3HN-21511-71-00

Unavailable

2

OVER, FENDER

4GB-21551-00-00

Unavailable

3

FENDER, OVER 2

4GB-21555-00-00

Unavailable

4

FENDER, OVER 3

4GB-21559-00-00

Unavailable

5

FENDER, OVER 4

4GB-21560-00-00

Unavailable

6

BOLT, FLANGE

95817-06030-00

$4.29

7

NUT, FLANGE(7NB)

95780-06500-00

$2.60

8

WASHER PLATE 248217570000

90201-06074-00

$9.49

9

GROMMET(38W)

90480-01400-00

$13.49

10

COLLAR (1M1)

90387-06553-00

$9.49

11

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

12

WASHER, PLATE (1A0)

90201-08612-00

$8.49

13

PLATE 1

2HR-21523-00-00

$39.99

14

SCREW, BINDING (8R1)

90154-05011-00

$4.29

15

SCREW, BINDING (8K8)

90154-05006-00

Unavailable

16

RIVET (739 BRAKE PEDAL)

90267-63047-00

Unavailable

17

WASHER, PLATE (J10)

90201-06697-00

Unavailable

18

NUT, NYLON

95707-05300-00

Unavailable

19

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

20

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

21

STAY, FENDER 1

4GB-21513-00-00

Unavailable

22

BOLT, BUTTON HEAD

92017-08012-00

Unavailable

23

NUT(6L2)

95333-08600-00

Unavailable

24

PLATE 2

2HR-21524-00-00

Unavailable

25

SCREW, BINDING (8R1)

90154-05011-00

$4.29

26

SCREW, BINDING (8K8)

90154-05006-00

Unavailable

27

RIVET (739 BRAKE PEDAL)

90267-63047-00

Unavailable

28

WASHER, PLATE (J10)

90201-06697-00

Unavailable

29

NUT, NYLON

95707-05300-00

Unavailable

30

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

31

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

32

STAY, FENDER 2

4GB-21514-00-00

Unavailable

33

BOLT, BUTTON HEAD

92017-08012-00

Unavailable

34

NUT(6L2)

95333-08600-00

Unavailable

35

BODY, HEADLIGHT

2HR-84111-00-00

Unavailable

36

NUT

90170-05362-00

Unavailable

37

SCREW, BINDING

98907-05014-00

Unavailable

38

PANEL, FRONT

2HR-23391-00-00

Unavailable

39

SCREW, BINDING (10V)

90154-05013-00

Unavailable

40

GUARD, HEADLIGHT

2HR-84169-00-00

Unavailable

41

SCREW, BINDING

98907-06012-00

Unavailable

42

PLATE, STAY FITTING 1

2HR-21526-00-00

Unavailable

43

DAMPER 1

4GB-21541-00-00

Unavailable

44

. GROMMET

90480-25461-00

Unavailable

45

COVER, TOP

3HN-2171A-20-00

Unavailable

46

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

47

NUT, SPRING

90183-051A0-00

Unavailable

48

SCREW, BINDING(1UY)

90154-05041-00

Unavailable
