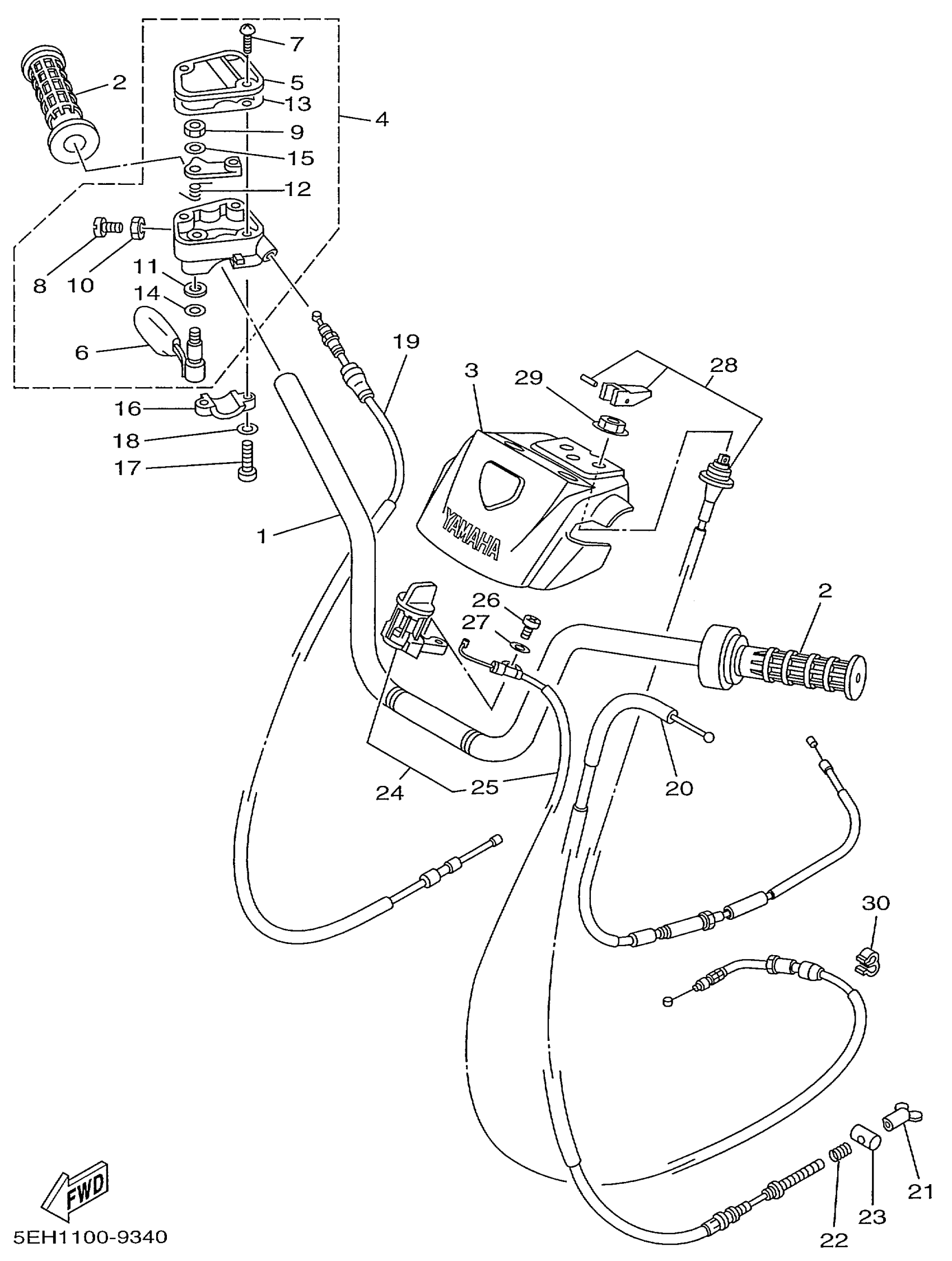

Yamaha YFM400FWBLC (KODIAK 4WD) 5EH2 1999 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

2HR-26111-00-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR, HANDLEBAR

5EH-26124-00-00

Unavailable

4

THROTTLE LEVER ASSY

4KB-26250-12-00

$122.99

5

. CAP, GEAR

4KB-2628F-00-00

Unavailable

6

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

7

SCREW(3HE)

90149-04278-00

$2.39

8

SCREW, PAN HEAD

98517-05020-00

$4.25

9

NUT, U

95617-05100-00

$9.49

10

NUT, HEXAGON SMALL

95317-05700-00

$8.49

11

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

12

SPRING

1NV-26304-00-00

$11.99

13

GASKET

4KB-2628G-00-00

$13.49

14

WASHER

1NV-26129-00-00

$6.99

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

17

SCREW, PAN HEAD

98517-05020-00

$4.25

18

WASHER(1RW)

92907-05600-00

Unavailable

19

CABLE, THROTTLE 1

4WU-26311-00-00

Unavailable

20

CABLE, BRAKE

4WU-26341-00-00

Unavailable

21

NUT, AJUSTING

20E-26343-00-00

Unavailable

22

SPRING, COMPRESSION (29U)

90501-10782-00

Unavailable

23

PIN 1562723700

90249-12008-00

Unavailable

24

REV. LEVER ASSY.

4KB-26150-10-00

Unavailable

25

CABLE, CONTROL 1

4KB-2637E-02-00

Unavailable

26

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

27

WASHER(1RW)

92907-05600-00

Unavailable

28

CABLE, STARTER 1

5EH-26331-00-00

Unavailable

29

Nut

8G8-26333-00-00

Unavailable

30

CLIP (867)

90468-15020-00

Unavailable
