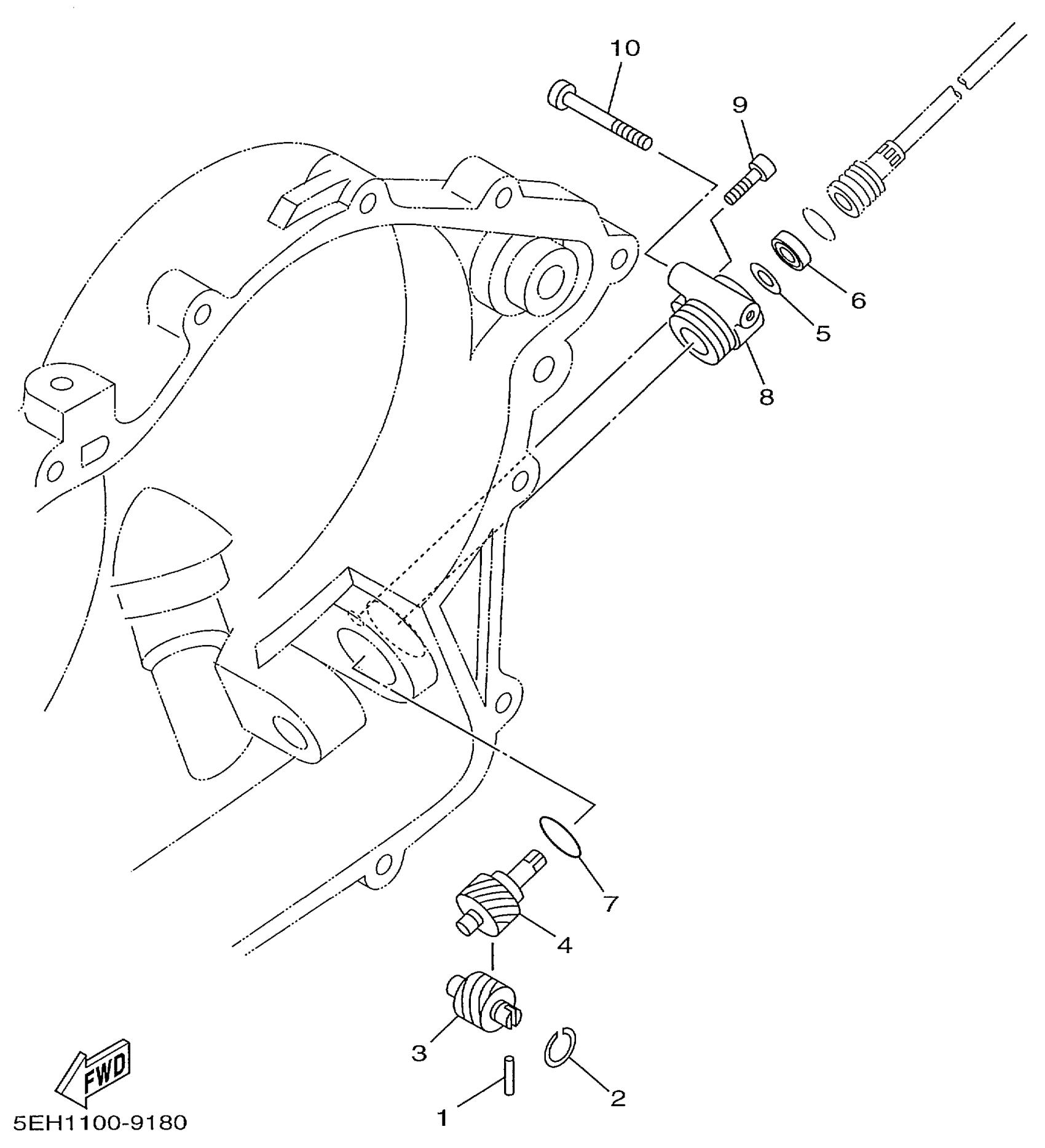

Yamaha YFM400FWBLC (KODIAK 4WD) 5EH2 1999 SPEEDOMETER GEAR UNIT Diagram

#

Description

Price

1

PIN, DOWEL(3HN)

93603-14240-00

$2.13

2

CIRCLIP(59V)

93440-14155-00

Unavailable

3

GEAR, DRIVE

59V-17831-00-00

Unavailable

4

GEAR, DRIVEN

59V-17841-00-00

Unavailable

5

WASHER (692)

90201-12M34-00

Unavailable

6

OIL SEAL (30X)

93102-08307-00

$7.49

7

O-RING(59V)

93210-24253-00

$7.49

8

HOUSING, TACHOMETER GEAR

4KB-17811-00-00

Unavailable

9

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

10

SCREW, PAN

98517-06030-00

Unavailable
