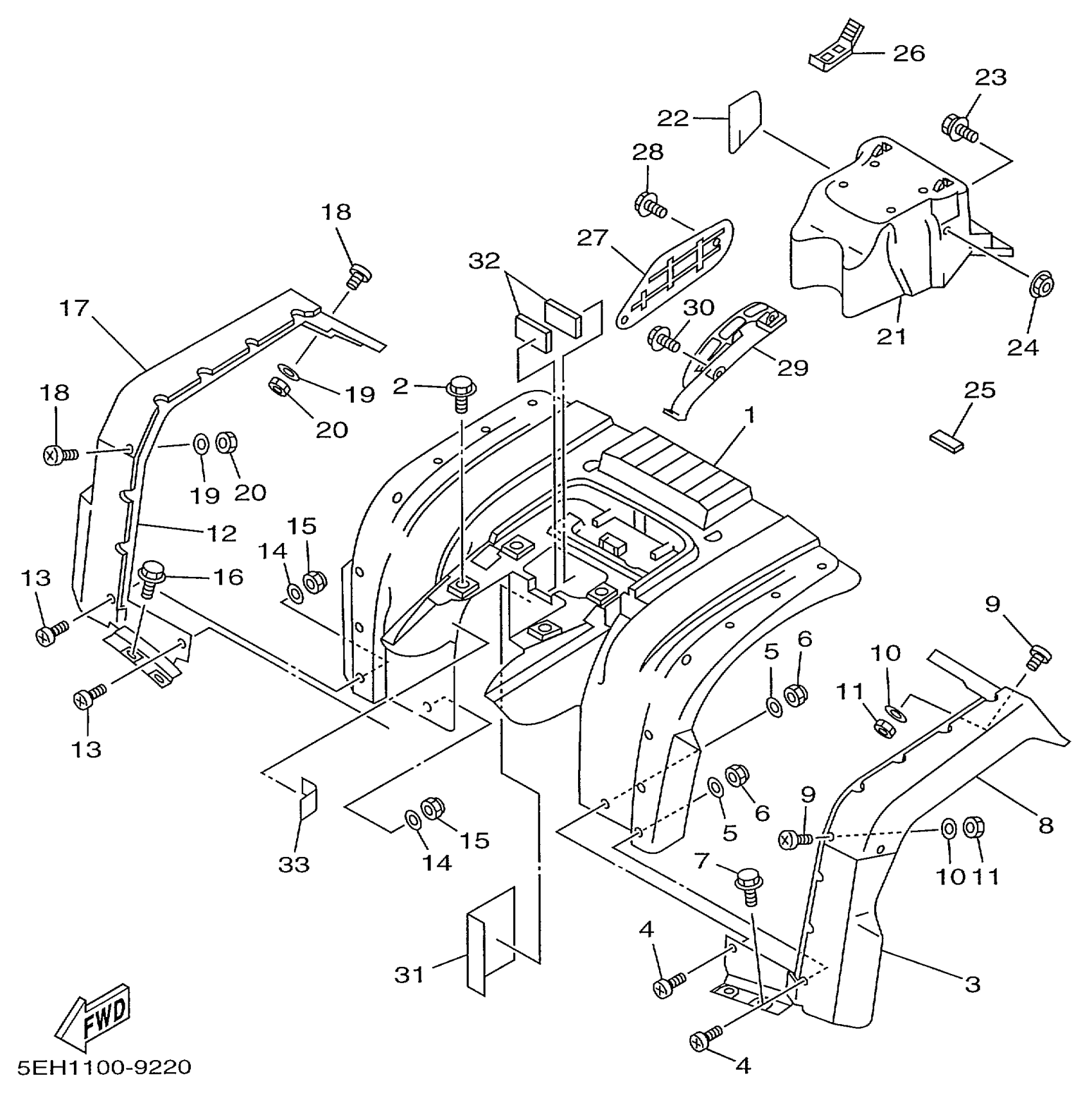

Yamaha YFM400FWBLC (KODIAK 4WD) 5EH2 1999 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER COMP.

4SH-W216E-02-00

Unavailable

1

REAR FENDER COMP.

4SH-W2161-41-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

FLAP

4GB-21621-01-00

Unavailable

4

SCREW, BINDING (8R1)

90154-05011-00

$4.29

5

WASHER, PLATE 8067717800

90201-05029-00

$8.49

6

NUT, NYLON

95707-05300-00

$4.24

7

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

8

FLAP 3

4GB-2162H-10-00

Unavailable

9

SCREW, BINDING (8R1)

90154-05011-00

$4.29

10

WASHER, PLATE 8067717800

90201-05029-00

$8.49

11

NUT, NYLON

95707-05300-00

$4.24

12

FLAP

4GB-21691-01-00

Unavailable

13

SCREW, BINDING (8R1)

90154-05011-00

$4.29

14

WASHER, PLATE 8067717800

90201-05029-00

$8.49

15

NUT, NYLON

95707-05300-00

$4.24

16

BOLT, WITH WASHER(8V7)

90119-06108-00

$8.49

17

FLAP 4

4GB-2162J-10-00

Unavailable

18

SCREW, BINDING (8R1)

90154-05011-00

$4.29

19

WASHER, PLATE 8067717800

90201-05029-00

$8.49

20

NUT, NYLON

95707-05300-00

$4.24

21

BOX COMP.

1YW-2160A-20-00

Unavailable

22

PROTECTOR

4GB-21652-00-00

Unavailable

23

BOLT, WITH WASHER

90119-06226-00

Unavailable

24

NUT,SELF-LOCKING

95607-06200-00

Unavailable

25

DAMPER

1YW-21638-00-00

Unavailable

26

BAND

59V-21646-00-00

Unavailable

27

COVER, REAR FENDER 2

2HR-2163E-00-00

Unavailable

28

BOLT, FLANGE

95817-06010-00

Unavailable

29

COVER, REAR FENDER 3

2HR-2163F-01-00

Unavailable

30

BOLT, FLANGE

95817-06010-00

Unavailable

31

PROTECTOR

4SH-21652-00-00

Unavailable

32

DAMPER

1YW-21638-00-00

Unavailable

33

INSULATOR,SIDE COVER

1YW-2174A-10-00

Unavailable
