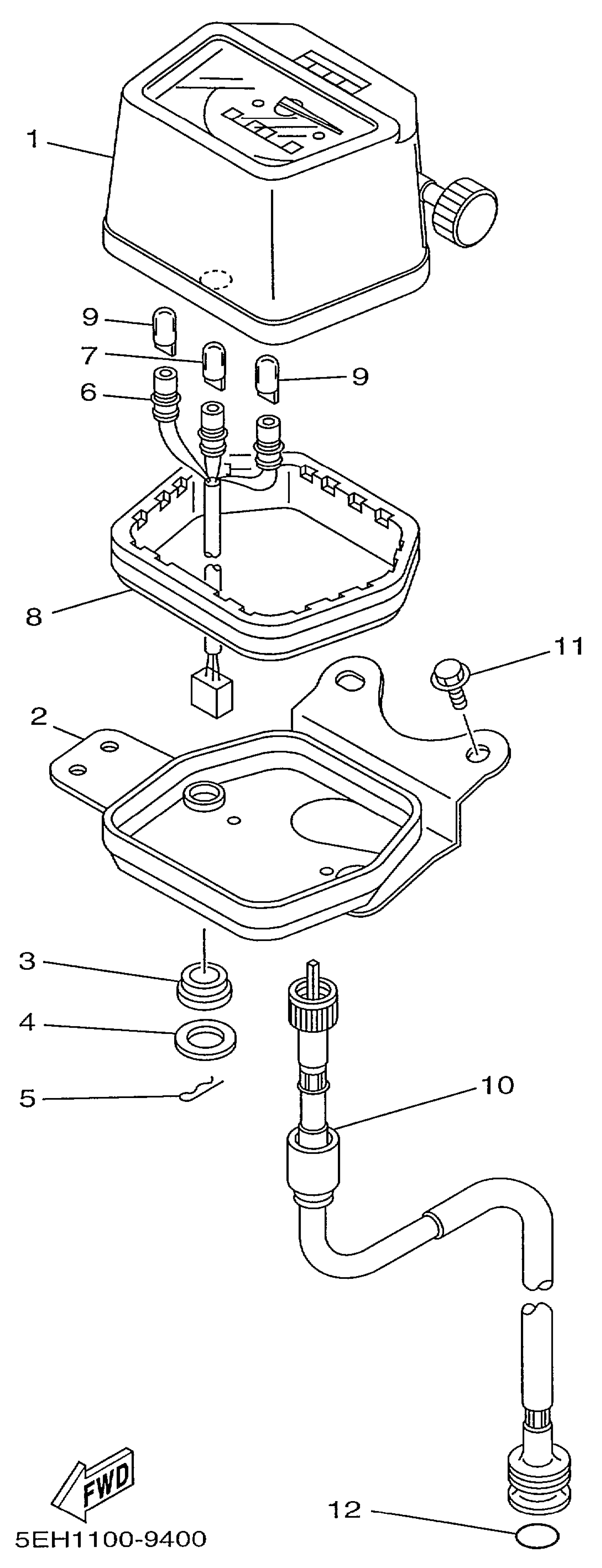

Yamaha YFM400FWBLC (KODIAK 4WD) 5EH2 1999 METER Diagram

SPEEDOMETER ASSY

4SH-83570-01-00

Unavailable

BRACKET, METER

5EH-83519-00-00

Unavailable

DAMPER 2

1M1-83526-01-00

$4.47

WASHER PLATE 829771780000

90201-05033-00

$10.49

CLIP (156-83525-00)

90468-10050-00

$3.05

SOCKET, METER

4SH-83536-00-00

Unavailable

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

DAMPER

5Y0-83513-00-00

Unavailable

BULB (12V-1.7W)

3GM-83517-00-00

$7.99

SPEEDOMETER CABLE ASSEMBLY

5EH-83550-00-00

Unavailable

BOLT, FLANGE

95817-06010-00

$4.73

O-RING (26H)

93210-14579-00

$7.49
