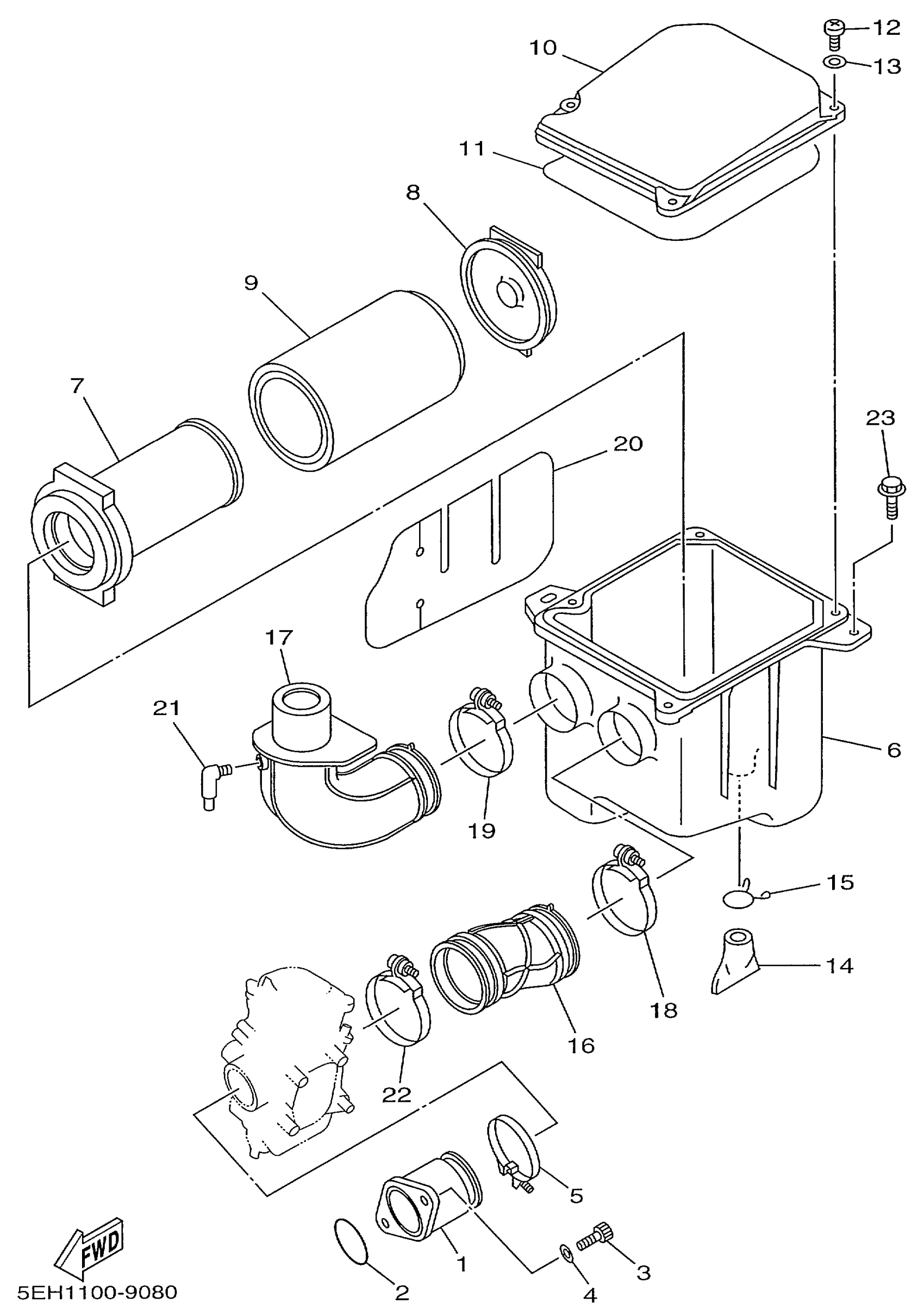

Yamaha YFM400FWBLC (KODIAK 4WD) 5EH2 1999 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5EH-13586-00-00

Unavailable

2

O-RING (10L)

93210-44545-00

$13.49

3

BOLT, SOCKET

91317-08025-00

$8.49

4

WASHER PLATE 141181390000

90201-08085-00

$9.49

5

HOSE CLAMP ASSY

90450-49001-00

$16.99

6

CASE, AIR CLEANER 1

4SH-14411-01-00

Unavailable

7

GUIDE

1YW-14458-01-00

$79.99

8

PLATE, ELEMENT FITTING

1UY-14468-00-00

$20.99

9

ELEMENT,AIR CLNR

1YW-14451-01-00

$18.49

10

CAP, CLEANER CASE 1

21V-14412-01-00

$18.49

11

SEAL

1VJ-14462-00-00

$18.49

12

SCREW, PAN HEAD

90157-05M19-00

Unavailable

13

WASHER(1RW)

92907-05600-00

$3.78

14

SEAL

59V-14457-00-00

$6.99

15

CLIP (21V)

90467-22080-00

$8.49

16

JOINT, AIR CLEANER 1

5EH-14453-00-00

Unavailable

17

DUCT

5EH-14437-00-00

Unavailable

18

HOSE CLAMP ASSY

90450-56001-00

Unavailable

19

HOSE CLAMP ASSY

90450-58002-00

Unavailable

20

PROTECTOR

4BD-1442F-00-00

Unavailable

21

PIPE

31A-14419-00-00

Unavailable

22

HOSE CLAMP ASSY

90450-56001-00

Unavailable

23

BOLT, WITH WASHER (30X)

90119-06096-00

Unavailable
