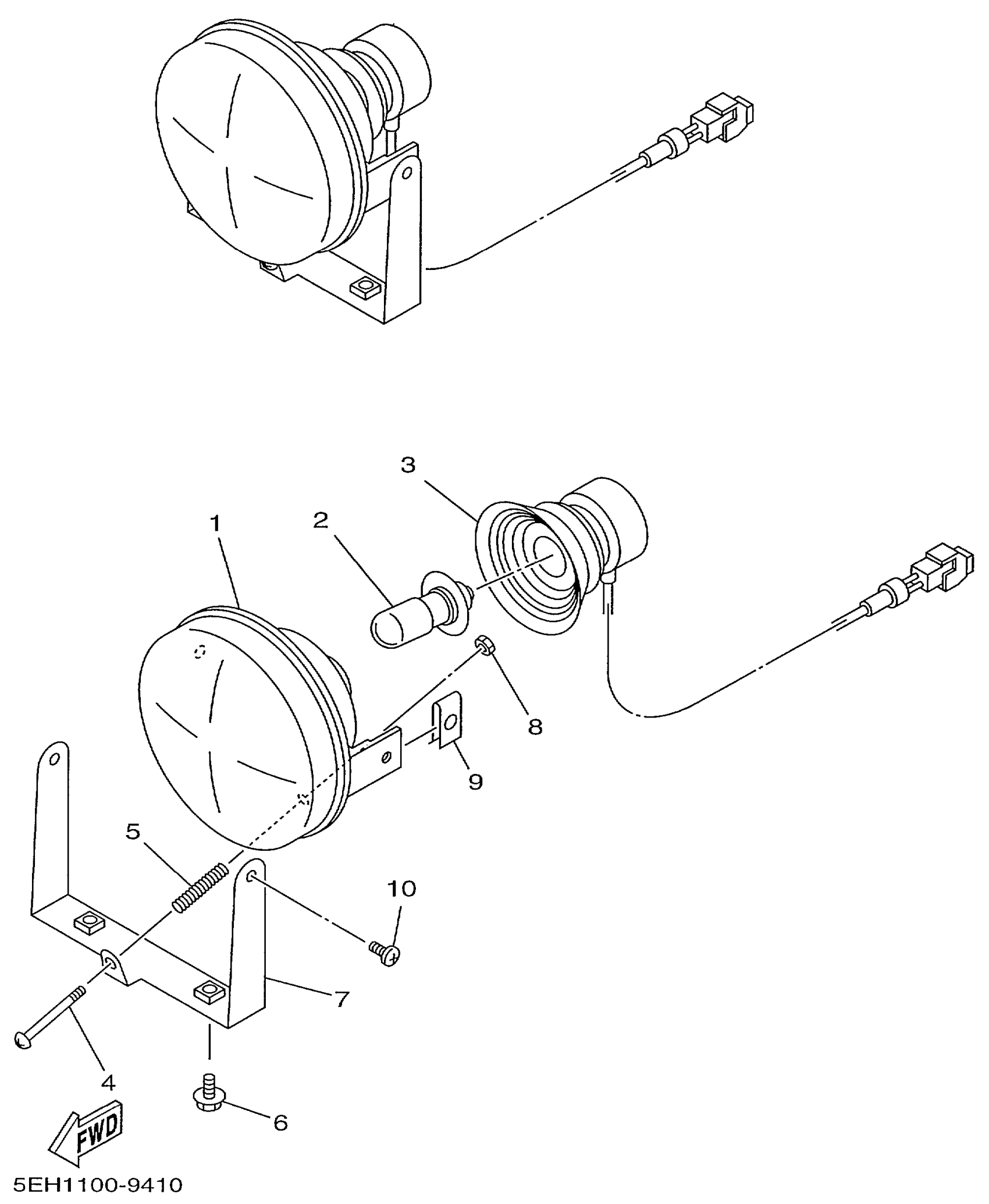

Yamaha YFM400FWBLC (KODIAK 4WD) 5EH2 1999 HEADLIGHT Diagram

#

Description
Price

1

LENS ASSY

4WV-84320-00-00

$88.61

2

BULB, HEADLIGHT

4KB-84314-01-00

$34.68

3

SOCKET CORD ASSY 1

5EH-84340-00-00

$46.67

4

SCREW, PAN HEAD

98507-03540-00

$1.13

5

SPRING, SCREW

2GU-84332-00-00

$6.29

6

BOLT, FLANGE

95817-06012-00

$1.40

7

STAY, LAMP SET

4SH-84361-00-00

Unavailable

8

NUT, ADJUSTING

2GU-84334-00-00

$5.05

9

NUT, SPRING (2E9)

90183-05013-00

$7.12

10

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.29
