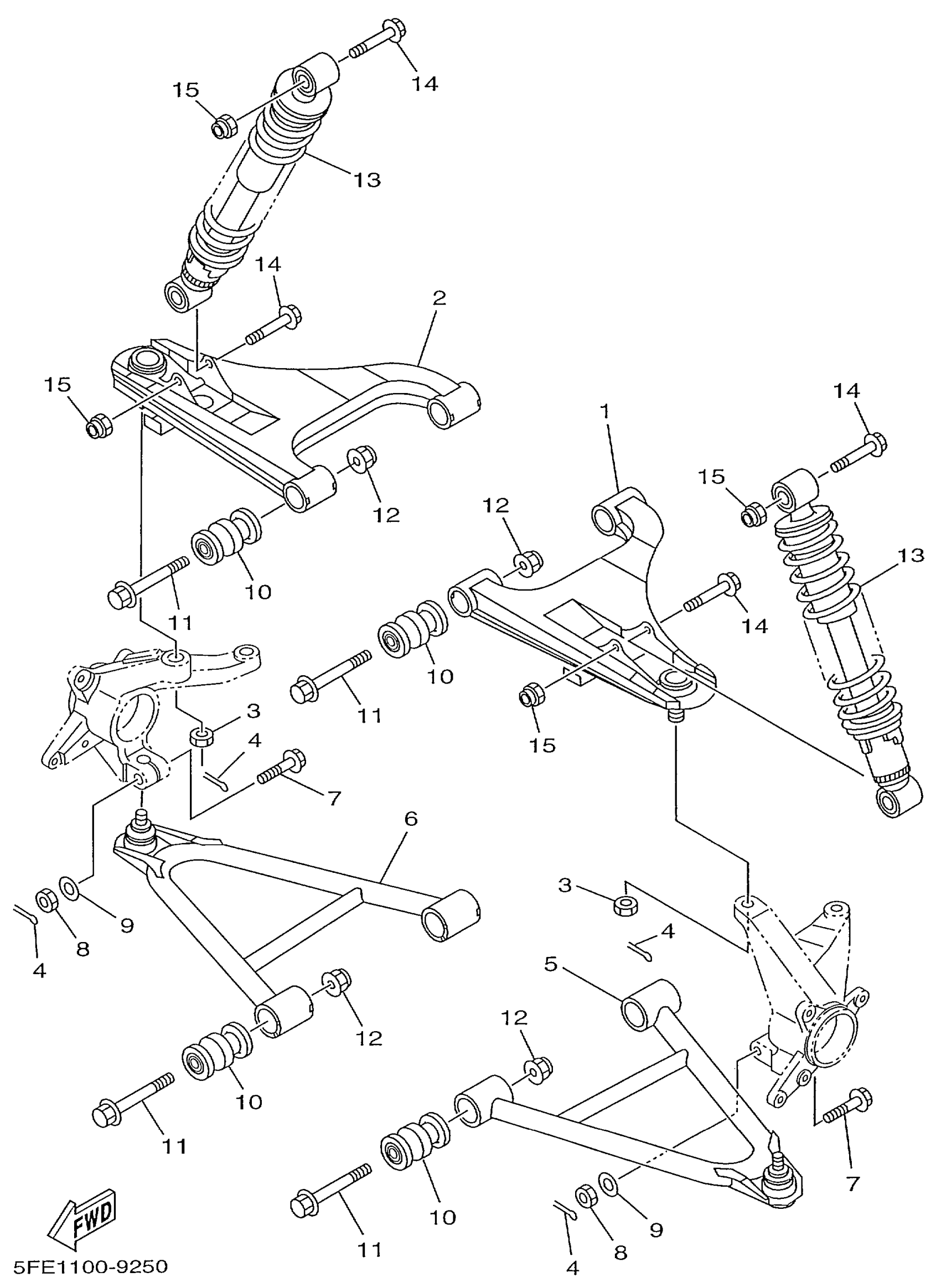

Yamaha YFM400FWBLC (KODIAK 4WD) 5EH2 1999 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM COMP. (LEFT)

4WU-23540-00-00

Unavailable

2

FRONT UPPER ARM COMP. (RIGHT)

4WU-23550-00-00

$193.99

3

NUT, CASTLE

90171-10001-00

$7.49

4

PIN, COTTER

91490-20025-00

$1.99

5

FRONT LOWER ARM (LEFT)

5FE-23570-01-00

Unavailable

6

FRONT LOWER ARM (RIGHT)

5FE-23580-01-00

Unavailable

7

BOLT, FLANGE (2XJ)

90105-10549-00

$7.49

8

NUT(6TD)

95337-10600-00

$9.49

9

WASHER (7A9)

90201-100F7-00

$9.49

10

BUSH

2HR-23526-00-00

$20.99

11

BOLT, WASHER BASED(4EB)

90105-10788-00

$28.99

12

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

13

SHOCK ABSORBER ASSEMBLY

5FE-23350-00-33

Unavailable

14

BOLT, WASHER BASED(59V)

90105-10388-00

$10.49

15

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49
