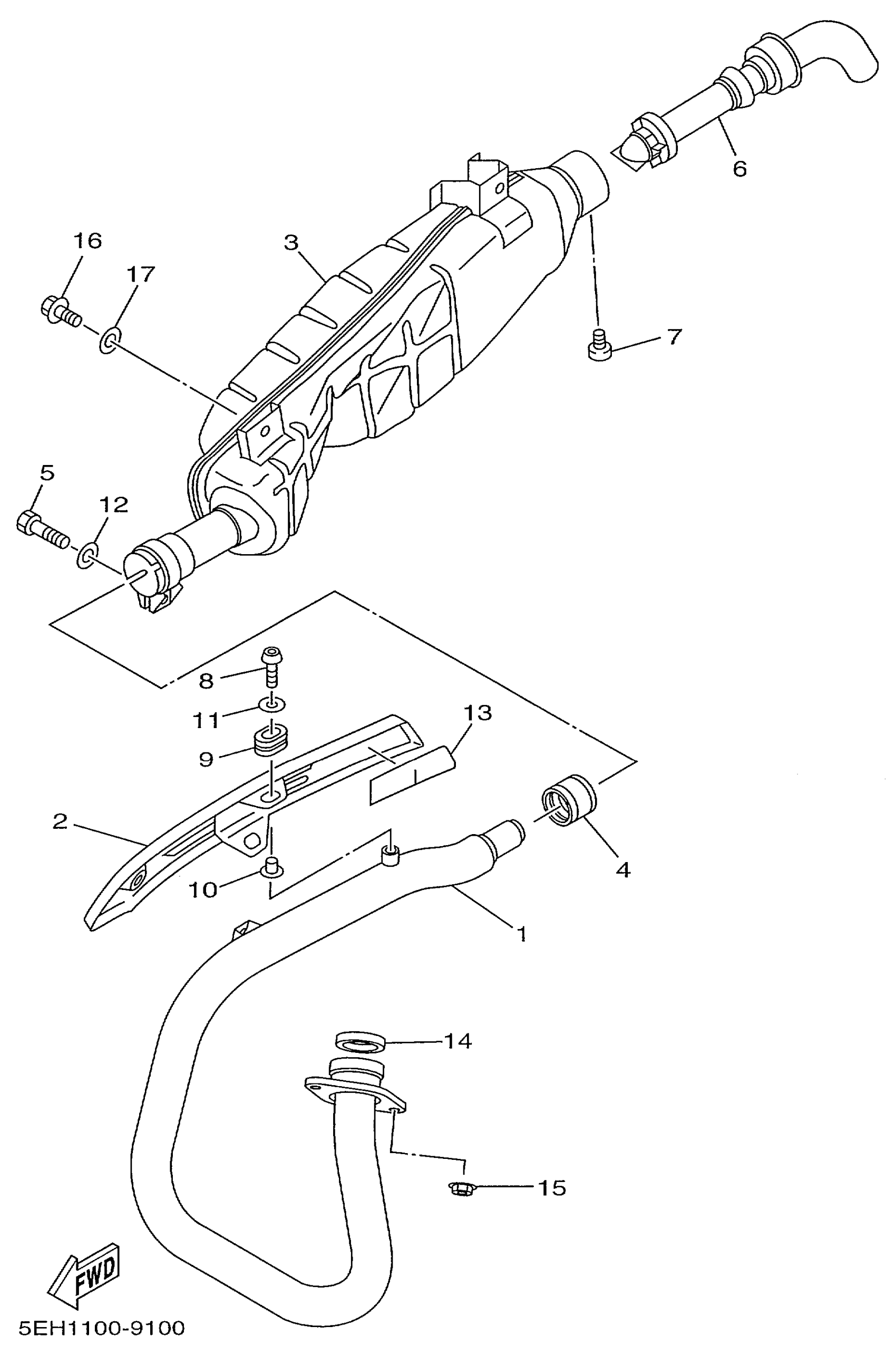

Yamaha YFM400FWBLC (KODIAK 4WD) 5EH2 1999 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5EH-14611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

5EH-14628-00-00

Unavailable

3

MUFFLER 1

5EH-14711-01-00

Unavailable

4

GASKET, MUFFLER

3YF-14714-00-00

$27.78

5

BOLT, HEXAGON

97017-08025-00

$6.95

6

PIPE, OUTLET

5EH-14752-00-00

Unavailable

7

BOLT,HEXAGON

97017-06008-00

$2.52

8

BOLT, BUTTON HEAD

92017-06014-00

$2.60

9

GROMMET(4KB)

90480-01590-00

$8.27

10

COLLAR(42G)

90387-062L2-00

$5.30

11

WASHER, PLATE

90201-06557-00

$2.57

12

WASHER, PLATE(47X)

90201-086J0-00

$6.15

13

PLATE, PROTECTOR

4WU-1465R-00-00

Unavailable

14

GASKET, EXHAUST PIPE

3GD-14613-00-00

$11.56

15

NUT(2UJ)

90179-06668-00

$5.75

16

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

17

WASHER (853)

90201-08326-00

Unavailable
