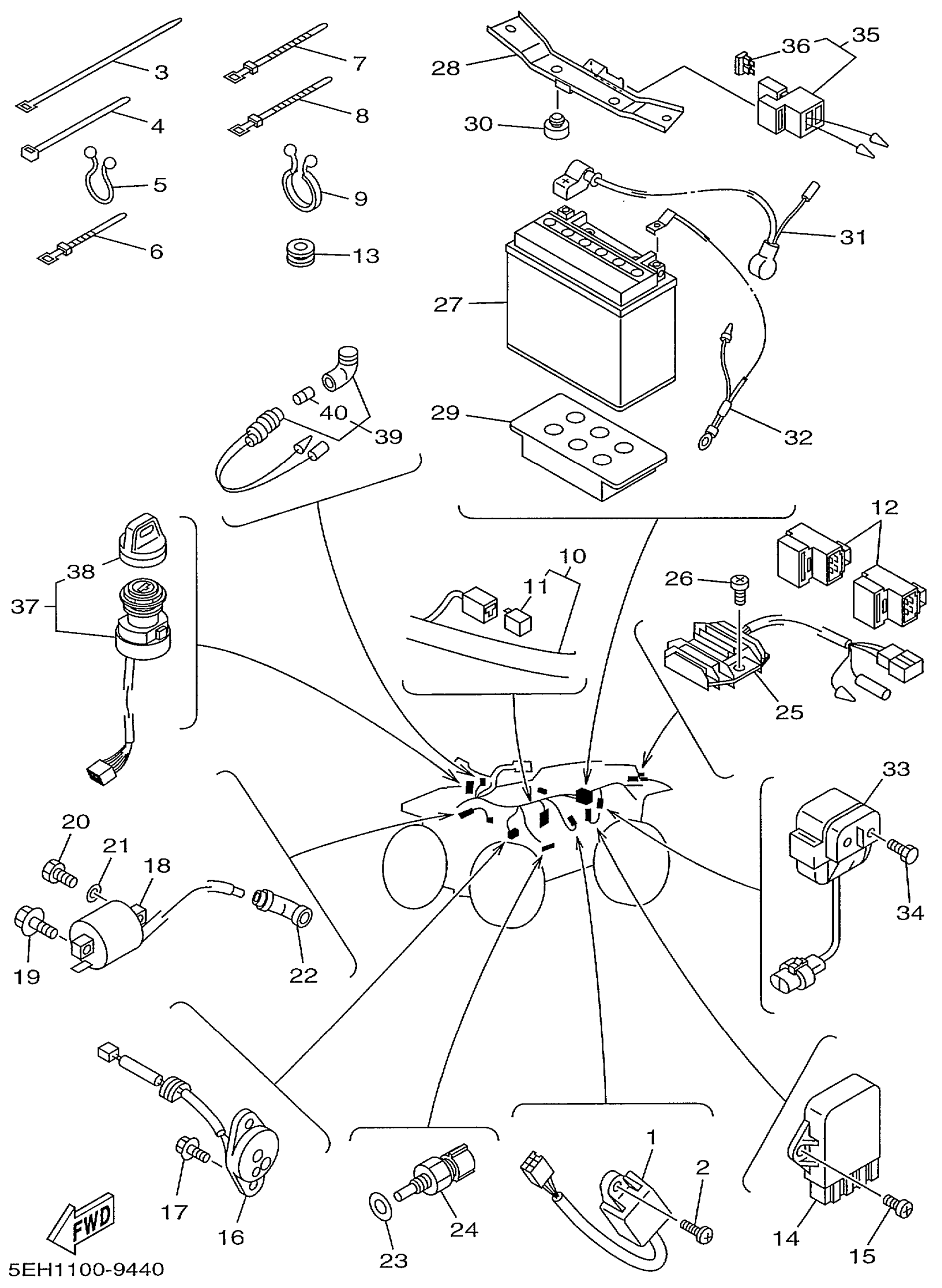

Yamaha YFM400FWBLC (KODIAK 4WD) 5EH2 1999 ELECTRICAL 1 Diagram
#
1
MOTOR CONTROL UNIT ASSY
4SH-86510-00-00
Unavailable
3
BAND
341-26397-01-00
Unavailable
4
CLAMP
90465-10098-00
Unavailable
5
CLAMP
90464-18116-00
Unavailable
10
WIRE HARNESS ASSY
5EH-82590-01-00
Unavailable
16
NEUTRAL SWITCH ASSY
4KB-82540-01-00
Unavailable
17
BOLT, WITH WASHER
90119-06242-00
Unavailable
18
IGNITION COIL ASSY
3KJ-82310-13-00
Unavailable
19
BOLT (21V)
90109-06723-00
Unavailable
20
BOLT, HEXAGON
97017-06020-00
Unavailable
21
WASHER(6TA)
92907-06600-00
Unavailable
22
PLUG CAP ASSY
4VW-82370-00-00
Unavailable
23
WASHER, PLATE 3412175700
90201-12172-00
Unavailable
24
THERMO UNIT
4GB-83591-10-00
Unavailable
25
RECTIFIER & REGULATOR ASSY
4KB-81960-02-00
Unavailable
26
BOLT, FLANGE
95817-06020-00
Unavailable
27
BATTERY ASSY (YUASA YTX20L-BS)
YTX-20LBS-00-00
Unavailable
28
BRACKET, BATTERY
5EH-82128-00-00
Unavailable
29
DAMPER 2
4SH-21639-00-00
Unavailable
30
DAMPER, SEAT
4G0-24723-00-00
Unavailable
31
WIRE, PLUS LEAD
5EH-82115-00-00
Unavailable
32
WIRE, MINUS LEAD
5EH-82116-00-00
Unavailable
33
STARTER RELAY ASSY (MS5E-671)
5EH-81940-01-00
Unavailable
34
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
35
FUSE HOLDER ASSY
5EH-82150-00-00
Unavailable
36
FUSE (12V 30A)
1AE-82151-00-00
Unavailable
37
MAIN SWITCH ASSY
4GB-82510-12-00
Unavailable
38
CAP, KEY
3HN-82579-00-00
Unavailable
39
PILOT LIGHT ASSY
2HR-83530-01-00
Unavailable
40
BULB (12V-3.4W)
123-83516-21-00
Unavailable
41
KEY, BLANK (A-TYPE)
90890-56001-00
Unavailable
42
KEY, BLANK (B-TYPE)
90890-56002-00
Unavailable
