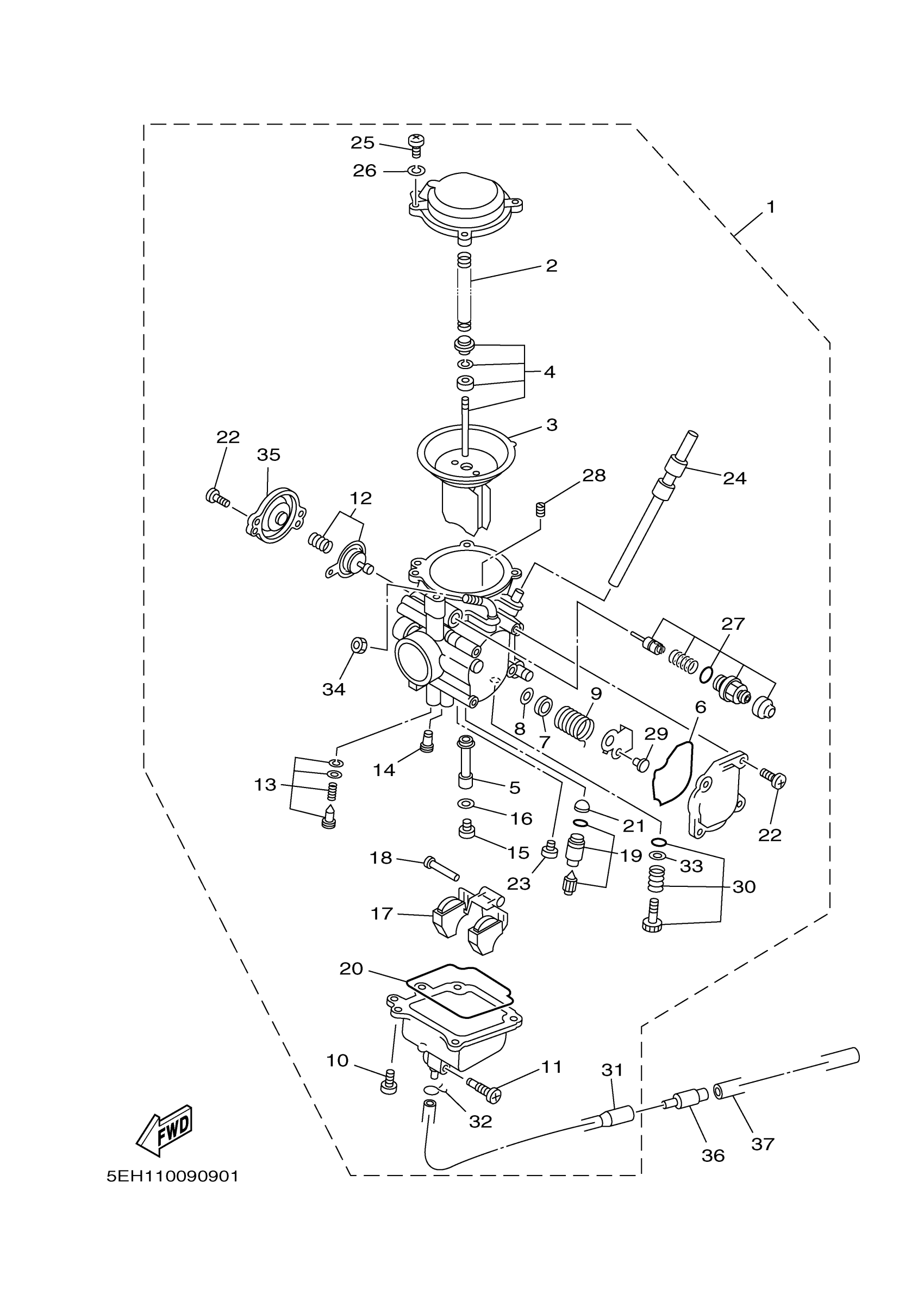

Yamaha YFM400FWBLC (KODIAK 4WD) 5EH2 1999 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

5EH-14101-00-00

Unavailable

2

SPRING, DIAPHRAGM

2LN-14933-00-00

$15.49

3

. DIAPHRAGM ASSY

5EH-14940-00-00

Unavailable

4

. NEEDLE SET

5EH-1490J-00-00

Unavailable

5

. NOZZLE, MAIN

4WU-14141-40-00

Unavailable

6

O-RING

4KB-14147-00-00

$25.99

7

. COLLAR

4KB-14264-00-00

Unavailable

8

SEAL

2A2-14997-00-00

Unavailable

9

SPRING

4KB-14275-00-00

Unavailable

10

SCREW, PAN HEAD

98517-04012-00

$3.88

11

PLUG, DRAIN

12R-14191-00-00

$16.49

12

DIAPHRAGM SET, 5

26H-1490H-00-00

$81.99

13

PILOT SCREW SET

12R-14105-00-00

$17.49

14

JET, PILOT (# 42.5)

4G0-14142-42-A0

$14.49

15

JET,MAIN #112.5

620-1423A-73-00

Unavailable

16

WASHER,MAIN JET

137-14153-00-00

Unavailable

17

FLOAT

2VA-14185-00-00

Unavailable

18

PIN, FLOAT

537-14186-00-00

Unavailable

19

NEEDLE VALVE SET

1UY-14107-20-00

Unavailable

20

O-RING

2LN-14147-00-00

Unavailable

21

NET, FILTER

1J7-14994-00-00

Unavailable

22

SCREW, PAN HEAD

98517-04012-00

$3.88

23

SCREW

2LN-14565-00-00

Unavailable

24

PIPE

90445-08686-00

Unavailable

25

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

26

WASHER(6TA)

92907-04100-00

Unavailable

27

. STARTER SET

5EH-1410A-00-00

Unavailable

28

PILOT JET, AIR (1.6)

2A2-14172-16-00

Unavailable

29

GUIDE, CABLE

1UY-14155-00-00

Unavailable

30

THROTTLE SCREW SET

2VA-14103-00-00

Unavailable

31

PIPE

4KB-14193-20-00

Unavailable

32

CLIP

14X-14937-00-00

Unavailable

33

WASHER

22U-14952-00-00

Unavailable

34

NUT, CABLE ADJUSTING

522-14161-00-00

Unavailable

35

COVER, DIAPHRAGM

3LD-14958-00-00

Unavailable

36

PIPE 2,OVERFLOW

24W-14193-00-00

Unavailable

37

TUBE, FLEXIBLE(3NV)

91A21-07020-00

Unavailable
