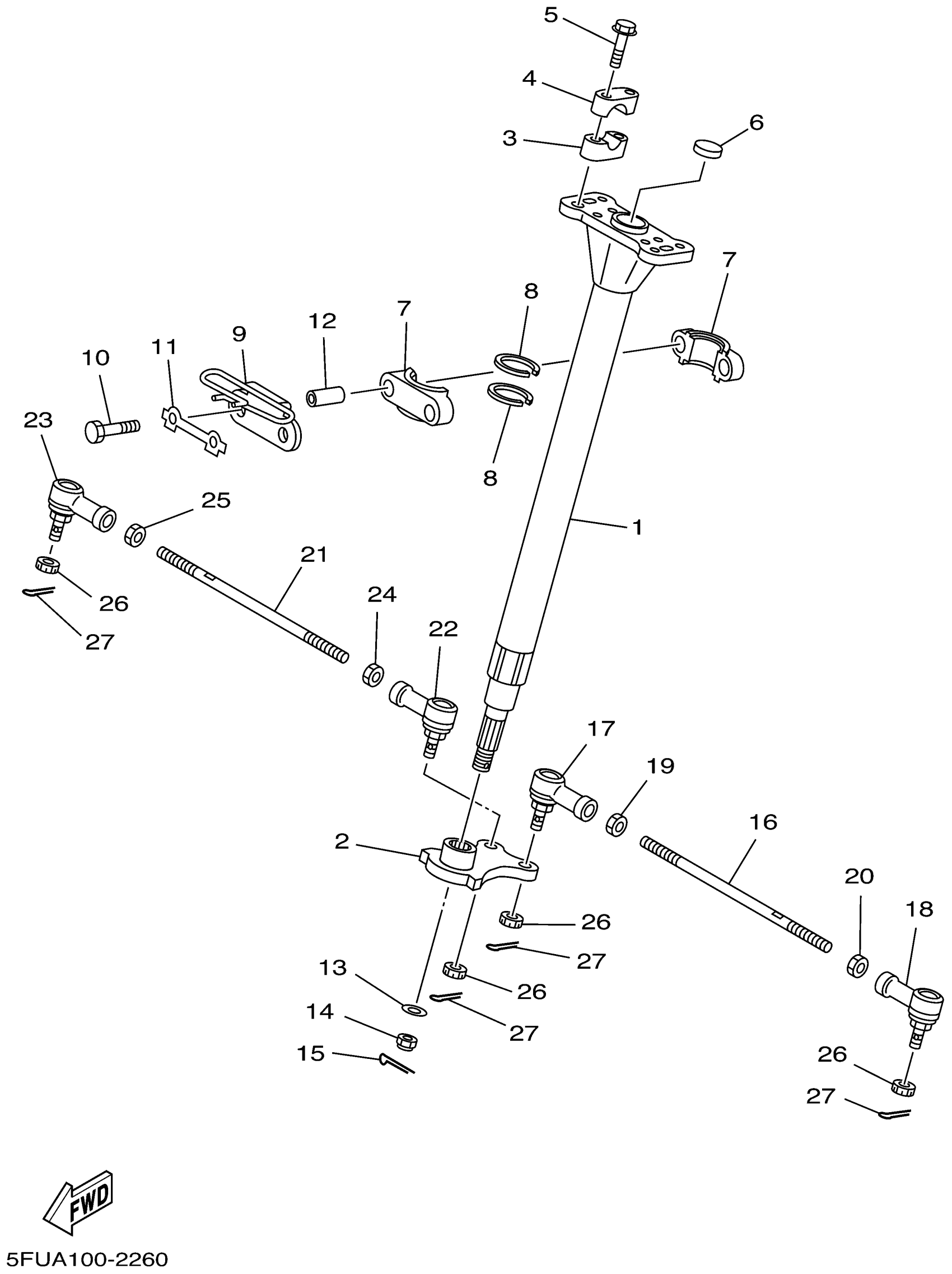

Yamaha YFM400FP (BIG BEAR 400 4WD_REAL TREE XTRA) 5FUA 2002 STEERING Diagram

#

Description
Price

1

COLUMN,STEERING 2

5FU-F3813-00-KT

Unavailable

2

ARM,PITMAN

5FU-F3816-10-00

Unavailable

3

HOLDER, HANDLE LOWER

2HR-23442-00-98

Unavailable

4

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

5

BOLT, FLANGE

9502P-08050-00

Unavailable

6

PLUG, TAPER(2HR)

90336-28053-00

$10.49

7

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

8

OIL SEAL(1UY)

93112-31011-00

$9.49

9

BRACKET, STEERING

4XE-F3868-10-00

Unavailable

10

BOLT, HEXAGON

97017-08060-00

Unavailable

11

WASHER, LOCK 1

1UY-23894-01-00

$7.99

12

COLLAR(85G)

90387-106T4-00

$14.99

13

WASHER, PLATE (35T)

90201-122H1-00

$9.49

14

NUT, SELF-LOCKING(1KH)

90185-12134-00

$12.49

15

CLIP(3YF)

90468-16191-00

$8.49

16

ROD, TIE

37S-23831-00-00

Unavailable

17

JOINT, UNIVERSAL 1

37S-23841-00-00

Unavailable

18

JOINT, UNIVERSAL 2

4S2-23845-00-00

Unavailable

19

NUT 1

1P0-F3833-00-00

Unavailable

20

NUT 2

37S-23834-00-00

Unavailable

21

ROD, TIE

37S-23831-00-00

Unavailable

22

JOINT, UNIVERSAL 1

37S-23841-00-00

Unavailable

23

JOINT, UNIVERSAL 2

4S2-23845-00-00

Unavailable

24

NUT 1

1P0-F3833-00-00

Unavailable

25

NUT 2

37S-23834-00-00

Unavailable

26

NUT, CASTLE

90171-12001-00

Unavailable

27

PIN, COTTER

91490-25020-00

Unavailable
