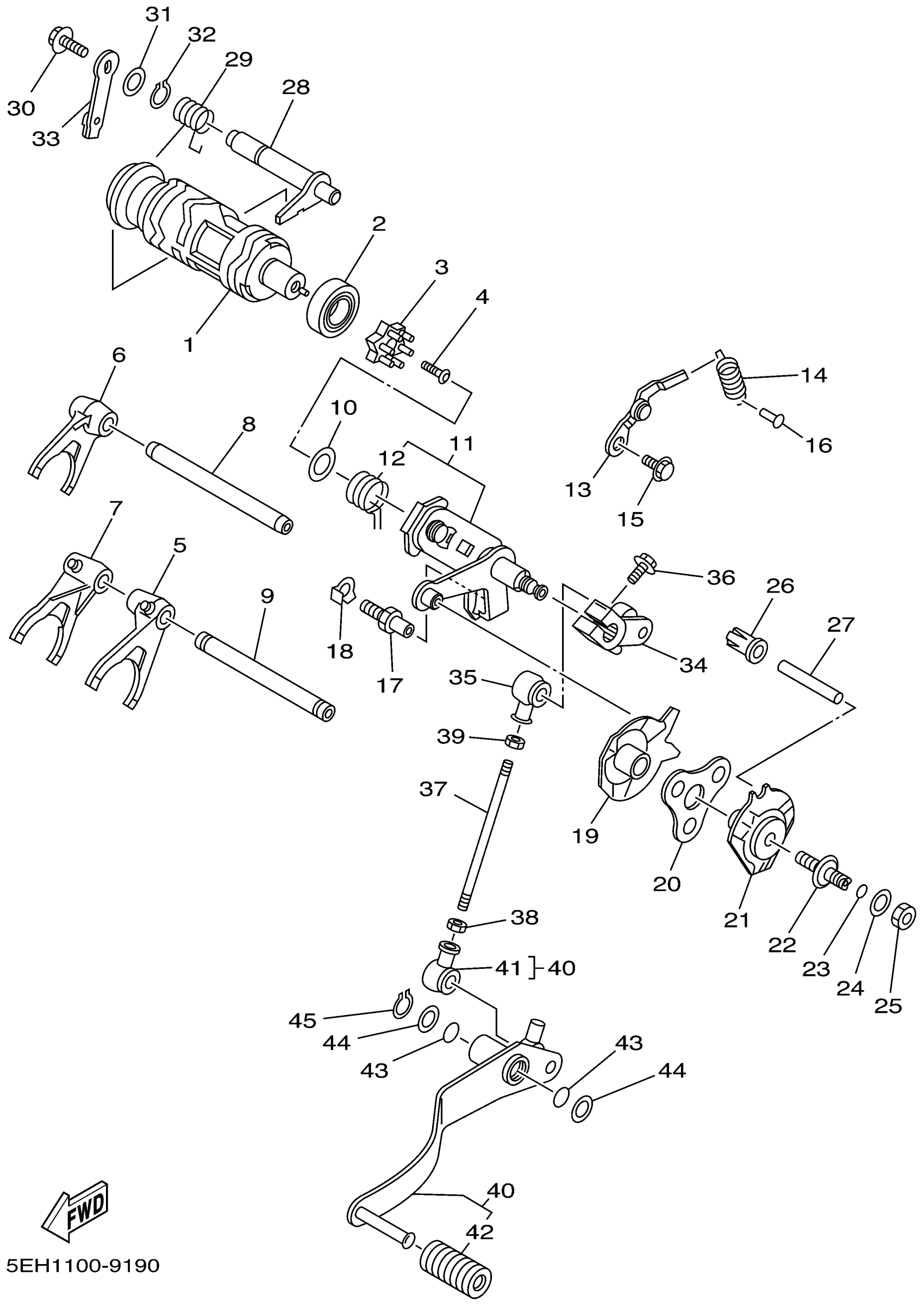

Yamaha YFM400FP (BIG BEAR 400 4WD_REAL TREE XTRA) 5FUA 2002 SHIFT CAM FORK Diagram

#

Description

Price

1

SHIFT CAM ASSY

5EH-18540-00-00

Unavailable

2

BEARING(2JN)

93306-00315-00

$33.99

3

SEGMENT

4KB-18185-00-00

Unavailable

4

. SCREW, COUNTERSUNK

90151-06017-00

Unavailable

5

FORK, SHIFT 1

4KB-18511-00-00

Unavailable

6

FORK, SHIFT 2

5EH-18512-00-00

Unavailable

7

FORK, SHIFT 3

4KB-18513-00-00

Unavailable

8

BAR, SHIFT FORK GUIDE 2

4GB-18535-00-00

Unavailable

9

BAR, SHIFT FORK GUIDE 1

4KB-18531-01-00

Unavailable

10

WASHER, PLATE(52G)

90201-144J2-00

$8.49

11

SHIFT SHAFT ASSY

4KB-18101-00-00

Unavailable

12

SPRING, TORSION(1UY)

90508-32711-00

Unavailable

13

STOPPER LEVER ASSY

4KB-18140-00-00

Unavailable

14

SPRING, TENSION(4KB)

90506-12489-00

$7.49

15

BOLT

90109-06190-00

$4.72

16

HOOK, SPRING

132-16346-00-00

Unavailable

17

STOPPER, SCREW

5VK-18127-00-00

Unavailable

18

WASHER, LOCK(1UY)

90215-08260-00

Unavailable

19

GUIDE SHIFT COMP. 2

4KB-18106-00-00

Unavailable

20

HOLDER, PAWL

4KB-18181-00-00

Unavailable

21

SHIFT GUIDE COMP.

4KB-18104-00-00

Unavailable

22

STOPPER, SCREW

4KB-18127-00-00

Unavailable

23

O-RING (21V)

93210-07590-00

Unavailable

24

WASHER (1T1)

90201-08649-00

Unavailable

25

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

26

CLIP

4KB-18424-00-00

Unavailable

27

PIN, DOWEL (722)

93608-50149-00

Unavailable

28

SHIFTER BRKT. ASSY

4KB-18380-00-00

Unavailable

29

SPRING, TORSION(4KB)

90508-186A5-00

Unavailable

30

BOLT, FLANGE

95817-06012-00

Unavailable

31

WASHER PLATE 164185720000

90201-12166-00

Unavailable

32

CIRCLIP(10Y)

99009-12400-00

Unavailable

33

BRACKET, SHIFTER

4KB-18431-00-00

Unavailable

34

ARM, SHIFT

4KB-18112-01-00

Unavailable

35

COVER, DUST

2H9-18154-00-00

Unavailable

36

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

Unavailable

37

ROD, SHIFT

36Y-18115-00-00

Unavailable

38

NUT (2H9)

90170-06228-00

Unavailable

39

NUT(650)

95380-06700-00

Unavailable

40

SHIFT PEDAL ASSY

4KB-18110-20-00

Unavailable

41

COVER, DUST

2H9-18154-00-00

Unavailable

42

COVER, CHANGE PEDAL

132-18113-01-00

Unavailable

43

O-RING (22U)

93210-15566-00

Unavailable

44

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

45

CIRCLIP (122)

93430-12008-00

Unavailable
