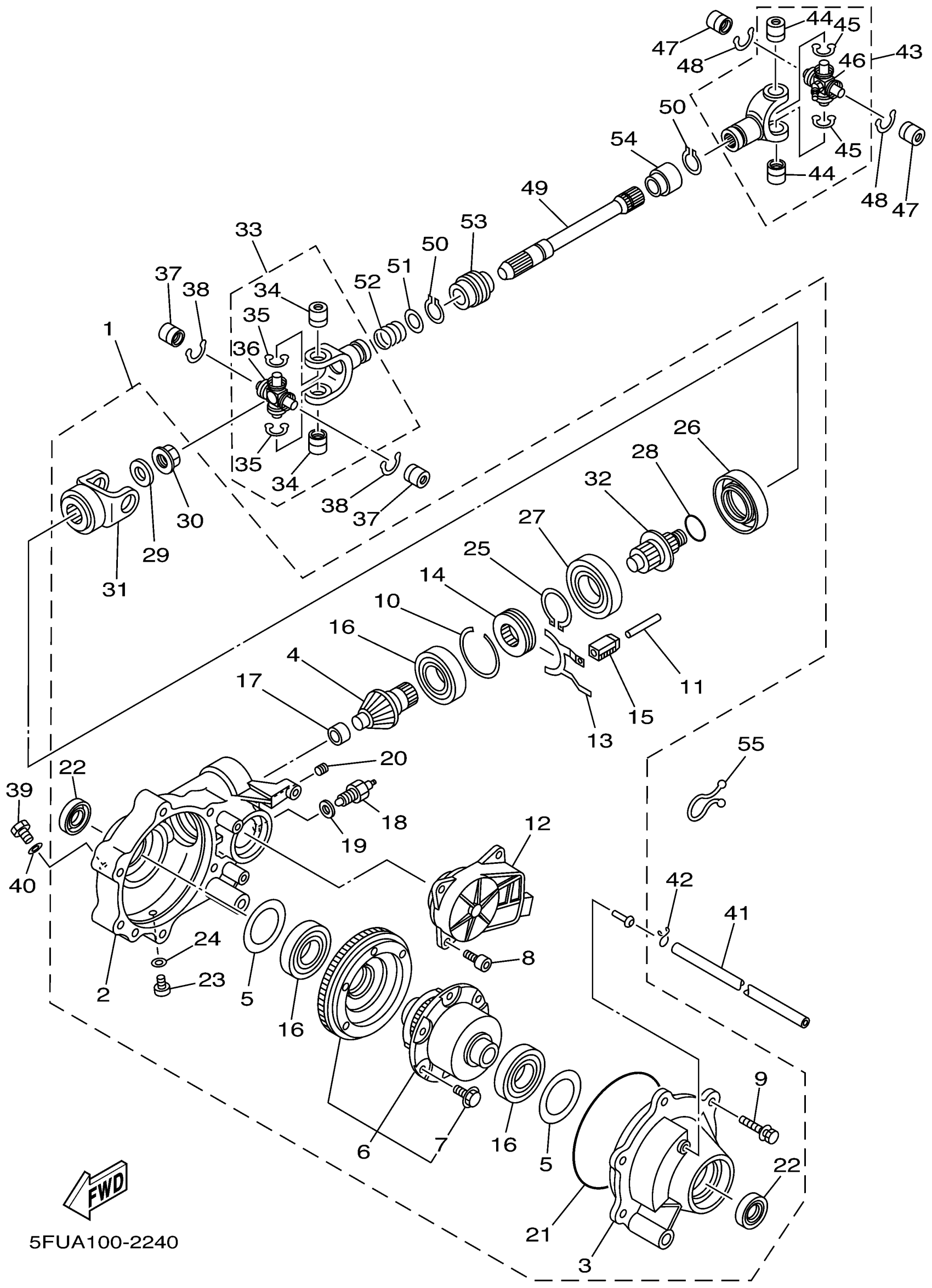

Yamaha YFM400FP (BIG BEAR 400 4WD_REAL TREE XTRA) 5FUA 2002 FRONT DIFFERENTIAL Diagram

#

Description
Price

1

FRONT AXLE GEAR CASE COMP.

5FU-46160-03-00

Unavailable

2

HOUSING, SHAFT DRIVE 2

5GH-46161-01-00

Unavailable

3

HOUSING, BEARING 2

5GH-46162-01-00

$184.99

4

. PINION, DRIVE 2

5GH-46141-00-00

Unavailable

5

SHIM, THRUST

4WV-46119-01-00

$6.99

5

SHIM, THRUST

4WV-46119-11-00

$13.49

5

SHIM, THRUST

4WV-46119-21-00

$6.99

5

SHIM, THRUST

4WV-46119-31-00

$6.99

5

SHIM, THRUST

4WV-46119-41-00

$6.99

5

SHIM, THRUST

4WV-46119-51-00

Unavailable

5

. SHIM, THRUST (15T)

4WV-46119-60-00

Unavailable

6

LIMITED SLIP DIFF. ASSY

99999-03389-00

Unavailable

7

BOLT 1

4WV-46155-00-00

$5.49

8

BOLT, SOCKET

91317-08020-00

$8.49

9

BOLT 3

4WV-46159-00-00

$3.12

10

RING,HOLE SNAP 2

4WV-46143-00-00

Unavailable

11

SHAFT, SHIFTER

5GH-18318-00-00

Unavailable

12

SERVO MOTOR COMP

5GH-4616A-02-00

Unavailable

13

FORK, SHIFT 4

5GH-18514-01-00

Unavailable

14

CLUTCH,DRIVEN

4WV-46441-00-00

Unavailable

15

SHAFT 2

5GH-18319-00-00

Unavailable

16

BEARING 2

4WV-46165-00-00

Unavailable

17

BEARING 4

4WV-46167-00-00

Unavailable

18

NEUTRAL SWITCH ASSY

3GD-82540-11-00

Unavailable

19

GASKET 1

4WV-46132-00-00

Unavailable

20

BOLT, SET

90113-08004-00

Unavailable

21

O-RING

93211-40040-00

Unavailable

22

SEAL,OIL 1

3B4-46163-00-00

Unavailable

23

PLUG, STRIGHT SCREW(5GH1)

90340-10001-00

Unavailable

24

GASKET

90430-10003-00

Unavailable

25

CIRCLIP

93450-71142-00

Unavailable

26

SEAL,OIL 1

5TE-46163-00-00

Unavailable

27

BEARING

93316-00801-00

Unavailable

28

O RING

5FU-46134-00-00

Unavailable

29

WASHER, PLATE (1J7)

90201-14633-00

Unavailable

30

NUT 1

4WV-46145-00-00

Unavailable

31

YOKE, JOINT 2

5FU-46146-00-00

Unavailable

32

. GEAR, DRIVE PINION

5FU-46121-00-00

Unavailable

33

CROSS JOINT COMP. 3

5FU-46108-00-00

Unavailable

34

BEARING

93399-99948-00

Unavailable

35

CIRCLIP (4X7)

93440-20088-00

Unavailable

36

SPIDER

5GT-46187-00-00

Unavailable

37

BEARING

93399-99948-00

Unavailable

38

CIRCLIP (4X7)

93440-20088-00

Unavailable

39

PLUG, STRAIGHT(2E9)

90340-14029-00

Unavailable

40

GASKET

214-11198-01-00

Unavailable

41

HOSE (L900)

90445-078C4-00

Unavailable

42

CLIP

90467-06016-00

Unavailable

43

CROSS JOINT COMP. 3

5FU-46108-00-00

Unavailable

44

BEARING

93399-99948-00

Unavailable

45

CIRCLIP (4X7)

93440-20088-00

Unavailable

46

SPIDER

5GT-46187-00-00

Unavailable

47

BEARING

93399-99948-00

Unavailable

48

CIRCLIP (4X7)

93440-20088-00

Unavailable

49

SHAFT, DRIVE 2

5FU-G6173-10-00

Unavailable

50

CIRCLIP(1EY)

99009-19400-00

Unavailable

51

WASHER PLATE 132172160000

90201-20266-00

Unavailable

52

SPRING, COMPRESSION

90501-235L9-00

Unavailable

53

SEAL 1

5GT-46136-00-00

Unavailable

54

SEAL 2

5GT-46137-00-00

Unavailable

55

CLAMP

90464-14800-00

Unavailable
