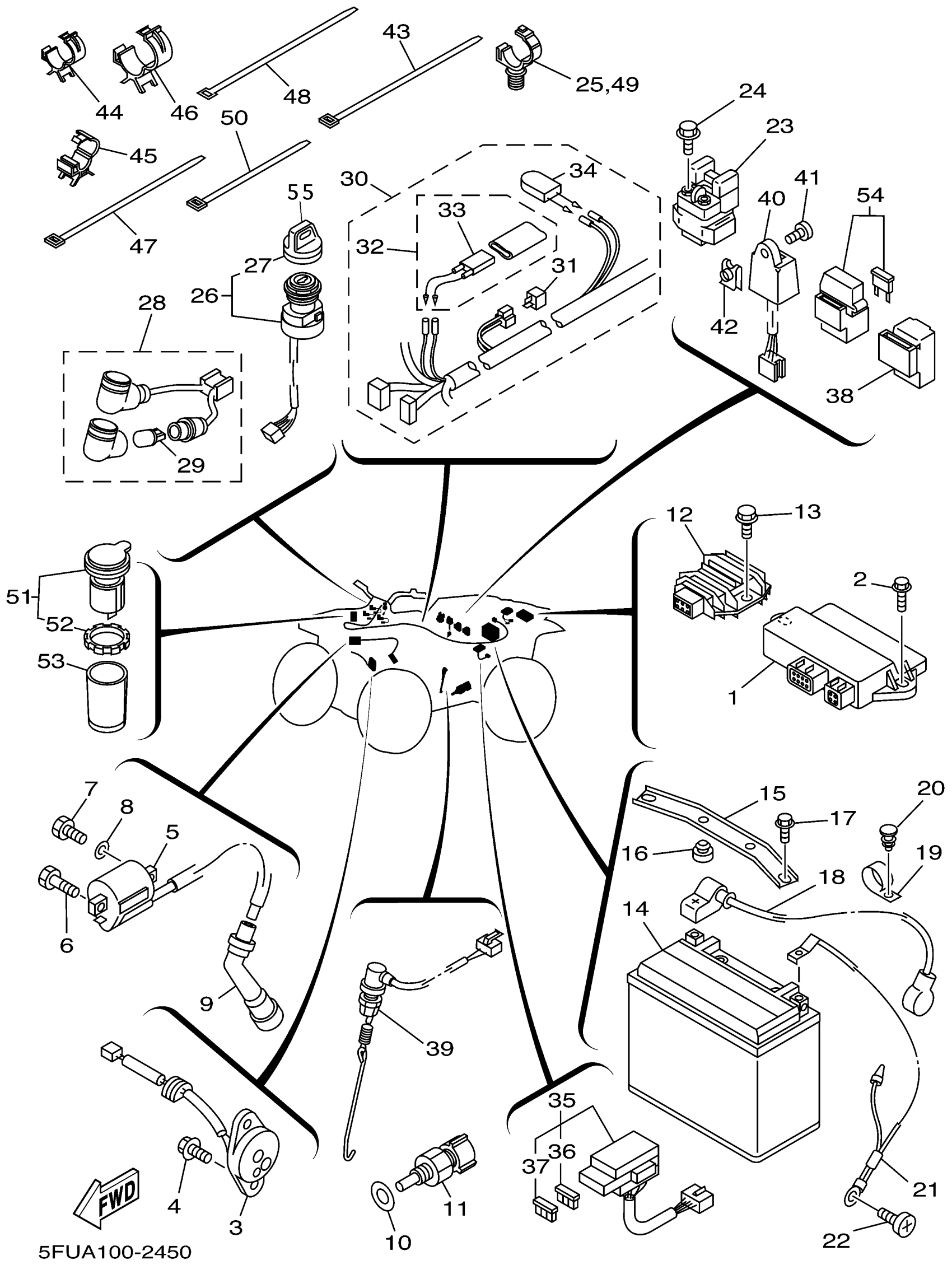

Yamaha YFM400FP (BIG BEAR 400 4WD_REAL TREE XTRA) 5FUA 2002 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5FU-85540-20-00

Unavailable

2

BOLT, FLANGE

95817-06020-00

$3.81

3

NEUTRAL SWITCH ASSY

4KB-82540-01-00

$128.99

4

BOLT, WITH WASHER

90119-06242-00

$7.49

5

IGNITION COIL ASSY

5FU-82310-03-00

$42.99

6

BOLT

90109-06865-00

Unavailable

7

BOLT, HEXAGON

97017-06020-00

$4.06

8

WASHER(6TA)

92907-06600-00

$2.72

9

PLUG CAP ASSY

4VW-82370-00-00

$69.99

10

WASHER, PLATE 3412175700

90201-12172-00

$3.93

11

THERMO UNIT

4GB-83591-10-00

$180.99

12

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$261.99

13

BOLT, FLANGE

95817-06020-00

$3.81

14

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

15

BRACKET, BATTERY

5FU-H2128-01-00

Unavailable

16

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

17

BOLT, FLANGE

95817-06020-00

$3.81

18

WIRE, PLUS LEAD

5FU-82115-00-00

Unavailable

19

CLAMP

90464-12801-00

Unavailable

20

PLUG

90338-05829-00

Unavailable

21

WIRE, MINUS LEAD

5FU-82116-00-00

Unavailable

22

SCREW, TAPPING

97702-60416-00

Unavailable

23

STARTER RELAY ASSY (RC19-015)

4SV-81940-12-00

Unavailable

24

BOLT, FLANGE

95022-06008-00

Unavailable

25

CLAMP

90464-12830-00

Unavailable

26

MAIN SWITCH ASSY

4SH-82510-01-00

Unavailable

27

CAP, KEY

3HN-82579-00-00

Unavailable

28

PILOT LIGHT ASSY

5FU-83530-00-00

Unavailable

29

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

30

WIRE HARNESS ASSY

5FU-82590-20-00

Unavailable

31

DIODE ASSY

3WP-81980-00-00

Unavailable

32

CIRCUIT BREAKER ASSY

5GT-82180-00-00

Unavailable

33

THERMO SWITCH ASSY

4GB-82560-00-00

Unavailable

34

THERMO SWITCH ASSY

5FU-82560-10-00

Unavailable

35

FUSE BOX ASSY

5FU-82170-00-00

Unavailable

36

FUSE (10A)

42X-82151-00-00

Unavailable

37

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

38

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

39

STOP SWITCH ASSY

5FU-82530-01-00

Unavailable

40

MOTOR CONTROL UNIT ASSY

4SH-86510-10-00

Unavailable

41

SCREW, BINDING

98907-06016-00

Unavailable

42

NUT, SPRING(4ES)

90183-06069-00

Unavailable

43

CLAMP(JN6)

90464-40825-00

Unavailable

44

CLAMP

90464-20835-00

Unavailable

45

CLAMP

90464-10842-00

Unavailable

46

CLAMP

90464-25843-00

Unavailable

47

CLAMP

90464-32800-00

Unavailable

48

CLAMP

90464-48800-00

Unavailable

49

CLAMP

90464-12830-00

Unavailable

50

CLAMP(JN6)

90464-31827-00

Unavailable

51

TERMINAL ASSY

5FU-H1920-10-00

Unavailable

52

NUT

5FU-H191B-10-00

Unavailable

53

COVER,CONNECTER

5FU-H2599-01-00

Unavailable

54

FUSE HOLDER ASSY

5FU-82150-00-00

Unavailable

55

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

55

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
