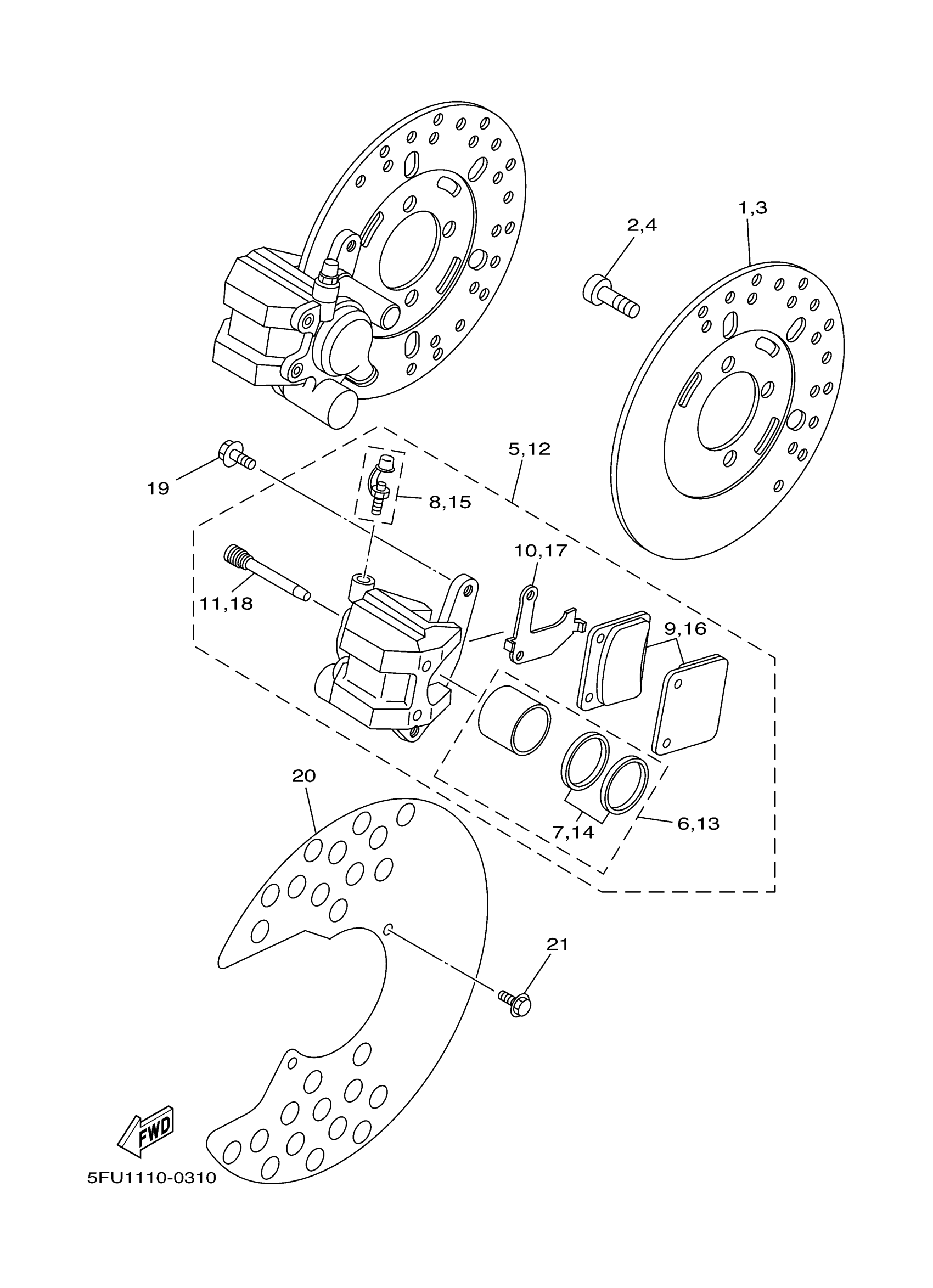

Yamaha YFM400FN (BIG BEAR 4WD_REALTREE X-TRA) 5FU6 2001 FRONT BRAKE Diagram

#

Description
Price

1

DISC, BRAKE

4KB-2582T-00-00

$254.99

2

BOLT

90109-08087-00

$8.49

3

DISC, BRAKE

4KB-2582T-00-00

$254.99

4

BOLT

90109-08087-00

$8.49

5

CALIPER ASSY (LEFT)

3GD-2580T-01-00

$298.99

6

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

7

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

8

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

9

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

10

SHIM, CALIPER

3GD-25827-00-00

$10.99

11

PIN, PAD

3GD-25933-00-00

$28.99

12

CALIPER ASSY (RIGHT)

3GD-2580U-01-00

$298.99

13

PISTON ASSY, CALIPER

3GD-W0057-00-00

$65.99

14

CALIPER SEAL KIT

3GD-W0047-00-00

$15.49

15

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

16

BRAKE PAD KIT

3GD-W0045-01-00

$35.99

17

SHIM, CALIPER

3GD-25828-00-00

Unavailable

18

PIN, PAD

3GD-25933-00-00

$28.99

19

BOLT, FLANGE

90105-08161-00

Unavailable

20

RING, WHEEL 1 (LEFT)

5FU-F514A-00-00

Unavailable

21

BOLT, FLANGE

95817-06012-00

Unavailable
