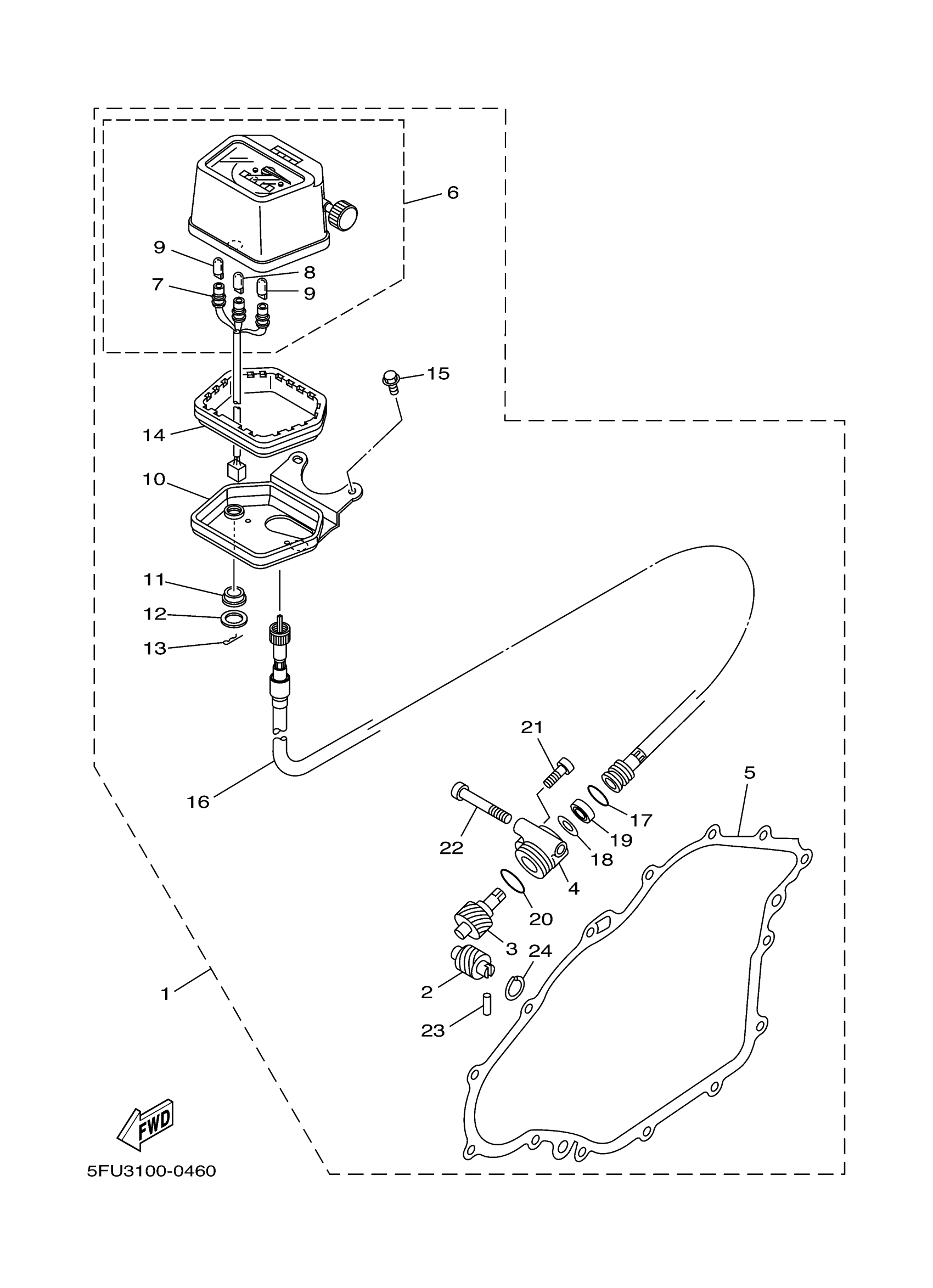

Yamaha YFM400FN (BIG BEAR 4WD_REALTREE X-TRA) 5FU6 2001 ALTERNATE METER Diagram

#

Description
Price

1

SPEEDOMETER KIT

5FU-W0081-00-00

Unavailable

2

GEAR, DRIVE

59V-17831-00-00

Unavailable

3

GEAR, DRIVEN

59V-17841-00-00

Unavailable

4

HOUSING, TACHOMETER GEAR

4KB-17811-00-00

Unavailable

5

GASKET, CRANKCASE COVER 3

4KB-15462-00-00

$23.99

6

SPEEDOMETER ASSY

4SH-83570-01-00

Unavailable

7

SOCKET, METER

4SH-83536-00-00

Unavailable

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

9

BULB (12V-1.7W)

3GM-83517-00-00

$7.99

10

BRACKET, METER

4GB-83519-00-00

Unavailable

11

DAMPER 2

1M1-83526-01-00

$4.47

12

WASHER PLATE 829771780000

90201-05033-00

$10.49

13

CLIP (156-83525-00)

90468-10050-00

$3.05

14

DAMPER

5Y0-83513-00-00

Unavailable

15

BOLT, FLANGE

95817-06012-00

$1.43

16

SPEEDOMETER CABLE ASSY

4WV-83550-00-00

Unavailable

17

O-RING (26H)

93210-14579-00

Unavailable

18

WASHER (692)

90201-12M34-00

Unavailable

19

OIL SEAL (30X)

93102-08307-00

Unavailable

20

O-RING(59V)

93210-24253-00

Unavailable

21

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

22

SCREW, PAN

98517-06030-00

Unavailable

23

PIN, DOWEL(3HN)

93603-14240-00

Unavailable

24

CIRCLIP(59V)

93440-14155-00

Unavailable
