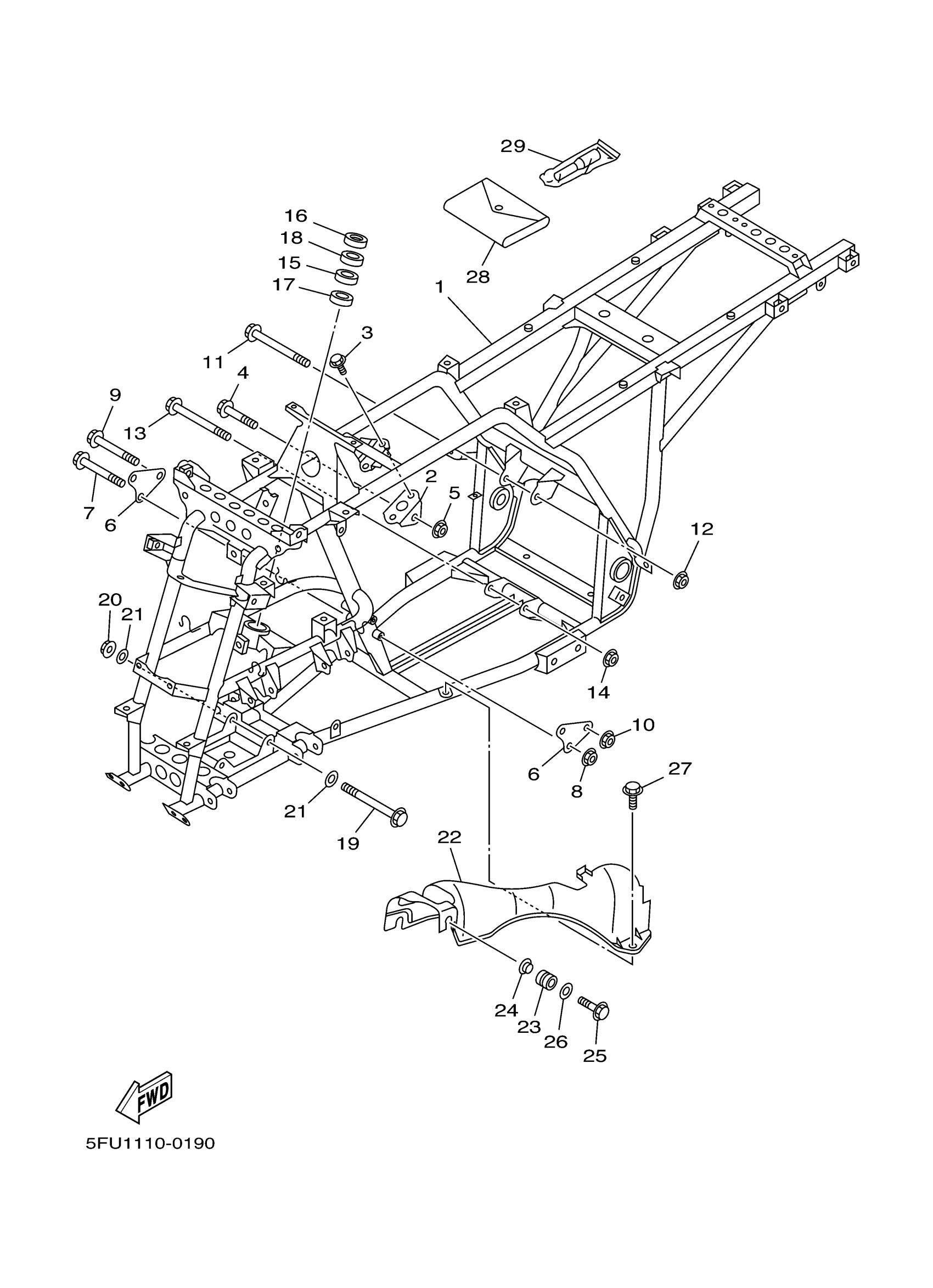

Yamaha YFM400FMC (BIG BEAR 4WD) 5FU2 2000 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5FU-F1110-00-00

Unavailable

2

STAY, ENGINE 2

5FU-F1315-01-00

Unavailable

3

BOLT, FLANGE

95817-08012-00

$5.49

4

BOLT, FLANGE

95817-08055-00

$4.21

5

NUT, SELF-LOCKING

95602-08200-00

$3.20

6

STAY, ENGINE 3

5FU-F1316-01-00

Unavailable

7

BOLT, FLANGE

9581P-08085-00

Unavailable

8

NUT, SELF-LOCKING

95602-08200-00

$3.20

9

BOLT, FLANGE

90105-10844-00

Unavailable

10

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

11

BOLT, FLANGE

90105-10843-00

$16.99

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

13

BOLT, FLANGE

90105-10843-00

$16.99

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

15

BEARING

93306-203YN-00

$11.49

16

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

17

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

18

HOLDER, BEARING

2GU-23872-00-00

Unavailable

19

. BOLT, FLANGE

90105-108A9-00

Unavailable

20

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

21

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

22

COVER, SHAFT 1

5FU-F147J-00-00

Unavailable

23

GROMMET (1E6)

90480-15058-00

Unavailable

24

COLLAR (838-84757-00)

90387-06024-00

Unavailable

25

BOLT, WASHER BASED

90105-068B0-00

Unavailable

26

WASHER, PLATE

90201-06380-00

Unavailable

27

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

28

TOOL KIT (24W-28100-00)

59V-28100-00-00

Unavailable

29

GAUGE, AIR

1NV-2811A-01-00

Unavailable
